(PIN1)RED = +VDC (XPERIENCE MODE)

(PIN2)BLACK = - TO CHASSIS GROUND

(PIN3)WHITE= + WHITE POSITION LIGHT

(PIN4)YELLOW= + AMBER POSITION LIGHT

(LOOSE CABLE)GREEN= +VDC (E-MODE)

*Cable connection for E-mode and Xperience mode:

Green Cable: Activates E-Mode.

Red Cable (DT4): Activates Xperience Mode.

Priority for both mode:

When both green and red cables are connected to the battery's positive pole, E-Mode takes priority over

Xperience Mode. Xperience Mode will not be activated.

Mode Switching:

To activate Xperience Mode, the E-Mode connection must be powered off. This can be achieved by using

an external switch to disconnect the E-Mode signal or by interrupting the power supply to the E-Mode

system. Ensure the wiring is properly configured to allow for this switching between modes.

*If you don't need E-mode then do not required to connect green cable.

Please refer to the connection diagram on page 2 for an example of how to connect 3 lights.

Part no.

270969

MANUAL

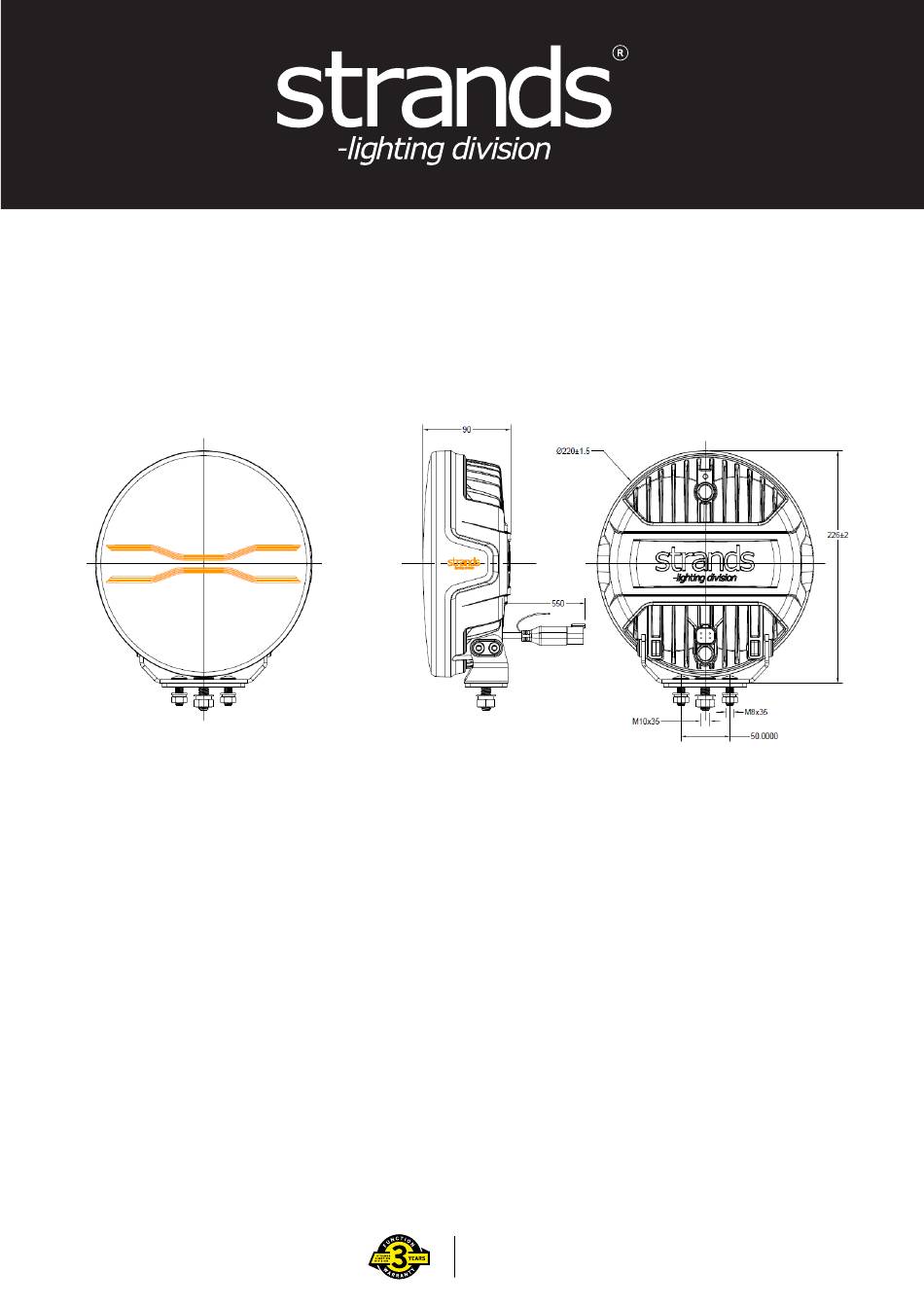

FOR9T DRAGON DRIVE 9"

www.strands.se

www.strandseurope.com

1/2

Need help?

Do you have a question about the FOR9T DRAGON DRIVE and is the answer not in the manual?

Page 1 *If you don't need E-mode then do not required to connect green cable. Please refer to the connection diagram on page 2 for an example of how to connect 3 lights. Contact us if you need support: support@strands.se or +46(0)320-450450 Part no.
Page 2 Note: The connection diagram shown is for example only. This guide focuses on connecting an external switch for a 3 X Driving lights (It can be connected with an AUX switch, CANBUS solution, high beam and position light by using strands cable kit like 270479(3x DT4) or a similar type of cable kit.) Relay Fuse...
