Summary of Contents for RedLeaf DTC10

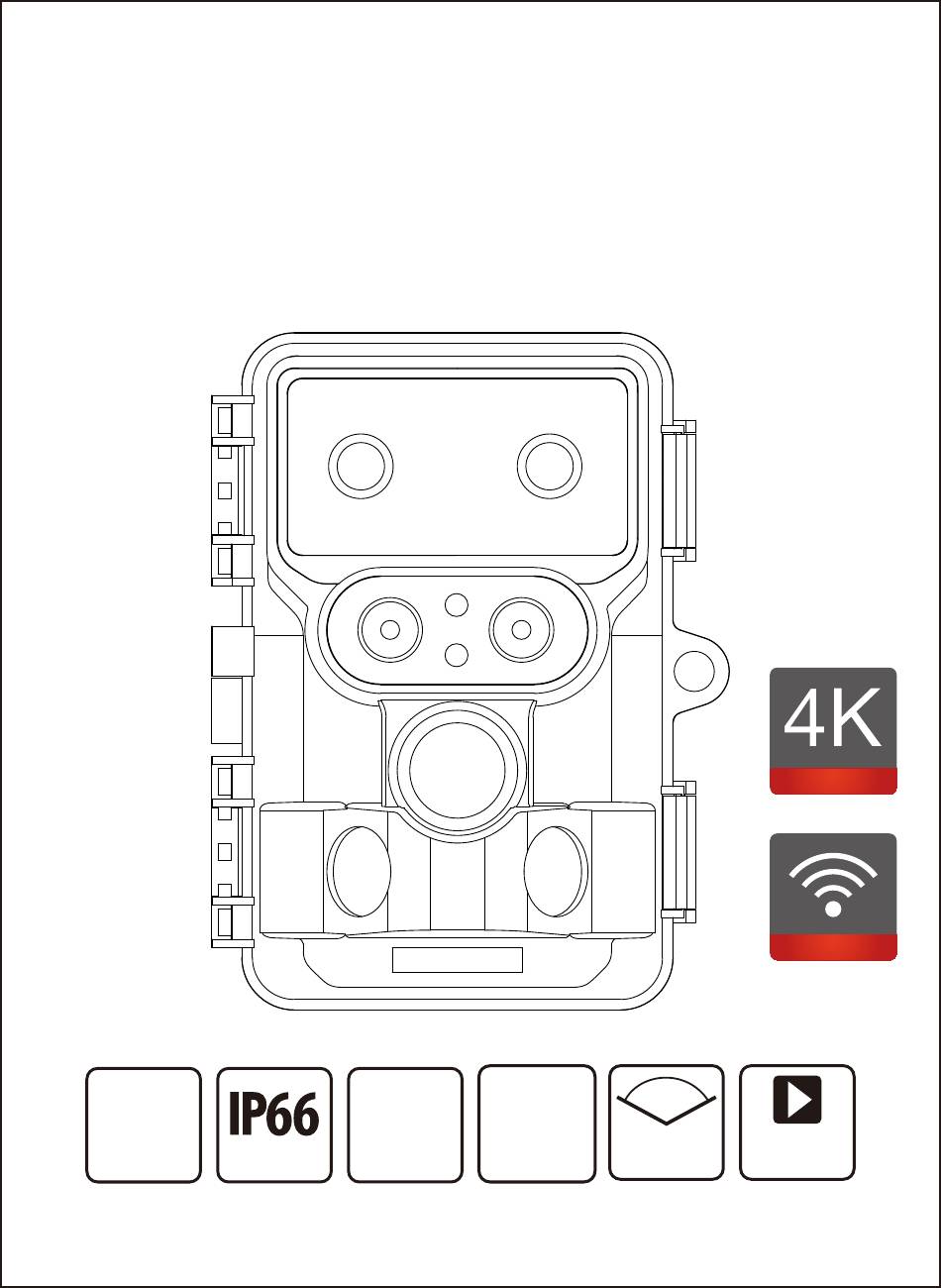

- Page 1 Instruction Manual DUAL CAMERA SYSTEM WiFi Trail Camera V ID E O CINNECTION 0.3S 2.4” 120° 120° total 4K Full HD 48 Megapixel Trigger time PIR angle Video function Waterproof IPS TFT-LCD...
-
Page 3: Contents Of Box
1. Contents of box suffocation... -
Page 5: Table Of Contents
2. Contents 1. CONTENTS OF BOX 2. CONTENTS 3. HAZARD, SAFETY AND WARNING NOTICES 4. CAMERA OVERVIEW 4.1. Front view 4.2. Inside view 5. PREPARING THE CAMERA 5.1. Opening and closing the camera 5.2. Inserting the batteries 5.3. Inserting the memory card 5.4. -
Page 6: Hazard, Safety And Warning Notices
3. Hazard, safety and warning notices... -
Page 8: Camera Overview
4. Camera Overview 4.1. Front view IR LEDs Locking bracket Daytime Lens Nighttime Lens PIR Sensor Locking bracket Side PIR Sensor... -
Page 9: Inside View
4.2. Inside view SD card slot Down/ Sensor Switch... -
Page 10: Preparing The Camera
5. Preparing the camera 5.1. Opening and closing the camera Fig. 1. Fig. 2. -
Page 11: Inserting The Batteries
5.2. Inserting the batteries... -
Page 12: Inserting The Memory Card
5.3. Inserting the memory card Please use the SD/SDHC memory card for U1 CLASS 10 or above. 5.4. External power supply... -
Page 13: Assembly With Strap
5.5. Assembly with strap 5.6. Operation graphi expression Operation(see figures below):... -
Page 14: Using The Camera
Insert U1 CLASS10 or above SD/SDHC memory card in the memory card slot before switching on the camera and select, SETUP mode to adjust settings. Format Default seting Date / Time Default seting Date / Time Format Return menu setting All data will be 2021 / 01 / 01 deleted... -
Page 15: Mode Switch
6.1. Mode switch The Trail Camera has three basic operational modes: • OFF mode: Power switch in the OFF position. • ON mode: Power switch in the ON position (LCD screen is off). • SETUP mode: Power switch at SETUP position (LCD screen is on). - Page 16 Functions of operating buttons in standby mode Below, the operating buttons are described in the recording mode with non activated menu. : Enter the state of Menu Setting. : Start the replay. MODE : Switch the photo or video mode. SHOT : Take a photo or video, or stop recording.
-
Page 17: Settings Menu
: Zoom out the photos. MODE SHOT : Zoom in the photos. Functions of operating buttons in MENU setting Below, the operating buttons are described in MENU setting. : Enter or Exit the Menu Setting. : Up key to select a different setting for the currently displayed parameter. - Page 18 • Mode : Photo , Video, Photo + Video Selects the format your camera will record in. Photo: For photos only. Video: For videos only. Photo+Video: A photo (multiple photos, if NUM PICS is set >1) followed by a video clip will be captured for each PIR trigger event. •...
- Page 19 • Night shoot mode: Auto/ Color "Automatic": In Automatic option, the camera would select the different lens according to the real condition of the brightness. In the full light condition, it would go for the 13MP sensor lens, and lower light condition would change to 2MP sensor lens.
- Page 20 • Image size : Daytime/ Nighttime Daytimes: Selects resolution for still images from 2MP to 48MP. Higher resolution produces better quality images, but creates larger files that take up more of the SD card capacity. 13MP is the recommended default for good resolution and smaller size.
- Page 21 • Default setting(Reset to factory): Cancel/OK Restores all settings to the factory defaults. • Format: Cancel/OK Deletes (erases) all files stored on a card to prepare it for reuse. Always format a card that has been previously used in other devices. Caution! Make sure you have downloaded and backed up any files you want to preserve first! Press OK to execute, press MENU to exit without formatting.
-
Page 22: Wi-Fi Connection
• WiFi SSID: 4K WIFI CAM**** You can use a combination of 10 digits and 26 letters to document the location on the photos and videos. When using several cameras this makes it easier to identify the location when viewing photos and videos. •... - Page 23 Through the mobile application, the Wi-Fi function allows you to: View, download, delete recorded photos and videos. Take photos and videos. Modify the settings. Check the remaining energy level and memory capacity. Note: • During the WiFi connection, please make sure that your smartphone bluetooth function is in the “ON”...
-
Page 24: Mounting And Positioning The Trail Camera Mounting
A. Exit the APP F. Settings B. Live image G. Photo mode C. Video mode H. Trail camera battery level D. Review picture or video I. WiFi and Bluetooth E. Release button 6.5. Mounting and positioning the trail camera mounting After you’ve set up the camera’s parameters to your personal preferences, you’re ready to take it outside and slide the power switch to “ON”. -
Page 25: Switching On The Camera
You can avoid potential false triggers due to temperature and motion disturbances in front of the camera by not aiming it at a heat source or nearby tree branches or brush (especially on windy days). 6.7. Switching ON the Camera Once you switch to the ON mode, the motion indicator LED (red) will blink for about 5 seconds. -
Page 26: Technical Specification
8. Technical specification High resolution 13MP SONY native sensor Daytime lens F=2.9mm, F/NO=3.0, FOV=80° Distortion: -1% SENSOR: 200W Nighttime lens F=4.0mm, F/NO=1.4, FOV=93° 48M:9248x5200; 36M:8000x4496; 24M:6544x3680; Image size 13M:4832x2704; 8M:3840x2160; 4M: 2704x1520; (Daytime lens) 2M: 1920x1088 Image size 4M:2704x1520; 2M: 1920x1088; 1M:1280x720 (Nighttime lens) 2.4"... - Page 27 Video size 1080P: 1920x1080 30fps; 720P: 1280x720 30fps; (Nighttime lens) 480P: 848x480 30fps; 360P: 640x368 30fps Effectiveness Daytime: 1 m-infinitive; Night time: 3 m-20 m Storage formats Photo: JPEG; Video: MPEG - 4 (H.264) Detection angle of Central sensor zone: 60°; Side sensor zone: each 30°; sensors Total sensor angle zone: 120°...
-
Page 28: Troubleshooting Tips
9. Troubleshooting tips 1) Camera won’t power on. Possible Cause Batteries not fully installed, or not installed correctly. Recommended Solution(s) Install new AA alkaline batteries. Make sure the positive (+) and negative (–) poles are lined up properly in each compartment, with (–) pole making contact with the spring. 2) Camera takes images without animals. - Page 29 Recommended Solution(s) Make sure you install all new alkaline AA batteries. Longer delays will increase battery life. (you’ll take less images and use less flash). Adjust these in the Settings Menu. 5) Camera stops taking images or won’t take images. Possible Cause The SD Card is full, in the locked position, improperly formatted, or the batteries are dead.
-
Page 30: System Information, Maintenance And Disposal
8) Forget the password of the trail camera. Recommended Solution(s) Just enter the words “OPEN” to start the camera again. 9) Forget the WiFi password. Recommended Solution(s) Default the trail camera to restores all settings to the factory defaults. And then the password is “12345678” 10) The Bluetooth couldn’t open the WiFi hotspot. -
Page 31: Disposal
10.3. Disposal... - Page 32 FCC WARNING: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
