HG981
Handheld dew point temperature and
humidity meter User Manual
High temperature, high precision, multi-function
（
）
●Please read this manual carefully before use
●The company reserves the right to interpret the specification
●Please refer to the actual product for its appearance
●No prior notice if the product technology or software upgrade
HENGKO Technology Co., LTD
Advertisement
Table of Contents
Related Manuals for HENGKO HG981
Summary of Contents for HENGKO HG981
- Page 1 ） ●Please read this manual carefully before use ●The company reserves the right to interpret the specification ●Please refer to the actual product for its appearance ●No prior notice if the product technology or software upgrade HENGKO Technology Co., LTD...
-
Page 2: Table Of Contents
HG981 Handheld dew point temp and humidity meter user manual catalogue 1. Product introduction ............3 2. Product Feature ..............3 3. Function Keys ..............4 4. Operation ................5 5. Maintenance ...............7 6. Specifications ..............8 7. Calibration steps description ..........9 8. Test software download ........... 10 9. -
Page 3: Product Introduction

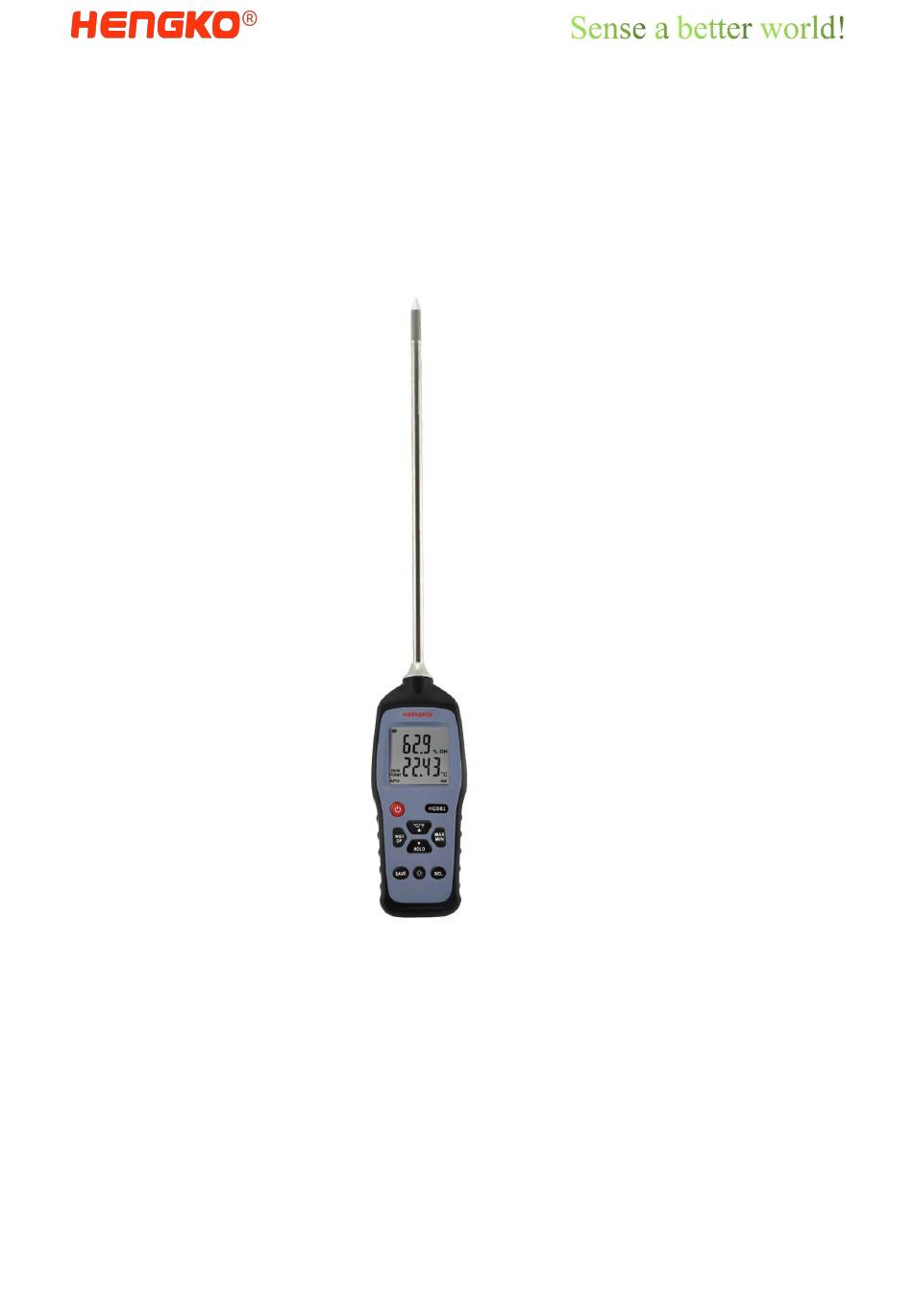

HG981 Handheld dew point temp and humidity meter user manual 1 Product introduction Thank you for purchasing our HG981 handheld multi-function digital dew point meter, which is an industrial grade, high precision temperature and humidity measurement instrument. The instrument is powered by a 9V battery. -
Page 4: Function Keys
HG981 Handheld dew point temp and humidity meter user manual Function Keys 2.Display screen 3.Power switch 4.°C and °F unit selector switch 5.Dew point temperature/wet bulb temperature /ambient temperature selection 6.Data store 7.Record button 8.Maximum and minimum button 9.Data hold button 10.Data invocation... -
Page 5: Operation
HG981 Handheld dew point temp and humidity meter user manual Operation <Start Measuring> 1） Take out the meter from protective casing, press the button in the upper left to open the instrument; 2） Keep the meter in the environment to be measured and take appropriate time to stabilize the reading;... - Page 6 HG981 Handheld dew point temp and humidity meter user manual <Data-hold> Press the HOLD button to HOLD the read value displayed, the meter stops measuring.“ ”will appear on the screen. Pressing HOLD again can return to normal working mode. <Save and invoke readings>...
-
Page 7: Maintenance
HG981 Handheld dew point temp and humidity meter user manual instrument will automatically turn off the backlight function after 2 minutes of keyless operation. When the memory is FULL or the specified number of records is reached, the meter will automatically shut down. -
Page 8: Specifications
HG981 Handheld dew point temp and humidity meter user manual Specifications Environment temperature Measurement range -30 至 120°C （-22 至 248°F）（probe only） Accuracy ±0.1 °C @25°C Resolution 0.01 °C/°F Sampling frequency 1 time per second Relative humidity Measurement range 0~100%RH ±1.5%RH（0%RH~80%RH,25℃) -
Page 9: Calibration Steps Description
HG981 Handheld dew point temp and humidity meter user manual 7 Calibration steps description 1）Connect the handheld meter to a computer using a USB cable, and open the SmartLogger software 2.1)Select the corresponding handheld meter 2.2)Click the "Options" function, 2.3)Select "Calibration Adjustment"... -
Page 10: Test Software Download
HG981 Handheld dew point temp and humidity meter user manual 8 Test software download Software download link: www.hkometer.com/download/ www.hengko.cn/download/ 9 Precautions 1.Do not touch the sensor with your hands or blow; 2.Do not expose the sensor to sunlight. 3.Do not immerse the sensor or meter in the liquid. -
Page 11: Contact Us
HG981 Handheld dew point temp and humidity meter user manual 10. Contact us HENGKO Technology Co., LTD Address: No. 51-3, Fuan West Road, Fucheng Ao Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Contact number: 0086-0755-88823250 E-mail: ka@hengko.com Website: www.hengkometer.com 11 / 11 www.hkometer.com...
