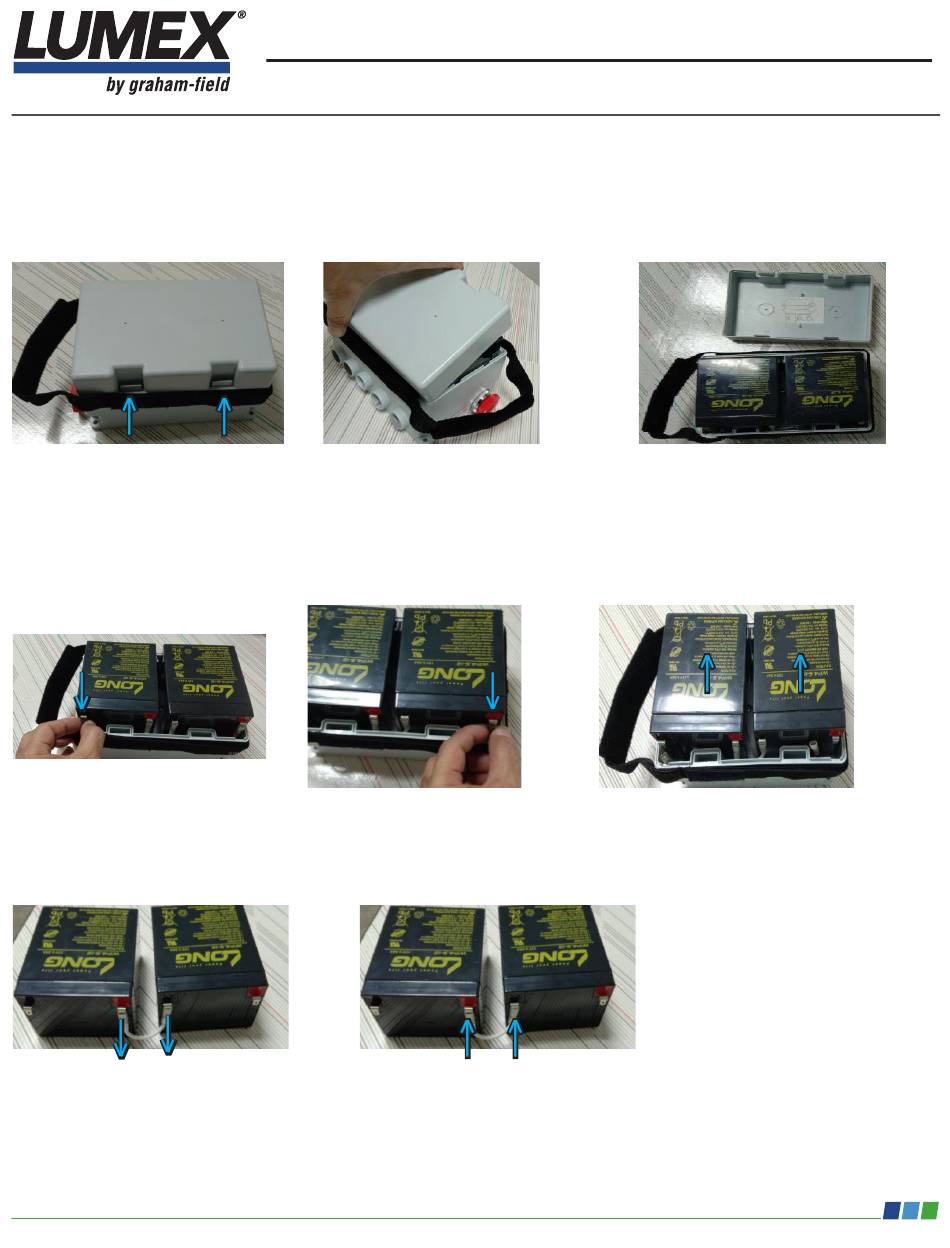

I. REPLACING THE BATTERY
1. Open cover of the control box.
Press Down Two Hooks
2. Unplug the negative (black) terminal (pull down), then unplug positive (red) terminal
(pull down). Remove the battery.
Unplug Negative Terminal
3. Replace the new battery and plug in the terminal.
Unplug Terminal from Old
Batteries (Pull Up)
LX_ GF2400064-INS-SHT-RevA24
DPL650BAT: LIFT BATTERY
REPLACEMENT INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR FUTURE USE
Open the Cover
Unplug Positive Terminal
(Red)
Replace New Batteries and Plug
In Terminal Into New Batteries
www.grahamfield.com
Remove the cover
Remove Both Batteries by Pulling
Up Both Batteries at the Same Time
1
Advertisement
Summary of Contents for Lumex DPL650BAT
- Page 1 DPL650BAT: LIFT BATTERY REPLACEMENT INSTRUCTIONS SAVE THESE INSTRUCTIONS FOR FUTURE USE I. REPLACING THE BATTERY 1. Open cover of the control box. Press Down Two Hooks Open the Cover Remove the cover 2. Unplug the negative (black) terminal (pull down), then unplug positive (red) terminal (pull down).
- Page 2 4. Replace the two new batteries into the control box. Plug in positive and negative terminal. Close the cover of the control box. Place new batteries into Close the cover of the control box. control box. Plug in both positive and negative terminals.
- Page 3 2. Turn the VOM meter to DC voltage until the readable voltage positioning excess is 27~28V. (When the battery is fully charged, the voltage should not exceed 28V.) 3. Test the battery by using the VOM meter. (Red cable is positive terminal and black cable is negative terminal) →...
- Page 4 © 2005, GF Health Products, Inc. All Rights Reserved. Information contained herein is subject to change without notice. Lumex is a registered trademark of GF Health Products, Inc. The most current and complete product information can be found on our website.
