SAFECONTROL Touch-50-A7 Installation Manual

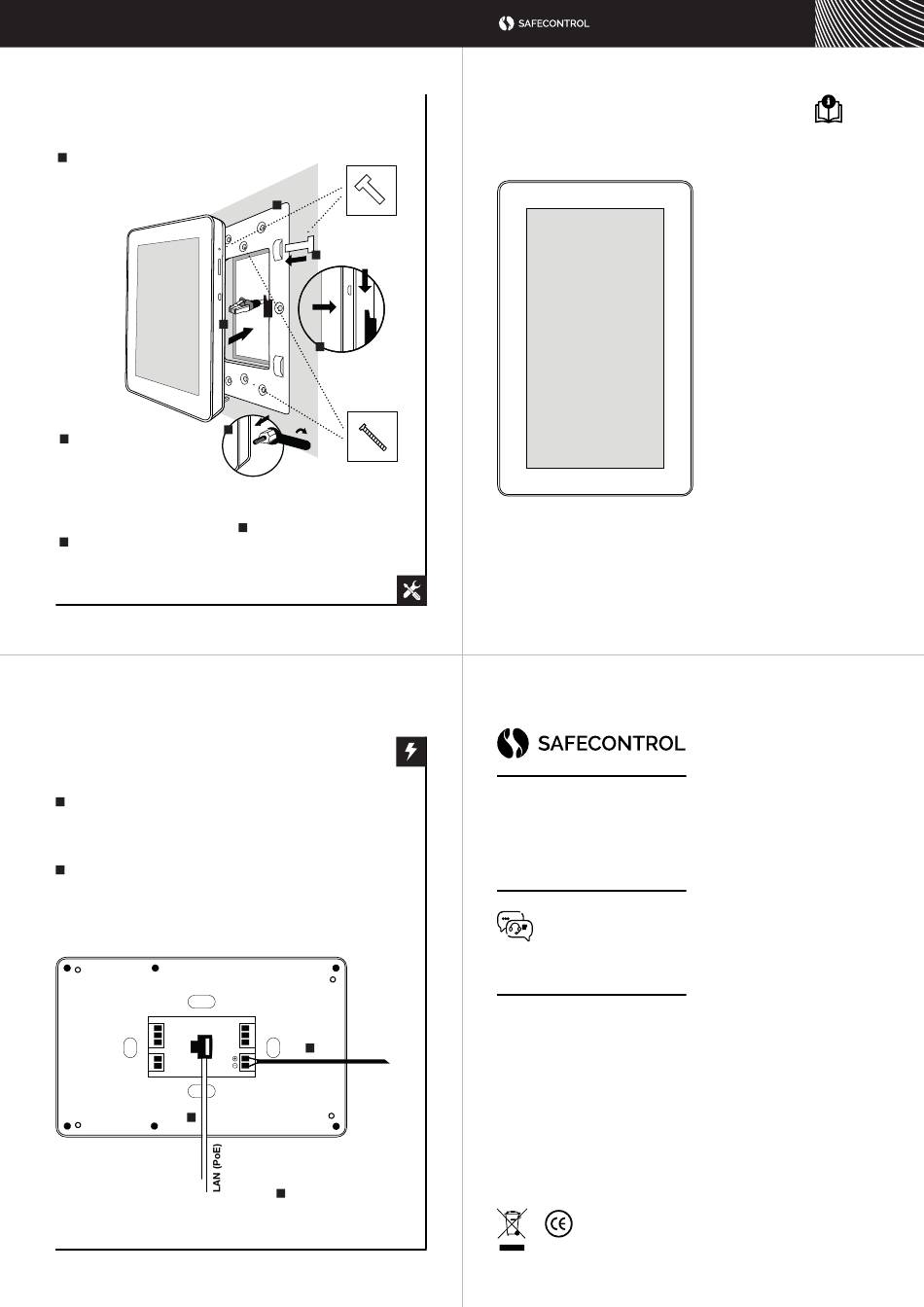

Mounting
Screw the metal frame to the
1
installation hole. The panel can be
installed in a vertical or horizontal
position.
2
4
2
Connect the data cable
and power supply according
to the wiring diagram below.
Place the touch panel in the
holder.
3
Secure the panel against
unintentional removal with
the locking stops.
Connection
1
Connect the data cable.
Power supply can be done via a data cable using
PoE 802.3 af technology.
2
If PoE technology is not available, the touch panel
can be powered using the included adapter.
Connect the 12V DC supply voltage to the terminals
marked + and -.
1
2x
1
3
2
4x
1
2x
4
If necessary, anchor
the position of the panel
using the supplied spacer
screws.
2
12V DC
3
Or via Wi-Fi
interface.
Installation guide
Touch-50-A7
SAFECONTROL s. r. o.
Vaníčkova 315/7
169 00 Praha 6
IČO: 02084287
DIČ: CZ02084287
support@safecontrol.cz
www.safecontrol.cz
Information for users on the disposal of electrical and electronic equipment
(corporate and enterprise use)
For proper disposal of electrical and electronic equipment, request detailed
information from your dealer or suppliers.
Information for users on the disposal of electrical and electronic equipment
in other countries outside the European Union
The below symbol is only valid in the countries of the European Union. For proper
disposal of electrical and For detailed information, contact your local authorities
or equipment retailer.
Made in Czech Republic
