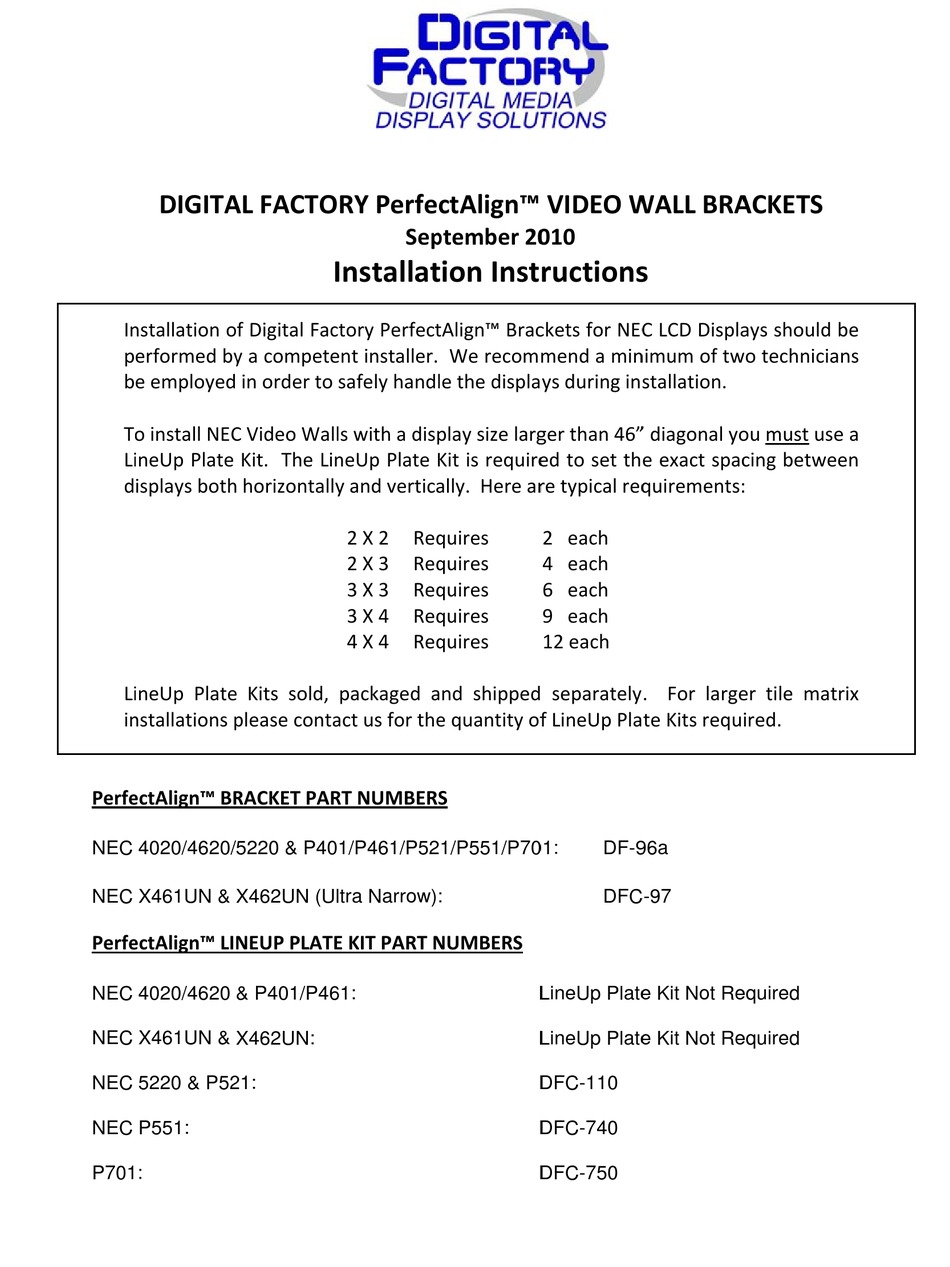

- Page 1 DIGITA AL FACTO RY Perfec ctAlign™ VIDEO W WALL BRA ACKETS ptember 20 010 Installat tion Inst ructions s nstallation o f Digital Fac tory Perfect tAlign™ Brac ckets for NEC C LCD Displa ays should b be erformed by y a compete ent installer. We recomm mend a min nimum of tw wo technician ns e employed in order to safely handl le the displa ys during ins stallation. o install NEC C Video Wall ls with a disp...
- Page 2 PerfectAlign™ Video Wall Brackets will not work with any other model or brand of Display. You must select the correct part number for the NEC display used – brackets cannot be mixed or interchanged. PerfectAlign™ Video Wall Brackets are intended for landscape use only. Portrait orientation is available by Special Order. Landscape and Portrait brackets cannot be mixed or interchanged. WALL OR LOAD BEARING STRUCTURE The PerfectAlign™ system is designed to perform best with a supporting structure that is plumb and straight. Always check the wall BEFORE mounting PerfectAlign™ using a carpenter’s level or other sighting device. If the wall is not plumb and straight you have two choices – either fix the wall or install a straight mounting surface utilizing MDF. If using MDF, shim and plumb to level and bolt to the wall using industry standard techniques to insure a safe mounting surface for PerfectAlign™. Bottom line, if your wall is not straight, your Video Wall will not be straight either. DIGITAL FACTORY FLYBEAM (Aircraft Cable, Pole, Mobile or Free Standing Video Walls) Digital Factory’s FLYBEAM system permits a Tile Matrix display to be flown, suspended from poles, mounted on I beams & mobile tracks as well as free standing installations. Please contact us directly for additional information on this custom ordered product. VIDEO WALL SHEAR WEIGHT The PerfectAlign™ Bracket has been designed to fully support the weight of your Display when properly installed on a load bearing wall or structure. The SHEAR WEIGHT of the entire VideoWall is determined by multiplying the weight of each display and bracket by a factor of four (4). Please check your local codes for specific load bearing requirements in your locality. The average weight for a PerfectAlign™ Bracket is 25 lbs. which includes all mounting hardware. ...
- Page 3 PerfectAlign™ INSTALLATION NOTES WEIGHT CONSIDERATIONS: A 2x2 Video Wall consisting of four (4) 4620 Displays with four (4) PerfectAlign™ Brackets weighs 420 lbs. (105 x 4). The SHEAR WEIGHT of the four (4) Mounted Displays is therefore 4X the weight of the mounted Displays. In this case, the SHEAR WEIGHT is 1,680 lbs. The wall or load bearing structure AND the fasteners used MUST be capable of supporting a minimum of 1,680 lbs. Please check local code requirements. The Installer is responsible for selecting, providing and installing the appropriate fastener for mounting PerfectAlign™ Brackets to the wall or load bearing structure. Digital Factory cannot be responsible for any damage or injury caused by faulty installation or the use of inappropriate fasteners. For best results, Digital Factory PerfectAlign™ brackets must be mounted on a plumb and straight wall. Your Video Wall will not be in alignment if there are any wall imperfections (low or high spots – wavy wall, etc.). If your wall is not plumb and straight FIX it before attempting to install Digital Factory PerfectAlign™. If unable to fix the existing wall, you can provide a plumb and straight mounting surface by using a sheet of ¾” MDF (available at Home Depot, Lowe’s, etc.). Cut the MDF to conform to the backs of the PerfectAlign™ brackets. Install using shims and appropriate fasteners plumb and straight over the bad wall. Then, install all PerfectAlign™ brackets through the MDF and into the existing wall using appropriate fasteners. ELECTRICAL AND SIGNAL OUTLETS Digital Factory PerfectAlign™ Brackets have sufficient openings and space to permit installation of outlet box(s) & signal routing. Safe installation and positioning of electrical outlet(s) and signal routing on the wall or load bearing surface is the responsibility of the installer. The preferred location for signal and power is centered at each display location. PerfectAlign™ INSTALLATION 1. Remove PerfectAlign™ brackets from the box. Unwrap and remove from bag. Be careful not to misplace mounting screws (PMF’s) or the included pocket level. ...
- Page 4 0” or 46” dis splays. Brea ak off Tab Se ecure serrati ons when using 40” displays. IMPORTA ANT INSTALLA ATION NOTE E: If installin ng NEC Displ ays larger th han 46” Diag gonal using DF‐96a Brac ckets you MUST hav ve the corre ct LineUp Pl ate Kit for th he specific s ize display. You CANNOT use the spac cers that cam me in the Bra acket Box. S See the note e on the first t ...
- Page 5 . Start with h one bracke et and moun t on the wal ll using the a appropriate fastener. Use a leve el (included) ) to insure th he PerfectAl ign™ Bracke et is plumb v vertically & horizonta ally. Start with h the bracket t which will hold the dis play positio ned in the lo ower left portion of f the Tile Ma atrix. . Install the e second Per rfectAlign™ B Bracket on t the wall on t top of the fir rst using a ...
- Page 6 Note: For the e last Perfect tAlign™ brac cket you will need to mo ount both Ve ertical & Horizontal sp pacer bracke ts first. The final Perfec ct Align brack ket should m mount easily y nto slots on t the right and d top. If the last bracket t is hard to li ne up, loose en mounting g crews on the e previously installed br ackets. Onc ce the last br racket has sl lipped into osition, re‐t ighten all fas steners and check level. . MPORTANT NOTE: LEAV VE BOTH HO RIZONTAL A AND VERTICA...
- Page 7 NEC X461 1/2 UN INSTA ALLATION N OTE: If installin ng NEC X461 1/2 UN displa ays using DF FC‐97 bracke ets place ne oprene bridging m material (sup pplied only w with DFC‐97 brackets in 6’ rolls) on t the inner edge of e ach display. Peel off the e paper cove ering the adh hesive to att ach. This is an option nal step, but is highly rec commended in order to completely seal air gaps s (mullions ) between d isplays. Sigh ht tolerance es are critica l due to the ...
- Page 8 W FEATURE E! Micro o Adjustmen nt Lock Dow wn Handles h have been ad dded to all P PerfectAlign Brackets manu ufactured af ter Septemb ber 1, 2010. Four “Lock Down ns” are prese ent on each PerfectAlign n Bracket. Th his new feat ture permits s the in nstaller to fin nely tune th e display on n the mount IF NECESSA RY to adjust for slight moun nting wall im mperfections s or minor al ignment issu ues. Due to the very fin ne tolerances s ...
- Page 9 Note: For access to a particular display for servicing please note the location of the display. If the display is located on the top of the Video Wall, remove it by lifting up and out. If the display is located below another Display, the top Display(s) must be removed first. * * * Thank you for purchasing a Digital Factory PerfectAlign™ Tiled Matrix Video Wall System! We are very interested in your feedback and installation success. If you have any suggestions, criticisms or any information that might help us improve our product and make your life easier, please do not hesitate to let us know. We would also love to see pictures of your installation and encourage you to email them to us. We will return the favor with a small gift as a token of our appreciation. Be sure to include your shipping address. Please send to: feedback@digitalfactory.com DIGITAL FACTORY A Division of West‐Mark 441 Business Park Way Atwater, CA 95301 Sales and Technical Support: (661).242.6995 Email: support@digitalfactory.com PerfectAlign ™ is a registered trademark of Digital Factory. ©2010 Digital Factory All Rights Reserved PLEASE READ OUR LIMITED WARRANTY AND RETURN POLICY ATTACHED TO YOUR SHIPPING DOCUMENT Page 9 of 9...
