Summary of Contents for Equator GD 075

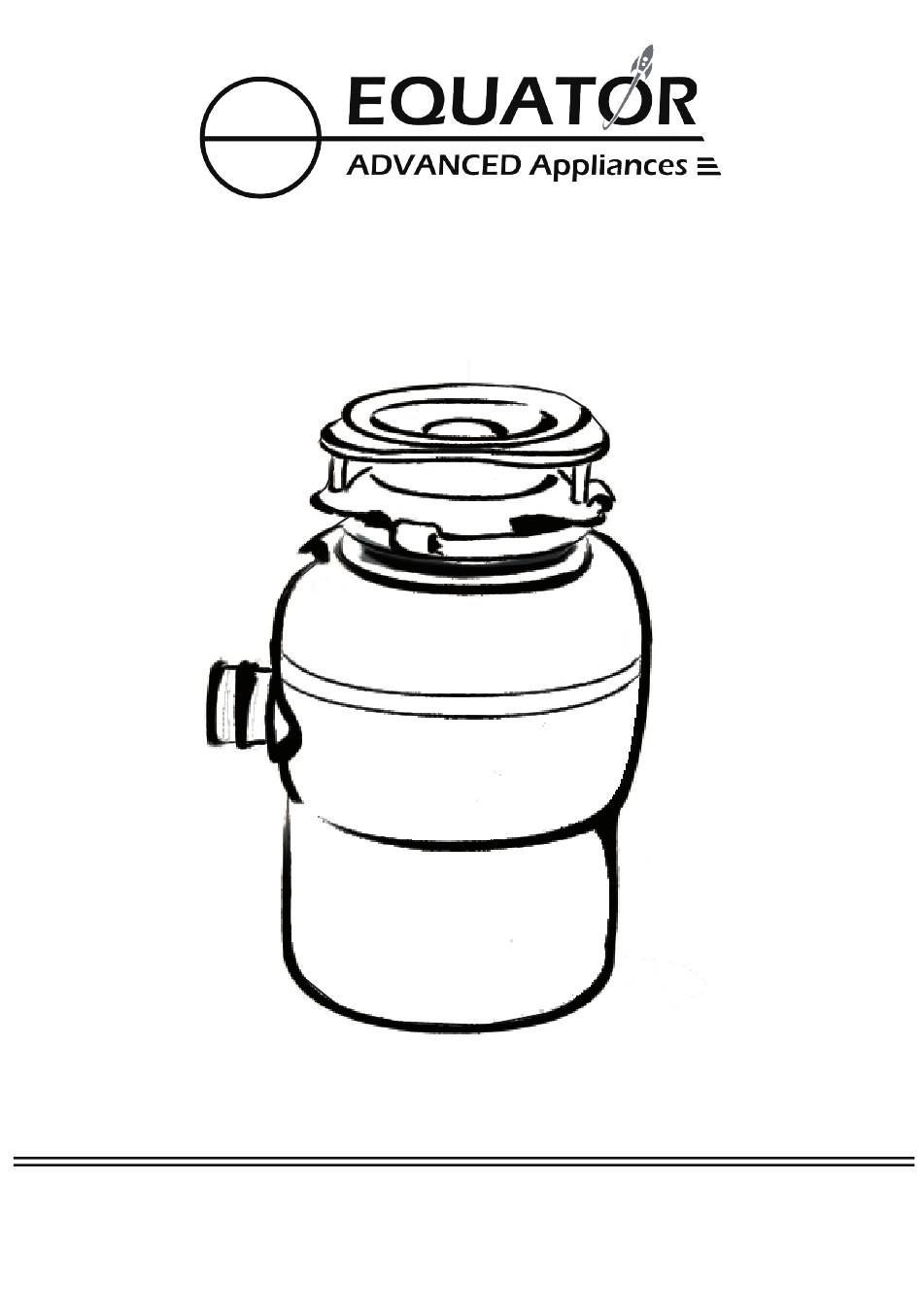

- Page 1 Garbage Disposer Model: GD 075 OWNER’S MANUAL Please read the instruction carefully and keep for future reference. Information may be updated from time to time so please refer to the website for the latest version of the manual.
- Page 2 Monday to Friday between normal business hours. Exclusions In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God.
-
Page 3: Warranty & Service
Since it is a responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose. This warranty gives you specific legal rights, and you may also... - Page 4 Safety Ensure the power cord of the garbage disposer enters the enclosure through a watertight fitting or is sealed in place. Ensure the garbage disposer has a strain relief, independent of the seal, and which reduces the risk of flexing or movement of the seal.
- Page 5 Parts Included: Splash Guard Disposer Shockproof ring Lower Mounting Ring Stopper Dishwasher Inlet Sink Flange Water Outlet Power Cord Rubber Gasket (3 Prong) Wrench Paper Gasket Use: paste the wrench holder onto the inner wall Rubber Ring Metal Gasket “L” Tube Mounting Ring Water Outler Ring 1 1/2"...
- Page 6 Installation Instructions WARNING: Before installation disconnect the power supply ！ Loosen the three screws on the mounting assembly, get them out about 0.6 - 0.8 inch (15-20mm). Use a flat head screw to take out the snap ring (I), then separate the paper gasket (E), metal gasket (F), and mounting ring (G) from the assembly.
- Page 7 Take out the paper gasket (E) and put it aside, put the gasket (D) onto the sink flange (C), then press it firmly onto the sink drain as shown. Evenly apply 1/2" thick rope of plumber's putty around sink flange (C). Plumbers putty Put the disposer on top of the sink flange (C) to...
- Page 8 Insert paper gasket (E), metal gasket (F), and mounting ring (G). Press snap ring (I) firmly in place. Tighten the three mounting screws (H) evenly and firmly against the flange.
- Page 9 Install the rubber ring (K) onto the tube (L), then secure the tube to disposer with screws. Stop and read CAUTION: DISHWASHER CONNECTION ONLY. ！ If you do not need to attach the dishwasher, Please skip steps 8, 9, 17. Turn disposer onto side and insert screwdriver into dishwasher inlet.
- Page 10 Knock out drain plug and remove plug from inside of disposer. Turn the garbage disposal upside down. Remove the wiring cover.
- Page 11 Install the cable connector on wiring cover. Fixed and tightening its position, make the power cord pass through the cable connector. Pull it out from wiring holes, proper length. WARNING: ！ Danger of electric shock due to poor grounding This disposer requires a switch (15 amp minimum rating) with a marked "Off"...
- Page 12 Connect the cable to the corresponding terminal of the machine. a Remove the green ground screw. b Connect the ground wire with a lock washer and tighten the green ground screw. ！ WARNING: Danger of electric shock due to poor grounding.
- Page 13 Hang disposer by aligning 3 mounting tabs with slide-up ramps on mounting ring. ！ WARNING: Falling Hazard Use the wrench (J) to secure the mounting ring tightly.
- Page 14 Place dishwasher tube into dishwasher Inlet. Secure with hose clamp. You may need to trim hose clamp. Discharge tube to ensure proper fit. Make sure anti-vibration tailpipe mount is straight.
- Page 15 Test for leaks after Installation: Fill 2/3 of the sink with tap water, turn on the disposer and then release the water. Check for leaks on connections spots (1) and (2) as indicated on the picture. An accessory can be installed on the garbage disposer which will automatically turn it on using an air switch.
- Page 16 Operation Before using the garbage disposer, ensure that it has been installed correctly under the sink with the required electrical connection. Use the garbage disposer to discard only organic items, such as fruit and vegetable debris: 1. Turn on the faucet and let the water run in the sink. 2.
- Page 17 25 minutes to prevent it from being left on accidentally. Manual Reset: The reset button is located at the bottom of the disposer and is red in color. Technical Specifications Model GD 075 Grinding Chamber Capacity 1 Quart (1000 ml) Electrical 120V / 60Hz 1700 RPM...
