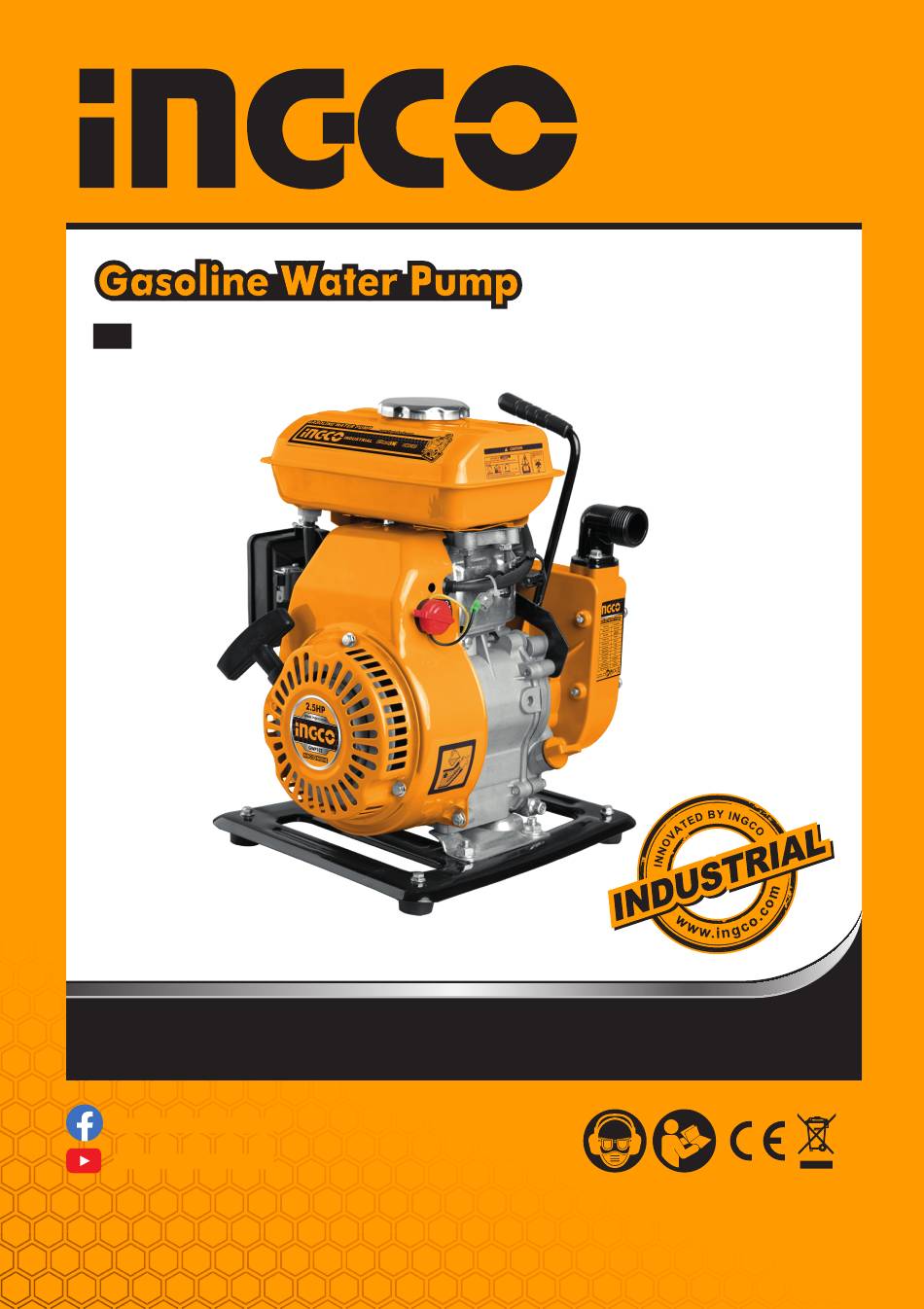

Page 1 Gasoline Water Pump Gasoline Water Pump GWP102 GWP152 ingcoglobal INGCO GLOBAL...
Page 2 Single grade 10W-30 Multi grade 10W-40 40 C Ambient temperature 104 F...
Page 3 0.6 - 0.7 mm...
Page 4: Safety Precautions
1. SAFETY PRECAUTIONS Please make sure you review each precaution carefully. Pay special attention to statement preceded by the following words. WARNING “WARNING” indicates a strong possibility of severe personal injury or loss of life if instructions are not followed. CAUTION “CAUTION”...
Page 5 Do not touch the spark plug and ignition cable when starting and operating the engine. Operate the pump on a stable, level surface. If the engine is tilted, fuel spillage may result. NOTE Operating the pump at a steep incline may cause seizure due to improper lubrication even with a maximum oil level.
Page 6 SYMBOLS Read the owner's manual. Stay clear of the hot surface. Exhaust gas is poisonous. Do not operate in an unventilated area. Stop the engine before refueling. Fire, open flame and smoking prohibited. v i t y t i Engine start Engine oil (Electric start) Add oil...
Page 7: Specification
24 Instruction for use Muffler Fuel cock (This publication) Spark plug Chocke lever Oil filler (with oil guage) Air cleaner Fuel tank Speed control lever 3. SPECIFICATION Model GWP102 GWP152 Max. head 16m/52.5feet 18m/59feet Max.suction 7m/22.9feet 7m/22.9feet Pump 100L/min 167L/min Max. flow 26Gal/min 44.1Gal/min...
Page 8: Pre-Operation For Starting
Explanation of Fig. If the unit has been operated dry, stop the engine 1 Oil Gauge immediately and allow the pump to cool before 2 Upper Level adding priming water. 3 Lower Level Model Oil capacity GWP102 0.4L GWP152 0.4L...
Page 9: Operating Your Pump
4. OPERATING YOUR PUMP 1. STARTING (See Fig. 3. STOPPING (See Fig. 5 ) (1) Open the fuel cock. (See Fig.3 - 1 ) (1) Set the speed control lever at the low speed position and allow the engine to run at low speed for 1 or 2 minutes (2) Turn the STOP SWITCH to the position “...
Page 10: Periodic Inspection
(100) hours. Before changing oil, check for a suitable way to dispose of old oil. Do not pour it down into sewage drains, onto garden soil or into open streams. *Note: 2. As to the procedures for these items, please refer to the SERVICE MANUAL or consult your nearest INGCO service dealer.
Page 11: Inspecting The Spark Plug
200 Model Oil capacity hours. Clean and replace air cleaner elements more often when operating in dusty environments. GWP102 0.4 L 7. FUEL HOSE REPLACEMENT (See Fig.7 0.4 L GWP152 WARNING (3) Refer to page 6 for the recommended oil.
Page 12 1 |English 6. PREPARATIONS FOR STORAG Oil sensor 1. WATER (See Fig. 1. FUNCTION OF OIL SENSOR Drain all water from the drain plug. The engine will stop automatically when the oil level falls below the safety limit. The engine cannot be started unless CAUTION the level is raised above the prescribed limit.
Page 13: Easy Troubleshooting
7. EASY TROUBLESHOOTING 1. PUMP DOES NOT RUN . 4. WHEN ENGINE DOES NOT START : Engine dose not start. Perform the following checks before you take the pump to Sticking of impeller your Robin dealer. If you still have trouble after completing (Disassemble and clean.) the checks, take the pump to your nearest Robin dealer.
Page 14: Exploded View
1 |English EXPLODED VIEW GWP102 GWP152...
Page 15: Spare Part List
1 |English SPARE PART LIST GWP102 GWP152 Part Description Engine FC152 Baseboard Nut M8 Bolt M8×16 Bolt M6×12 Cushioning Connection Piece Cover,Casing Washer 6 Bolt M6×16 Bolt M6×20 Mechanical seal Seal Ring ,Casing Impeller Case Volute Casing Casing Packing Outlet...
Page 16 1 |English EXPLODED VIEW GWP102 GWP152...
Page 17 1 |English SPARE PART LIST GWP102 GWP152 Part Description Part Description FUEL CAP BEARING 6203 FUEL TANK DOWEL PIN 8×14 FUEL COCK GASKET, CRANKCASE COVER SHROUD CRANKCASE COVER BOLT M6×12 BOLT M6×28 CLAMP, FUEL HOSE DIPSTICK FUEL HOSE 65mm GASKET, MUFFLER BOLT M6×35...
Page 18 INGCO TOOLS CO.,LIMITED No.45 Songbei Road,Suzhou MADE IN CHINA Industrial Park,China. 0720.V05 GWP102 GWP152...
