All in one Music System
TCD-386WEBT
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TCD-386WEBT and is the answer not in the manual?

Questions and answers

Summary of Contents for Goldsound TCD-386WEBT

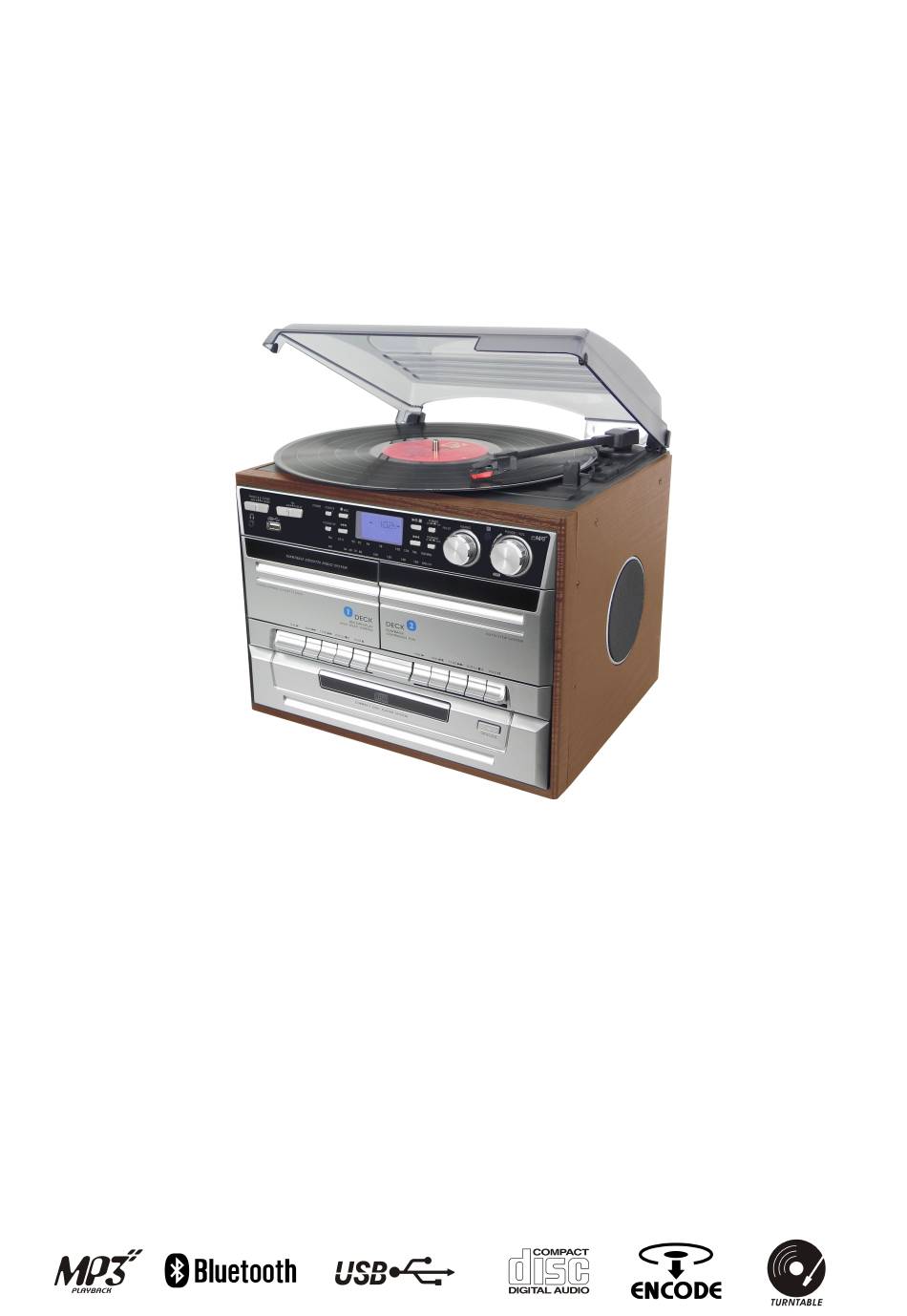

  • Page 1 All in one Music System TCD-386WEBT INSTRUCTION MANUAL...

  • Page 2: Important Safety Instructions

    WARNING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
  • Page 3 shock. Never spill liquid of any kind on the product. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: When the power-supply cord or plug is damaged, If liquid has been spilled, or objects have fallen into the product, If the product has been exposed to rain or water, If the product does not operate normally by following the operating instructions.

  • Page 4: Protect Your Furniture

    o Do not put anything in the safety slot. If you do, the laser diode will be ON when the CD door is still open. o This unit employs a laser. The use of controls or adjustment or performance of procedures other than those specified here may result in exposure to hazardous radiation.

  • Page 5: Battery Installation

    BATTERY INSTALLATION The battery compartment is located on the back of the remote control. Remove the battery compartment door by pressing in on the tab and lifting it off. Insert two (2) AAA size batteries (not included) into the battery compartment following the polarity markings inside the battery compartment.

  • Page 6: Location Of Controls

    LOCATION OF CONTROLS 1) Dust cover 2) LCD display 3) Record button 4) Source button 5) Bluetooth LED indicator 6) Function selector 7) 3.5mm headphone jack 8) USB socket 9) Cassette deck (1) door 10) FM/FM stereo selector 11) CD door open button 12) MP3 folder up button 13) Skip down button...
  • Page 7 Remote control transmitter Battery installation (battery not provided) The infra-red transmitter requires 2 pcs AAA size battery for operation Button description (R1) OPEN/ CLOSE Press to open or close the CD door (R2) PLAY/PAUSE In CD/USB mode, press once to start playback. Press again to enter Pause mode.

  • Page 8: Operation

    Connection Insert the DC plug (36) to the DC jack (34) of the unit, then connect the AC/DC adaptor (35) to AC outlet. Turn the power on/off button (19) clockwise until hear a “ click “ sound. Switch the function selector (6) to “ Tuner “ function. If the LCD display (2) light up with blue backlight, it’s mean the power supply is normal.
  • Page 9  Repeat/intro/random mode Press the PLAY MODE button (R9) before or during playback, a single track, single folder (MP3 only) or all the tracks can be played in difference mode as follow:- For CD (1) repeat 1 (2) repeat all tracks (3) intro (4) random (5) off mode...
  • Page 10 Set Function selector (6) at USB position and then press source button (4) to select “ USB” mode. Plug-in the USB plug with the face up & make sure it going into completely. Insert straight without bending. Connecting the USB upside down or backwards could damage the audio system or the ...
  • Page 11 Playback  Select “Tape” function (6).  Put in the cassette tape.  Press Play key to active playback  Adjust the volume control (19) to the desire level.  Use pause key when you want to stop playback temporarily. ...
  • Page 12 Encoding of CD, Phono or cassette tape into MP3 file The system is able to encode CD, record (from phono) and cassette deck file (from tape) to MP3 format and recording at memory media with USB connecting port. Before encoding, make sure one of these is connected to the relevant port/slot and has enough free memory space A) CD encoding I) recording 1 track...
  • Page 13 D) Encoding bitrate (by remote handset) You can select the desired bitrate during encoding, the higher bit rate will generate better sound quality and occupy more space of memory. The selectable range is from 32 / 64 /96 /128 / 192 / 256 kbps respectively Set in “...

  • Page 14: Line Out Connection

    Line out connection You can connect the system to your whole hi-fi system by connecting the line out socket (33) to the auxiliary input socket with a RCA cable (not included). SPECIFICATIONS DC Input 1.2A CARE AND MAINTENANCE Avoid operating your unit under direct sunlight or in hot, humid or dusty places. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors.
