Summary of Contents for ELTA music TSC-12
- Page 1 TOUCH SENSITIVE CONTROLLER TSC-12 MANUAL...

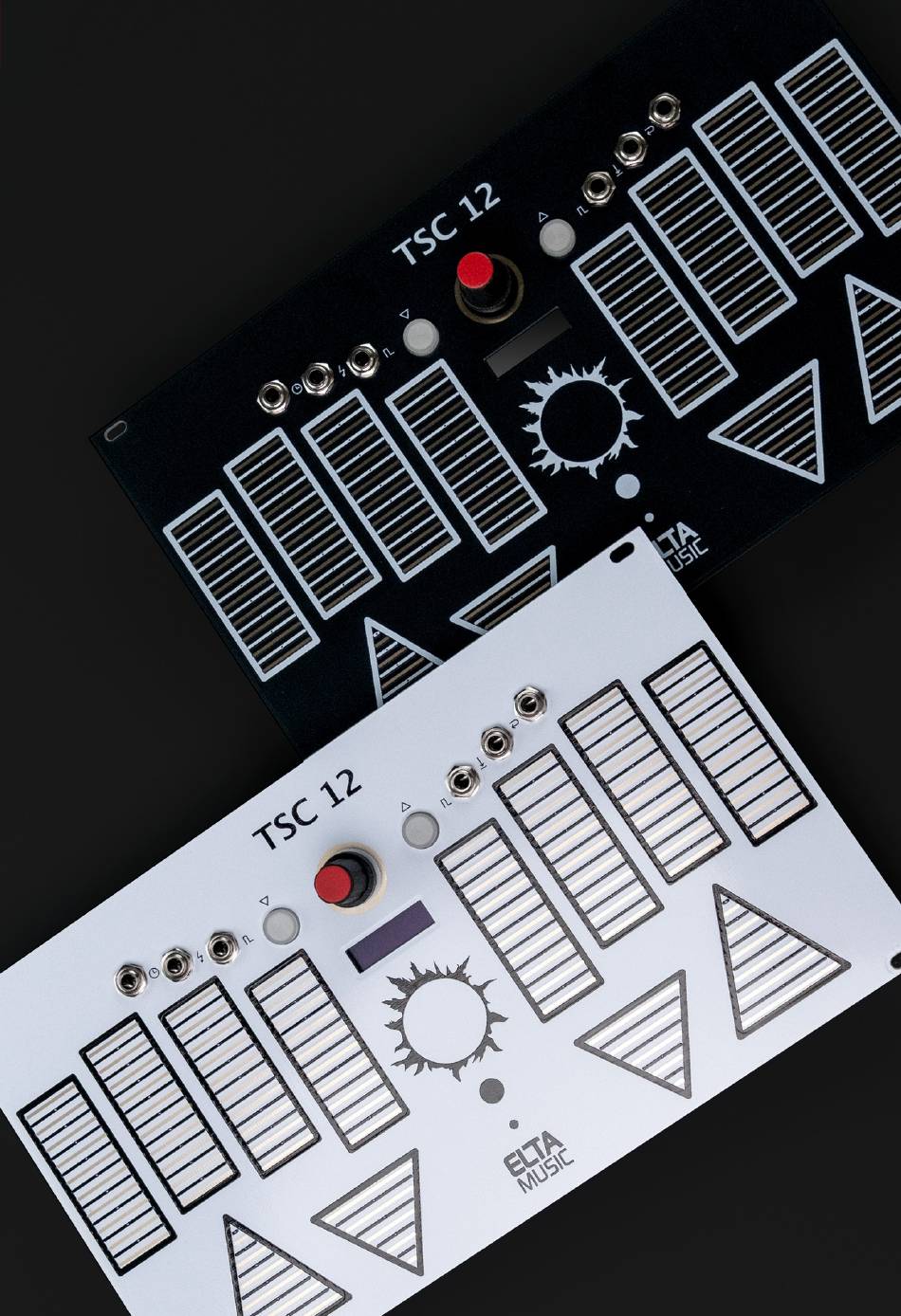

- Page 2 SENSOR KEYBOARD | IN - OUT The TSC-12 module, based on Solar-42 Ambient Machine keyboard is a performance oriented touch controller featuring 12 capacitively sensitive plates, equipped with highly accurate Volt/octave outputs, ready to connect to your modular setup also.
- Page 3 It’s essential to note that the TSC-12 keyboard is not force-sensi- tive but responds to the surface area of flesh applied directly to the plates. The capacitive sensor’s output increases with more...
- Page 4 KEYBOARD’S FUNCTIONALITY The keyboard’s functionality is determined by certain parameters. These parameters can be grouped as follows: BEHAVIOUR VIBRATO PLATE/BUTTON EDITOR PRESSURE MODE QUANTISER ARPEGGIATOR CLOCK SEQUENCER PRESETS PORTAMENTO BEHAVIOUR 12 key mode, the signal present on the pressure output is determined SINGLE by the ‘Pressure output’...
- Page 5 CLOCK Synthesizers with traditional piano keys will generate the order of the DIRECTION arpeggiated sequence based on the incoming notes. TSC-12 creates an arpeggio based on the sequence number of pressed plates and The direction parameter. forward [eg.: 1, 2, 5, 8, 1, 2, 5, 8...] backward [eg.: 8, 5, 2, 1, 8, 5, 2, 1...]...
- Page 6 KEYBOARD’S FUNCTIONALITY SEQUENCER Sets the way that the sequencer moves its index. When free mode is selected the sequencer is clocked continously. In keyboard controlled mode the sequencer moves its index only while a note plate is held. LENGTH Sets the number of steps in the sequence from 2 to 16 steps. Sets the clock multiplication/division ratio for the arpeggiator.
- Page 7 SENSOR KEYBOARD | IN - OUT KEYBOARD’S FUNCTIONALITY VIBRATO Sets (0 - 127) of the LFO that’s modulating the pitch (Volt/octave) SPEED output, thereby creating vibrato effect. DEPTH Sets the amount of modulation (0 - 127). Specifies a time delay (0 - 127) before vibrato begins to apply until it DELAY reaches the full strength determined by the depth parameter.
- Page 8 KEYBOARD’S FUNCTIONALITY Sets the root note of the scale applied by the note quantiser from C to ROOT NOTE The scale is a sequence of notes arranged in ascending order within an octave, that follows a specific pattern of intervals (distances between notes).
- Page 9 KEYBOARD’S FUNCTIONALITY PRESETS The keyboard can save 4 presets, containing the values of all the PRESETS parameters listed above, except the clock tempo. Rotate the encoder to scroll through presets A to D, click the encoder to enter a sub-selection page where you can load, save or initialise a preset.
-
Page 10: Warranty
12 month warranty. The manufacturer is not responsible for the consequences result- ing from the use of TSC-12 module, the documentation, and any parts related to the device. Everything the user does with the module, he does at his own risk and for his own pleasure.
