Galaxy HDX A16F-G2221 Manual

Fc-2g to sata-ii raid subsystem
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Galaxy Raid
Model A16F-G2221
FC-2G to SATA-II RAID Subsystem
Installation and Hardware
Reference Manual
Version 0906
Version 1.0 (08, 2005)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HDX A16F-G2221 and is the answer not in the manual?

Questions and answers

Related Manuals for Galaxy HDX A16F-G2221

Summary of Contents for Galaxy HDX A16F-G2221

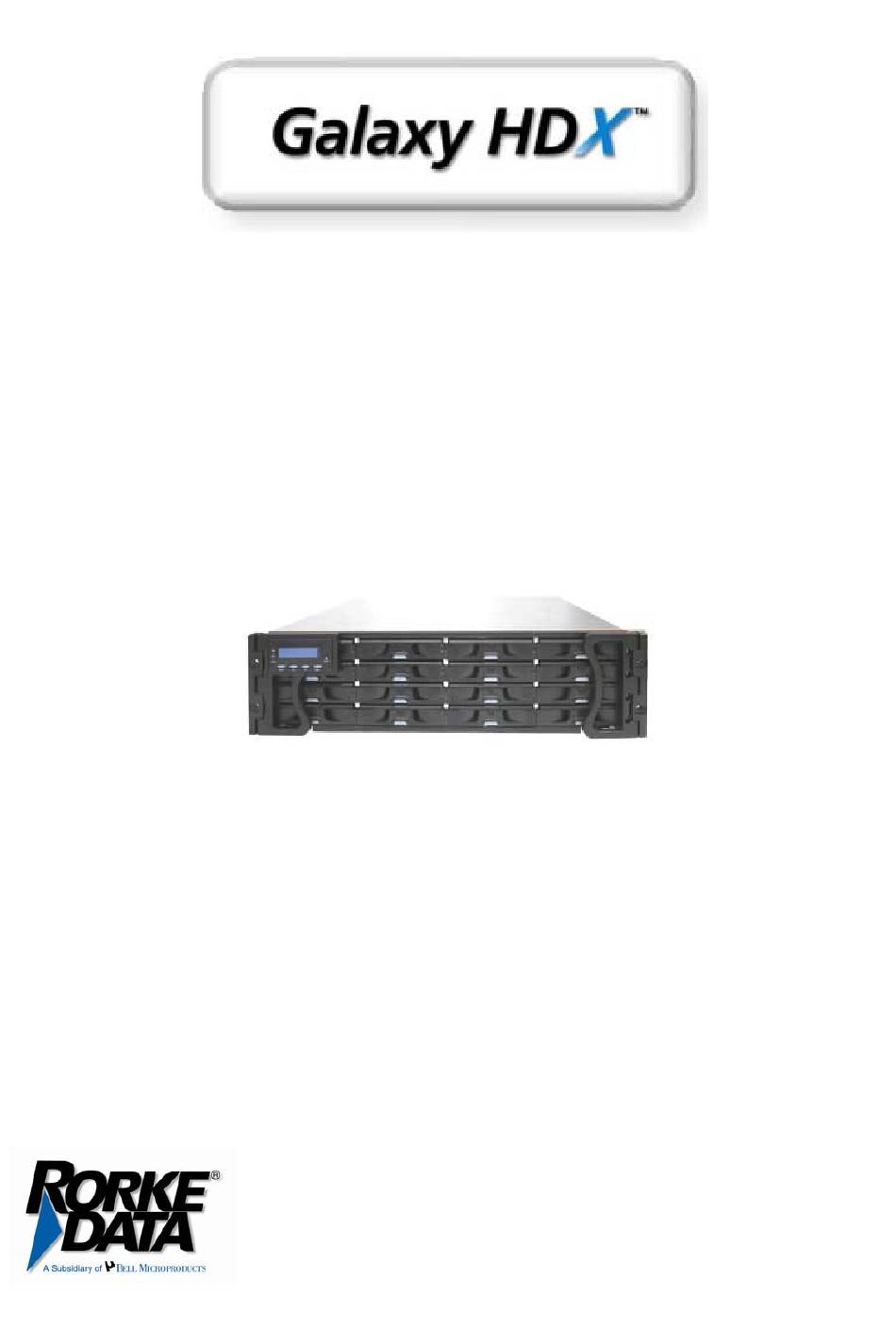

  • Page 1 Galaxy Raid Model A16F-G2221 FC-2G to SATA-II RAID Subsystem Installation and Hardware Reference Manual Version 0906 Version 1.0 (08, 2005)

  • Page 2: Contact Information

    Galaxy Raid Installation and Hardware Reference Manual Contact Information Americas Rorke Data Inc 9700 West 76 Eden Prairie, MN 55344 Tel: +1-800 328 8147 Fax: +1-952 829 0988 sales@rorke.com techsupport@rorke.com http://www.rorke.com...
  • Page 3 Product specifications are also subject to change without prior notice. Trademarks Galaxy and the Galaxy logo are registered trademarks of Rorke Data , Inc. ® PowerPC is a trademark of International Business Machines Corporation and Motorola Inc.

  • Page 4: Warnings And Certifications

    Galaxy Raid Installation and Hardware Reference Manual Warnings and Certifications (applies in the U.S. and Canada) FCC Class A Note This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device may accept any interference received, including interference that may cause undesired operation.
  • Page 5 Galaxy Raid Installation and Hardware Reference Manual This device is in conformity with the CB safety specifications. This device meets the requirements of the CB standard for electrical equipment with regard to establishing a satisfactory level of safety for persons using the device and for the area surrounding the apparatus. This standard covers only safety aspects of the above apparatus;...

  • Page 6: Table Of Contents

    Galaxy Raid Installation and Hardware Reference Manual Table of Contents CHAPTER 1 INTRODUCTION 1.1....................1-1 RODUCT VERVIEW 1.1.1 Product Introduction ..................1-1 1.1.2 Enclosure Chassis ....................1-2 1.1.2.1 Chassis Overview......................1-2 1.1.2.2 Physical Dimensions ...................... 1-3 1.1.2.3 Front Panel Overview ....................1-3 1.1.2.4 Hard Drive Numbering ....................
  • Page 7 Galaxy Raid Installation and Hardware Reference Manual 2.7.3 Installation Procedure..................2-7 2.8. HARD DRIVE INSTALLATION ................2-9 2.8.1 Hard Drive Installation Prerequisites ..............2-9 2.8.2 SATA Drive Installation ...................2-9 2.9. DRIVE TRAY INSTALLATION ................2-10 2.10. RACK/CABINET INSTALLATION..............2-12 CHAPTER 3 SUBSYSTEM MONITORING 3.1...............3-1...
  • Page 8 Galaxy Raid Installation and Hardware Reference Manual 5.1.2 General Notes on Component Replacement .............5-1 5.2. REPLACING CONTROLLER MODULE COMPONENTS ........5-2 5.2.1 Overview......................5-2 5.2.2 Notes on Controller Module Maintenance ............5-3 5.2.3 Removing the Controller Module ..............5-3 5.2.4 Replacing the Controller Module ..............5-4 5.3.

  • Page 9: Safety Precautions

    Prior to powering on the subsystem, ensure that the correct power range is being used. • The GALAXY subsystem comes with sixteen (16) drive bays. Leaving any of these drive bays empty will greatly affect the efficiency of the airflow within the enclosure, and will consequently lead to the system overheating, which can cause irreparable damage.

  • Page 10: About This Manual

    Galaxy Raid Installation and Hardware Reference Manual ESD Precautions Observe all conventional anti-ESD methods while handling system modules. The use of a grounded wrist strap and an anti-static work pad are recommended. Avoid dust and debris in your work area.

  • Page 11: Related Documentation

    These two documents can be found in the product utility CD included with your subsystem package. Conventions Naming From this point on and throughout the rest of this manual, the GALAXY series is referred to as simply the “subsystem” or the “system” and GALAXY is frequently abbreviated as “GAL.” Lists Bulleted Lists: Bulleted lists are statements of non-sequential facts.

  • Page 12: Software And Firmware Updates

    Galaxy Raid Installation and Hardware Reference Manual WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Software and Firmware Updates Please contact Rorke Data’s tech support (techsupport@rorke.com) for the latest software or firmware updates.

  • Page 13: Chapter 1 Introduction

    Chapter 1 Introduction 1.1. Product Overview 1.1.1 Product Introduction This hardware manual briefly introduces the single controller Galaxy A16F-G2221 sixteen-bay Fibre Channel (FC)-to-Serial ATA (SATA) RAID subsystem shown in Figure 1-1. Figure 1-1: Galaxy 16-bay SATA RAID Subsystem The A16F-G2221 RAID subsystems come with one (1) FC-to-SATA RAID controller.

  • Page 14: Enclosure Chassis

    Galaxy A16F-G2221 Installation and Hardware Reference Manual (UPS) support. (See Appendix B) A RJ-45 Ethernet connector allows for web-based management of the subsystem. I/O signals/commands transmitted between the controller and the drives at the front of the subsystem pass through non-user-serviceable back-plane board. The back-plane is connected to a maximum of sixteen (16) hard drives that you purchase separately and install into the sixteen (16) drive trays that come with the subsystem.

  • Page 15: Physical Dimensions

    Chapter 1: Introduction Figure 1-2: Galaxy 16-bay SATA RAID Subsystem Overview CAUTION! When working with the subsystem, it is important to use tools with extreme care. Do not place tools or other items on top of the enclosure to help avoid damaging the outward appearance of the chassis.

  • Page 16: Front Panel Overview

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 1.1.2.3 Front Panel Overview Figure 1-3: A16F-G2221 RAID Subsystem Front View As shown in Figure 1-3, the front of the A16F-G2221 subsystems feature a 4 x 4 layout for sixteen (16) drive trays that are designed to accommodate sixteen (16) standard 3.5”...

  • Page 17: Rear Panel Overview

    Chapter 1: Introduction 1.1.2.5 Rear Panel Overview Figure 1-5: A16F-G2221 Rear View The subsystem’s rear panel is shown in Figure 1-5. The rear panel provides access to all the components located in the rear section of the RAID subsystem enclosure. Two (2) redundant, hot-swappable 460W PSU modules, which are accessible through the rear panel, connect the A16F-G2221 subsystems to main power.

  • Page 18: Lcd Panel

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 1.2. A16F-G2221 Subsystem Components 1.2.1 LCD Panel Figure 1-6: LCD Panel The LCD panel shown in Figure 1-6 consists of a 16x2 character LCD screen with push buttons and LED status indicators. The LCD front panel provides full access to all RAID configurations and monitoring.

  • Page 19: Drive Trays

    Chapter 1: Introduction 1.2.2 Drive Trays Part Number: GAL-9273CDTray Figure 1-7: Drive Tray Each A16F-G2221 subsystem comes with sixteen (16) drive trays. The front panel of each drive tray (see Figure 1-7) contains a locking mechanism that secures the drive tray to the enclosure and a latch that facilitates the removal and installation of the drive tray.

  • Page 20: Raid Controller Modules

    Galaxy A16F-G2221 Installation and Hardware Reference Manual Figure 1-8: SATA-to-PATA Dongle Kit Separately purchased and independently installed SATA-to-PATA dongle kits (see Figure 1-8) are also available. These dongle kits facilitate the installation of PATA drives into the drive trays. The dongle kits have a power connector and a SATA connector.

  • Page 21: Controller Module Interfaces

    Chapter 1: Introduction Status Indicating LEDs Retention Retention Screws Screws Levers Levers Ethernet Port SFP Connectors COM Ports Figure1-9: A16F-G2221 RAID Controller Module Rear Panel The A16F-G2221 RAID controller module rear panel is shown in Figure1-9 and has two (2) SFP connectors labeled FC-CH0 and FC-CH1. Two (2) COM ports (labeled COM1 and COM2), one (1) Ethernet connector (next to COM2) and eight (8) status-indicating LEDs (labeled from 1 to 6 and from A to B) are also seen on the controller module rear panel.

  • Page 22: Dimm Modules

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 1.2.6 DIMM Modules The controller module comes with a pre-installed 256MB (or above) DDR RAM DIMM module. The controller module supports memory modules with sizes from 256MB to 1GB. The DIMM module is located on the controller board.

  • Page 23: Psus

    Chapter 1: Introduction Figure1-11: PSU Module The A16F-G2221 is equipped with two (2) redundant, hot-swappable, 460W PSUs, which are located at the rear of the enclosure. (See Figure 1-5) The PSU is permanently mounted into a 2U (dual-level) bracket especially designed to house both the PSU and a cooling module, which is mounted in the lower part of the 2U bracket.

  • Page 24: I2C Bus

    Galaxy A16F-G2221 Installation and Hardware Reference Manual The cooling fans also operate at two different speeds following firmware control. The cooling fans operate at a higher speed when one of the critical components, e.g., a PSU, has failed or when the higher thresholds on temperature are violated.

  • Page 25: Firmware (Fw) And Raidwatch Gui

    Chapter 1: Introduction ♦ Cooling module (2 LEDs) ♦ PSU module (1 LED) ♦ Drive trays (2 LEDs) 1.3.3 Firmware and RAIDWatch™ GUI Firmware: The firmware is pre-installed software used to configure the subsystem. The latest firmware functionalities include Task Scheduler, Intelligent Drive Handling, and Media Scan.

  • Page 26: Components

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 1.4.2 Components The following components are all hot-swappable: ♦ PSU modules ♦ Cooling modules ♦ Battery backup module ♦ Hard drives NOTE: Instructions on how to replace these hot-swappable are given in Chapter 5.
  • Page 27 Chapter 1: Introduction Chapter 1 Introduction .............. 1-1 1.1. Product Overview ........................1-1 1.1.1 Product Introduction ......................1-1 1.1.2 Enclosure Chassis ........................ 1-2 1.1.2.1 Chassis Overview ......................1-2 1.1.2.2 Physical Dimensions......................1-3 1.1.2.3 Front Panel Overview ...................... 1-4 1.1.2.4 Hard Drive Numbering ....................1-4 1.1.2.5 Rear Panel Overview .......................
  • Page 28 Galaxy A16F-G2221 Installation and Hardware Reference Manual audible alarm, 1-13 LCD panel, 1-4, 1-6 auto-negotiate, speed, 1-9 LCD screen, 1-6 LED status indicators, 1-6 BBU, 1-10 memory module, 1-8 chassis, 1-2~3 mid-plane, 1-1~2 COM1, 1-9 monitoring methods, 1-12 COM2, 1-9...

  • Page 29: Chapter 2 Hardware Installation

    Chapter 2: Hardware Installation Chapter 2 Hardware Installation 2.1. Installation Overview This chapter gives detailed instructions on how to install the A16F-G2221 subsystem. When installing the subsystem, it is necessary to install the hard drives and drive trays. Depending on the type of drives being used; it may also be necessary to install the dongle kits.

  • Page 30: Safety Precautions

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 2.3. Safety Precautions: 2.3.1 Precautions and Instructions 1. Be sure the correct power range (100~120 or 200~230VAC) is supplied by your rack cabinet or power outlet. 2. Thermal notice: All drive trays (even if they do not contain a hard drive) must be installed into the enclosure.

  • Page 31: General Installation Procedure

    Chapter 2: Hardware Installation damage. To prevent ESD damage, follow these precautions before touching or handling any of the components: ♦ When installing the A16F-G2221, you should wear an anti-static wrist band or touch a grounded metal surface to discharge any static electricity from your body. ♦...

  • Page 32: Installation Procedure Flowchart

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 2.4.1 Installation Procedure Flowchart Figure 2-1 shows a flowchart of the installation procedure. As you complete each step, check off the “Done” box on the right. Please use this flowchart in conjunction with the instructions that follow.

  • Page 33: Installing The Optional Bbu

    Chapter 2: Hardware Installation The enclosure chassis, with its pre-installed components, is located at the bottom of the package. The pre-installed components include: ♦ One (1) controller module ♦ Two (2) PSU modules ♦ Two (2) cooling modules ♦ Two (2) front handles ♦...

  • Page 34: Installation Procedure

    Galaxy A16F-G2221 Installation and Hardware Reference Manual • Do not disassemble or modify the BBU. If disassembled, the BBU could leak acid, overheat, emit smoke, burst and/or ignite. • Do not pierce the BBU with a sharp object, strike it with a hammer, step on it, or throw it.
  • Page 35 Chapter 2: Hardware Installation Figure 2-3: Use a Screwdriver to Remove the Metal Sheet Step 3. Install the BBU. After the metal sheet covering the BBU slot has been removed, the BBU can be installed. To do this, align the BBU with the slot from which the metal sheet was removed, and then gently push the BBU into the slot.

  • Page 36: Hard Drive Installation

    2.7. Hard Drive Installation NOTE: SATA hard drives have been pre-integrated and tested in the drive trays for your Galaxy Raid. Use the following procedures to replace faulty hard drives. 2.7.1 Hard Drive Installation Overview WARNING! 1. Hard drives are very delicate and must be handled with extreme care. Dropping onto a hard surface (even over a short distance), hitting, or touching the drive circuits with your tools may all cause damage to the drives.
  • Page 37 Chapter 2: Hardware Installation Step 1. Correctly orient the hard drive. Prior to installing the hard drive into the drive tray, make sure that the connector at the back of the drive is facing the back of the drive tray. Step 2.
  • Page 38 Galaxy A16F-G2221 Installation and Hardware Reference Manual Figure 2-6: SATA-to-PATA Dongle Kit Step 2. Locate the drive tray retention screw holes. Three (3) corresponding pre- drilled screw holes can be found at the back of the drive tray shown in Figure 2-7.
  • Page 39 Chapter 2: Hardware Installation Figure 2-8: Installed SATA-to-PATA Dongle Kit Step 6. Connect the ATA and power cables. ATA and power cables from the dongle kit must be connected to their corresponding connectors on the hard drive. (See Figure 2-9) Make sure that these connections are secure and will not come loose.
  • Page 40 Galaxy A16F-G2221 Installation and Hardware Reference Manual Figure 2-11: Inserting the PATA Drive Step 8. Adjust the drive’s location until the mounting holes in the drive canister are aligned with those on the hard drive. Secure the drive with the four (4) supplied 6/32 flat-head screws.

  • Page 41: Drive Tray Installation

    Chapter 2: Hardware Installation 2.8. Drive Tray Installation Once the hard drives have been installed in the drive trays, the drive trays must be installed into the A16F-G2221. Step 1. Make sure the key-lock is in the unlocked position. The key-lock is unlocked if the groove on its face is in a horizontal orientation.
  • Page 42 Galaxy A16F-G2221 Installation and Hardware Reference Manual Figure 2-14: Installing a Drive Tray Step 4. Close the front flap on the drive tray. Make sure the front flap is closed properly. Closing the front flap ensures that the SATA connector at the back of the drive tray is firmly connected to the corresponding connector on the mid- plane board.

  • Page 43: Rack/Cabinet Installation

    Chapter 2: Hardware Installation 2.9. Rack/Cabinet Installation The A16F-G2221 subsystem has been designed to fit into a standard 19” cabinet or rack. Two slide rails are available for installing the subsystem into a rack or cabinet. Please contact your system vendor for further details. The subsystem should be installed in the rack or cabinet before the hard drives and the drive trays are installed.
  • Page 44 Galaxy A16F-G2221 Installation and Hardware Reference Manual CHAPTER 2 HARDWARE INSTALLATION ..................1 2.1....................... 1 NSTALLATION VERVIEW 2.2....................... 1 NSTALLATION REQUISITES 2.3. : ........................2 AFETY RECAUTIONS 2.3.1 Precautions and Instructions....................2 2.3.2 Static-free Installation ......................2 2.4..................... 3...
  • Page 45 Chapter 2: Hardware Installation 2-17...

  • Page 46: Chapter 3 Subsystem Monitoring

    Chapter 3: Subsystem Monitoring Chapter 3 Subsystem Monitoring 3.1. Subsystem Monitoring Overview The A16F-G2221 subsystem is equipped with a variety of self-monitoring features that keep you informed of the subsystem’s operational status. These monitoring features provide vital feedback to help you maintain the operational integrity of the subsystem. Prompt response to warnings and component failure notifications will improve the overall operation and help ensure the longevity of the RAID subsystem.

  • Page 47: Status-Indicating Leds

    Galaxy A16F-G2221 Installation and Hardware Reference Manual manager should use either the LCD panel or the PC hyper-terminal to determine the cause of the alarm and take the appropriate corrective measures. ♦ C: Sensors and presence detect signals are implemented through an I...
  • Page 48 Chapter 3: Subsystem Monitoring Figure 3-1: LCD Panel LEDs LED Name Color Status ON indicates that power is being supplied to the subsystem. Blue OFF indicates that no power is being supplied to the subsystem. Flashing indicates that there is activity on the host/drive BUSY White channels.

  • Page 49: Drive Tray Leds

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 3.2.3 Drive Tray LEDs The drive trays come with two (2) status-indicating LEDs, one that indicates power and the other that indicates hard drive activity. The LEDs are shown in Figure 3-2 and their definitions in Table 3-3.
  • Page 50 Chapter 3: Subsystem Monitoring Name Color Status Flashing indicates that the controller is being initialized. Ready Green ON indicates that the controller has successfully booted, is active, and operating properly. OFF indicates that the controller is not ready for operation. Flashing indicates that there is activity on the FC host ports, i.e., the Hst Bsy (Host Green...

  • Page 51: Lan Port Leds

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 3.2.5 LAN Port LEDs The LAN port comes with two (2) LEDs. As shown in Figure 3-4, one LED indicates the online status and the other indicates LAN activity. The LED definitions are shown in Table 3-6.

  • Page 52: Cooling Module Leds

    Chapter 3: Subsystem Monitoring The PSU is not turned on. The PSU module LED will remain off even if the power cable has been plugged in but the power switch is not turned on. Table 3-7: PSU Module LED Definitions 3.2.7 Cooling Module LED Figure 3-6: Cooling Fan Module LEDs and Cooling Fan Locations Each cooling module has two (2) red LEDs on the back.

  • Page 53: Bbu Module Led

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 3.2.8 BBU Module LED Figure 3-7: Battery Module LED Location Yellow Status Battery operating normally. Battery failed. Flashing Battery is charging. Table 3-9: Battery LED Definitions...

  • Page 54: Audible Alarm

    Chapter 3: Subsystem Monitoring 3.3. Audible Alarm Different subsystem environmental and operational parameters (such as temperature, etc.) have been assigned a range of values between which they can fluctuate. If either the upper or lower thresholds are exceeded, an audible alarm will automatically be triggered. The alarm will also be triggered when an active component of the A16F-G2221 subsystem fails.
  • Page 55 Galaxy A16F-G2221 Installation and Hardware Reference Manual ♦ Cooling modules ♦ PSU modules ♦ BBU modules ♦ Hard drives 3.4. I C Monitoring The operating status of PSU and cooling fan modules are collected through an I C serial bus. If either of these modules fails, the failure will be detected and you will be notified through the various methods described above.
  • Page 56 Chapter 3: Subsystem Monitoring Chapter 3 Subsystem Monitoring ........................ 3-1 3.1. Subsystem Monitoring Overview ....................3-1 3.2. Status-indicating LEDs........................ 3-2 3.2.1 Brief Overview of the LEDs....................3-2 3.2.2 LCD Panel ........................... 3-2 3.2.3 Drive Tray LEDs ......................... 3-4 3.2.4 Controller Module LEDs ..................... 3-4 3.2.4.1 FC Controller Module LEDs ...................
  • Page 57 Galaxy A16F-G2221 Installation and Hardware Reference Manual system event, 3-2 self-monitoring features, 3-1 serial port, 3-1 temperature threshold, 3-1 severe damage, 3-2 the controller board, 3-1 status-indicating LEDs, 3-1, 3-2 the Generic User's Manual, 3-1 subsystem components, 3-2 subsystem monitoring, 3-2...

  • Page 58: Chapter 4 Subsystem Connection And Operation

    Chapter 4: Subsystem Connection and Operation Chapter 4 Subsystem Connection and Operation 4.1 FC Host Connection Prerequisites NOTE: The topics covered in Section 4.2 only pertain to the FC models. 4.1.1 Cabling The FC Standard allows for optical connections. Optical cables can be used over long distances, have been shown to be more reliable, and are less susceptible to EMI.

  • Page 59: Sfp Transceivers

    NOTE: SFP modules must be purchased separately. A variety of FC cables and transceivers can be used. Please purchase the correct SFP modules from your Galaxy RAID subsystem vendor/distributor and contact them for the latest list of certified modules. 4.1.4 Fibre Channel Topologies The Fibre Channel Standard has been designed to support three (3) separate topologies.

  • Page 60: Points Of Failure

    Chapter 4: Subsystem Connection and Operation 4.1.5 Points of Failure The primary concern for configuring host-side topologies is that points of failure are avoided. It is therefore recommended that the host side be connected to at least two (2) HBAs. By-pass circuitry should be provided outside the subsystem; therefore, it is also preferable to connect the FC RAID subsystems to the host computer(s) through either a FC-2G hub or a Fibre switch.

  • Page 61: Sample Topology - Direct-Attached

    Galaxy A16F-G2221 Installation and Hardware Reference Manual NOTE: To create dual-redundant data paths on the host side, it is necessary for third-party failover software to be installed on the host computer. 4.1.7 Sample Topology – Direct-Attached In the configuration shown in Figure 4 - 2, one (1) A16F-G2221 subsystem is connected to a single host computer.

  • Page 62: Power On

    Chapter 4: Subsystem Connection and Operation 4.2 Power On Once all the components have been installed in the Galaxy subsystem, the host channels have been connected to the host, power on the cascaded JBOD(s), the subsystem, the FC hub or switch, and then power on the host computer(s).

  • Page 63: Power On Enclosure

    (See Figure 4 - 3) Each switch controls a single PSU, therefore make sure that both switches are turned on. Figure 4 - 3: Galaxy Subsystem Power Switches CAUTION! Although the PSUs are redundant and a single PSU can provide sufficient power to the system, it is advisable to turn both of the power switches on.

  • Page 64: Lcd Screen

    Chapter 4: Subsystem Connection and Operation Audible Alarm - If any errors occur during the initialization process, the onboard alarm will sound in a hastily repeated manner. Drive tray LEDs should normally start flashing, indicating the RAID control units are attempting to access the hard drives.

  • Page 65: Power Off Procedure

    RAID subsystem to be powered down. 3. Turn off the power. Turn off the power switches at the top of the rear panel of the Galaxy RAID subsystem. Once the RAID subsystem has been powered down, other devices connected to the subsystem may be powered down.
  • Page 66 Chapter 4: Subsystem Connection and Operation CHAPTER 4 SUBSYSTEM CONNECTION AND OPERATION .............1 FC H ..................1 ONNECTION REREQUISITES 4.1.1 Cabling ........................... 1 4.1.2 FC Lasers ..........................1 4.1.3 SFP Transceivers........................2 4.1.4 Fibre Channel Topologies ...................... 2 4.1.5 Points of Failure........................3 4.1.6 Sample Topology –...

  • Page 67: Overview

    Chapter 5: Subsystem Maintenance and Upgrading Chapter 5 Subsystem Maintenance 5.1. Overview 5.1.1 Maintenance Constant monitoring and maintenance of your A16F-G2221 subsystem will minimize subsystem downtime and preserve the working integrity of the system for a longer period of time. If any of the subsystem components fail, they must be replaced as soon as possible.

  • Page 68: Replacing Controller Module Components

    Galaxy A16F-G2221 Installation and Hardware Reference Manual ♦ Normalized airflow is directly dependent upon the presence of all subsystem components. Even if a subsystem component fails, it should not be removed from the subsystem until a replacement is readily at hand and can be quickly installed.

  • Page 69: Removing The Controller Module

    Chapter 5: Subsystem Maintenance and Upgrading 5.2.3 Removing the Controller Module To remove the controller module: Step 1. Turn off the subsystem. If possible power off the subsystem in the way described in Chapter 4. If it is not possible to do this turn off both PSU modules.

  • Page 70: Replacing The Controller Module

    Galaxy A16F-G2221 Installation and Hardware Reference Manual 5.2.4 Replacing the Controller Module If the controller module has failed, it must be replaced. To replace a failed controller module: Step 1. Remove the failed controller module. (See Section 5.2.3) If the DIMM module is undamaged it can be removed (See Section 0) and reused on the new controller module.

  • Page 71: Selecting The Memory Modules

    Chapter 5: Subsystem Maintenance and Upgrading WARNING! The controller board in the controller module is a sensitive item. Please ensure that all anti-static precautions stipulated above are strictly adhered to. Only qualified engineers should replace the DIMM module. 5.3.2 Selecting the Memory Modules If the memory module on the A16F-G2221 controller module/s is/are going to be replaced, the following factors must be considered when purchasing replacement DIMM modules:...

  • Page 72: Replacing A Faulty Bbu

    Galaxy A16F-G2221 Installation and Hardware Reference Manual White Clip White Clip Figure 5-3Figure 5-3: Pushing Back the White Clips on the Sides of the DIMM Module Step 3. Gently pull the DIMM module out of the DIMM socket. (See Figure 5-3) Step 4.

  • Page 73: Replacing A Faulty Psu Module

    Chapter 5: Subsystem Maintenance and Upgrading Figure 5-4: Removing the Metal Sheet Retention Screws Step 2. Install the new BBU. After the faulty BBU has been removed, the new BBU can be installed. To do this, align the BBU with the empty slot, and then gently push the BBU into the slot.

  • Page 74: Replacing The Psu Module

    WARNING! Although the subsystem can operate using single PSU module, it is not advisable to run the Galaxy subsystem with a single PSU module for a long period of time. 5.5.2 Replacing the PSU Module WARNING! Before you insert a new PSU, be sure that it has the same warning label on its retention lever as that shown on the lever of a remaining PSU.
  • Page 75 Chapter 5: Subsystem Maintenance and Upgrading Step 5. Remove the PSU module. Push the lever at the back of the PSU module downwards. This will dislodge the PSU module from the subsystem. Once dislodged gently pull the PSU module out of the subsystem. (See Figure 5-7) Figure 5-7: Removing the PSU Module Step 6.

  • Page 76: Cooling Module Maintenance

    Although the cooling fan modules are fully redundant, it is not advisable to run the Galaxy subsystem with a single cooling module for a long period of time. If the second cooling module fails, the system is at risk of sustaining irreparable damage.

  • Page 77: Drive Tray Maintenance

    Chapter 5: Subsystem Maintenance and Upgrading Figure 5-9: Removing the Cooling Module Step 2. Install the new cooling module. To do this, align the replacement cooling module with the bay from which the faulty one was removed. Then gently slide the new cooling module into the enclosure subsystem. 5.7.
  • Page 78 Galaxy A16F-G2221 Installation and Hardware Reference Manual WARNING! The hard drive is fragile; please always handle with extreme care. Do not drop the hard drive; always be slow, gentle and careful when putting down a hard drive. Only handle the hard drive by the edges, avoid touching any components or connectors.
  • Page 79 Chapter 5: Subsystem Maintenance and Upgrading 5. Remove the retention screws. The hard drive is secured to the drive tray with four (4) retention screws (two on each side.) To remove the hard drive, these retention screws must be removed. (See Figure 5-12) Figure 5-12: Removing the SATA Hard Drive 6.
  • Page 80 Galaxy A16F-G2221 Installation and Hardware Reference Manual Figure 5-14: Removing the Retention Screws 4. Install the new dongle kit. Once the retention screws have been removed, reinstall the new dongle kit using the instructions given in Chapter 2. 5. Install the hard drive to the drive tray. Once the new dongle kit has been installed on the drive tray, reinstall the hard drive.
  • Page 81 Chapter 5: Subsystem Maintenance and Upgrading CHAPTER 5 SUBSYSTEM MAINTENANCE ..................1 5.1............................1 VERVIEW 5.1.1 Maintenance ........................... 1 5.1.2 General Notes on Component Replacement ................1 5.2................2 EPLACING ONTROLLER ODULE OMPONENTS 5.2.1 Overview..........................2 5.2.2 Notes on Controller Module Maintenance ................2 5.2.3 Removing the Controller Module ...................
  • Page 82 Galaxy A16F-G2221 Installation and Hardware Reference Manual installed BBU module, 5-3 precautionary measures, 5-2 internal airflow, 5-8 PSU, 5-8~9 internal operational temperature, 5-10 PSU module, 5-1, 5-9~10 irreparable damage, 5-8 PSU module maintenance, 5-8 PSU module, replace, 5-8 key-lock, 5-12...

  • Page 83: Appendix A Uninterruptible Power Supply

    An uninterruptible power supply (UPS) is a separately purchased battery backup unit that is connected to an Galaxy subsystem. If the UPS is sufficiently large, it can be used to power the whole subsystem in the event of an AC power failure.

  • Page 84: Connecting The Ups To The Subsystem

    Galaxy A16F-G2221 Installation and Hardware Reference Manual A.4. Connecting the UPS to the Subsystem A.4.1 Connect the PSU Module Power Cords The two (2) power cables shipped with the subsystem must be plugged into the power cord sockets in the rear of the PSU modules. The plug at the other end of the power cable must be inserted into a socket on the UPS.

  • Page 85: Power On

    Appendix A:Uninterruptible Power Supply A.5. Power On When powering on the subsystem, the UPS must be powered on before the subsystem. To see how to power on the UPS, please refer to the documentation that came with your UPS. Note that the power on sequence described in Chapter 4 will be altered. The power on sequence when a UPS is connected is shown below: Step 1.

  • Page 86: Ups Message Summary

    Galaxy A16F-G2221 Installation and Hardware Reference Manual Message 3: “Warning: UPS AC Power-Loss detected” This message appears when the UPS battery power level remains above 50% but its connection to the AC power supply has been disrupted in some way. The write policy changes from write-back to write-through.
  • Page 87 Appendix A:Uninterruptible Power Supply Message AC Power Battery Power Write Policy Level (BPL) Status UPS connection is absent Write back UPS connection detected Write back Warning: Power-Loss Disconnected BPL > 50% Write through detected Warning: UPS Battery Low 50%. Disconnected BPL <...
  • Page 88 Galaxy A16F-G2221 Installation and Hardware Reference Manual This page is intentionally left blank UPS Status Monitoring...
  • Page 89 Appendix A:Uninterruptible Power Supply APPENDIX A UNINTERRUPTIBLE POWER SUPPLY ................ A-1 A.1................A-1 NINTERRUPTIBLE OWER UPPLY VERVIEW A.2. UPS S ......................A-1 OMPATIBLE UPPLIES A.3....................A-1 ERIAL OMMUNICATION ABLES A.4................. A-2 ONNECTING THE TO THE UBSYSTEM A.4.1 Connect the PSU Module Power Cords................A-2 A.4.2 Set the Baud Rate.........................A-2...

  • Page 90: Appendix B Specifications

    Appendix B Specifications Appendix B Specifications B.1. Technical Specifications Environmental Specifications Humidity 5 ~ 95% (non condensing) Operating: 0º to 40ºC Temperature Non-operating: -20º to 60ºC Operating: 12,000 ft Altitude Packaged: 20,000 ft Power Requirements 100VAC @ 10A Input Voltage 240VAC @ 5A with PFC (auto-switching) Frequency...
  • Page 91 Galaxy A16F-G2221 Installation and Hardware Reference Manual Safety Requirements • UL60950 • Shock Half-sine Operating: 10G peak, 11ms duration Non-operating: 100G, 180 in/sec 240G, 2ms, half-sine Square 240G, 2ms, half-sine Vibration Operating 5~500Hz, 0.2G, X/Y/Z Non-operating 5~500Hz, 1.0G, X/Y/Z Warning Alarms •...

  • Page 92: Controller Specifications

    Appendix B Specifications B.2. Controller Specifications B.2.1 Configuration Specification RAID Levels 0, 1(0 + 1), 3, 5, 10, 30, 50, JBOD, and non-RAID disk spanning Host O/S Compatibility Host O/S independent Host Interface 2Gbps FC Host Channels Pre-configured host channels Drive Interface Supports up to 16 channels of 3.0Gbps SATA-II Drive Channels...

  • Page 93: Drive Tray Specifications

    Galaxy A16F-G2221 Installation and Hardware Reference Manual B.3. Drive Tray Specifications Specification Height 28mm Width 110mm Depth 218.92mm Key Lock B.4. Power Supply Specifications Specification Nominal Power 460W DC Output 12.0V: 32A 5.0V: 32A 3.3V: 30A Input Frequency 47 ~ 63Hz AC Input 100VAC @ 10A –...

  • Page 94: Cooling Module Specifications

    Appendix B Specifications B.5. Cooling Module Specifications Specification Max. Air Flow (each High speed: 31.8 CFM module) Low speed: 20.1 CFM 9 W max. Input Power 0.89A max. Input Current DC 12V Rated Voltage High speed: 55dB max. Acoustic Noise Low speed: 44dB max.

  • Page 95: Fault Tolerance Management

    Galaxy A16F-G2221 Installation and Hardware Reference Manual B.7. Fault Tolerance Management Specification Yes (with user-configurable detect only, clone and replace, Drive S.M.A.R.T Support and perpetual clone functions) Battery Back-up Option ISEMS (Simple Enclosure Management Service) via I Interface Automatic Drive Failure...
  • Page 96 Appendix B Specifications APPENDIX B SPECIFICATIONS ....B-1 B.1......................B-1 ECHNICAL PECIFICATIONS Vibration..............................B-2 B.2..................... B-3 ONTROLLER PECIFICATIONS B.2.1 Configuration ........................B-3 B.2.2 Architecture .........................B-3 B.3...................... B-4 RIVE PECIFICATIONS B.4....................B-4 OWER UPPLY PECIFICATIONS B.5..................... B-4 OOLING ODULE PECIFICATIONS B.6.

  • Page 97: Appendix C Spare Parts And Accessories

    GAL-9273CDTray Drive tray, Type-III bezel and Type-II LED lightpipe GAL-9273CPSU Power supply module, Enhanced Galaxy 16-bay subsystems, 460W capacity GAL-9273CFanMod Cooling fan module for Enhanced Galaxy 16-bay subsystems GAL-9273HandLLCD Left-side forearm handle for 3U RAID subsystems, LCD panel included GAL-9270CHandR...
  • Page 98 Galaxy A16F-G2221 Installation and Hardware Reference Manual C.2. Accessories Accessories that came with the subsystem are listed in Table C-2. Model Name Description GAL-9011 Null modem, DB-9 female to DB-9 male, wires swapped GAL-9270ASCab RS-232C serial cable, audio-jack-to-DB-9 Table C-2: Accessories Shipped with the Subsystem Accessories that must be purchased separately are listed in Table C-2.
  • Page 99 Appendix C: Spare Parts and Accessories APPENDIX C SPARE PARTS AND ACCESSORIES .................C-1 C.1..........................C-1 PARE ARTS C.2..........................C-2 CCESSORIES Accessories...

  • Page 100: Appendix D Pin Outs

    Appendix D Pin Outs Appendix D Pin Outs D.1. SFP Connector Pin Outs Each of the SFP host or expansion ports is comprised of a case bottom, an EMI case, and a 20-pin host connector. These port sockets receive Small-Form-Factor (SFP) fiber optic and copper-based transceivers.
  • Page 101 Galaxy A16F-G2221 Installation and Hardware Reference Manual Pin Name Pin Description Transmitter ground (common with receiver ground) Transmitter fault; not supported FAULT Transmitter disable; laser output disabled on high or open MOD_DEF(2) Module definition 2; data line for serial ID MOD_DEF(1) Module definition 1;...

  • Page 102: Com1 Cable: Db9 Audio Jack Pin Outs

    Appendix D Pin Outs D.2. COM1 Cable: DB9 Audio Jack Pin Outs PN: GAL-9270ASCabs Figure D-2: RS-232C (Audio Jack) Pin Outs COM 1 Cable: One that is used to connect a PC running terminal emulation program CN1 Pin Number Pin Name Ground CN2 Pin Number Pin Name...

  • Page 103: Modem

    Galaxy A16F-G2221 Installation and Hardware Reference Manual D.3. COM2 Cable: DB9 Audio Jack UPS Cable Pin Outs PN: GAL-9270CUPSCab COM 2 Cable: One that is used to connect a UPS device. Except for pinouts, the cable is the same as the COM1 cable.

  • Page 104: Ethernet Port Pin Outs

    Appendix D Pin Outs D.5. Ethernet Port Pin Outs Figure D-3: LAN Port Pin Outs Pin Name Pin Name LAN_TXP LAN_TXN LAN_RXN LAN_RXP Table D-5: Ethernet Port Pin Outs D.6. Main Power IEC-type receptacle. Ethernet Port Pin Outs...
  • Page 105 Galaxy A16F-G2221 Installation and Hardware Reference Manual This page is intentionally left blank Main Power...
  • Page 106 Appendix D Pin Outs APPENDIX D PIN OUTS ..........D-1 D.1. SFP C ......................D-1 ONNECTOR D.2. COM1 C : DB9 A ................D-3 ABLE UDIO D.3. COM2 C : DB9 A ................D-3 ABLE UDIO D.4. GAL-9011 N ......................D-4 ODEM D.5.
