1.25Gbps Upstream/1.25Gbps Downstream
GE-PON OLT Transceiver
Description
DELTA's
GE-PON

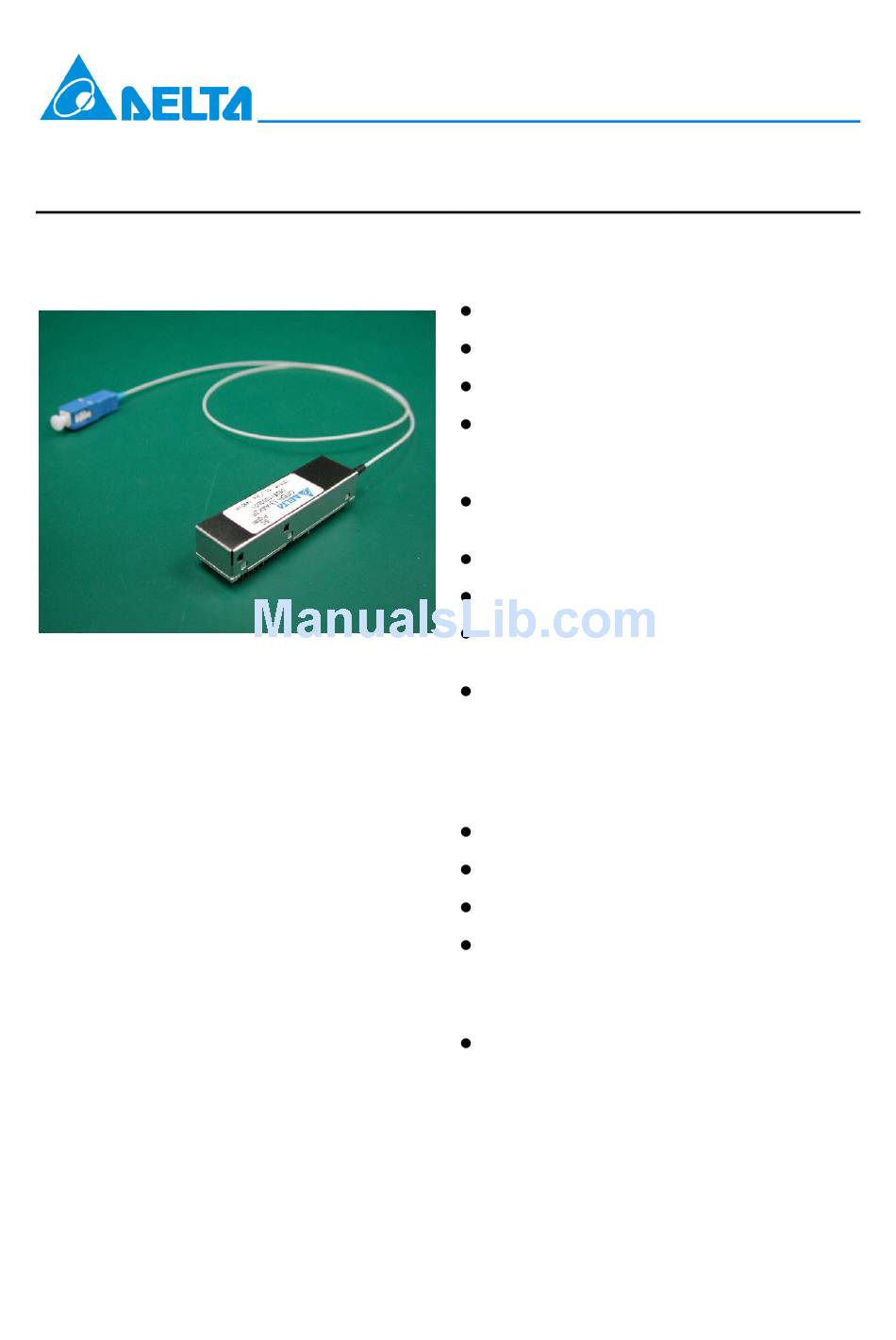

OPEP-33-B4L3R is designed for Gigabit Ethernet
Passive Optical Network transmission.
The module is contained in a 2x5 SFF
package with a 9/125um SC pigtail single mode
fiber.
The module consists 1490nm un-cool DFB
laser, InGaAs/InP APD, Preamplifier and WDM filter
in a high-integrated optical sub-assembly, and it
receives up to 1.25Gbps of burst-mode data at
1310nm, and transmits 1.25Gbps of continuous
data at 1490nm.
DELTA ELECTRONICS, INC.
OLT
transceiver
1
FEATURES
RoHS compliant
IEEE802.3ah Gigabit Ethernet compliant
2x5 pin SFF package with SC pigtail fiber
1310nm Burst Mode 1.25Gbps receiver, and
1490nm Continuous Mode 1.25Gbps
transmitter
Build in Optical Isolator for extreme Return
Loss tolerance
Single +3.3V power supply
LVPECL electrical signal interface
LVTTL Tx Disable input and Rx Signal Detect
output
Laser Class 1 Product which comply with the
requirements of IEC 60825-1 and IEC 60825-2
Application
IEEE 802.3ah 1000BASE-PX20-D
GE-PON OLT
Burst Mode Application
FTTx WDM Broadband Access
OPEP-33-B4L3R data link more than 20km in
9/125um single mode fiber.
OPEP-33-B4L3R
Revision: S1
03/27/2007
www.deltaww.com
Advertisement
Table of Contents
Related Manuals for Delta GE-PON OLT Transceiver OPEP-33-B4L3R
Summary of Contents for Delta GE-PON OLT Transceiver OPEP-33-B4L3R
- Page 1 1.25Gbps of burst-mode data at 1310nm, and transmits 1.25Gbps of continuous data at 1490nm. DELTA ELECTRONICS, INC. FEATURES RoHS compliant IEEE802.3ah Gigabit Ethernet compliant 2x5 pin SFF package with SC pigtail fiber 1310nm Burst Mode 1.25Gbps receiver, and...
-
Page 2: Absolute Maximum Ratings
B.O.L=Before of Life; E.O.L= End of Life Note (2). The 20dB width for SLM Laser is taken as 6.07 times the RMS width Note (3). These are unfiltered 20-80% values. Note (4): Measure at 2 -1 NRZ PRBS pattern DELTA ELECTRONICS, INC. Symbol Min. Typ. -0.3 -0.3... - Page 3 The output data pattern from the transmitter of the system under test is a repetition of alternate 0/1 pattern as defined for this measurement. Note (2). When SD deasserted, the data output is Low-level (fixed) Note (3). These are 20%~80% values. DELTA ELECTRONICS, INC. 1- X2 1- X1 Symbol Min.
- Page 4 Differential Data Output Swing Data Output Voltage-High Data Output Voltage-Low Signal Detect Output Voltage-High Signal Detect Output Voltage-Low Note (1). A (TX)+ B (RX) = 350mA (Not include termination circuit) DELTA ELECTRONICS, INC. ONU#1 Dynamic Range Guard Time ONU#1 Receiver Threshold Setting Time Symbol Min.
-
Page 5: Pin Description
RD(n) RD(p) VccT VeeT Tx_Dis TD(p) TD(n) DELTA ELECTRONICS, INC. Receiver Ground +3.3V Receiver Power Supply Normal Optical Input indicated by logic “High”, and No Optical Input indicated by logic “Low”. Inverted Receiver Data Output Non-Inverted Receiver Data Output +3.3V Transmitter Power Supply Transmitter Ground LVTTL Logic “High”... - Page 6 7. Recommended Interface Circuit Tx_Dis Protocol IC SerDes IC DELTA ELECTRONICS, INC. 3.3V 10uF 100nF Z0=50ohm 100nF Z0=50ohm 100nF 150ohm 150ohm 10uF 3.3V 82ohm 130ohm Z0=50ohm Z0=50ohm 82ohm 130ohm 3.3V OPEP-33-B4L3R DELTA GEPON OLT Module 6. VccT 100nF 8. Tx_Dis 3.3V...
-
Page 7: Outline Dimensions
Parameter Mechanical Dimensions Connector Type Minimum Fiber Bending Radius Maximum Fiber Contact Temperature Tensile Force on Pigtail Maximum Fiber Stress Allowance Fiber length (L) DELTA ELECTRONICS, INC. Unit Description 49.5x13.34x9.6 SC/UPC connector ºC kpsi 540 +/-20 W eek (52W eeks/Year) : 1月 2日 =01... -
Page 8: Regulatory Compliance
FDA/CDRH Laser Eye Safety Component Recognition UL/CSA Appendix A. Document Revision Version No. Date 2006-10-12 2007-03-27 DELTA ELECTRONICS, INC. Reference MIL-STD-883E Method 3015.7 EIA-JESD22-A114 IEC/EN 61000-4-2 IEC/EN 61000-4-2 IEC/EN 61000-4-3 FCC Part 15 Class B EN 55022 Class B (CISPR 22A) FDA 21CFR 1040.10, 1040.11...
