Orion HARRIS LSWS2 Series Installation Instructions Manual

LED Lumen Select Wall Pack Semi Cut Off, Gen 2
Instruction Number: P-INT-X-480
Product Series: LSWS2
Tools Required for Installation
-Cordless drill or Philips Screwdriver and Drill Bit Set
-Wire cutter/stripper
WARNING!
Risk of fire or electric shock. To reduce risk of electrical shock, turn off power supply before installation or servicing
This product should be installed, inspected, and maintained by a qualified electrician only, in accordance with the NEC (National Electric Code)
and all local codes
Use only UL (or other NTRL) approved wire for input/output connections
Minimum 90ºC supply conductors
Make sure LEDs and drivers are cool to touch when performing maintenance
Make sure the supply voltage is the same as the rated voltage of the luminaire
Mount fixture to surface with Lens facing down
CAUTION! For wet location compliance, fixture must be properly sealed. For moisture seal, apply silicone caulking between the mounting
surface and back housing, as well as around the sides of the housing.
1. Field installers are responsible for recognizing specific site requirements and making adjustments to assure a complete,
functional installation.
2. Make all power connections using UL listed components.
3. Electrical connections must be made by a qualified electrician and in accordance with NEC and local codes.

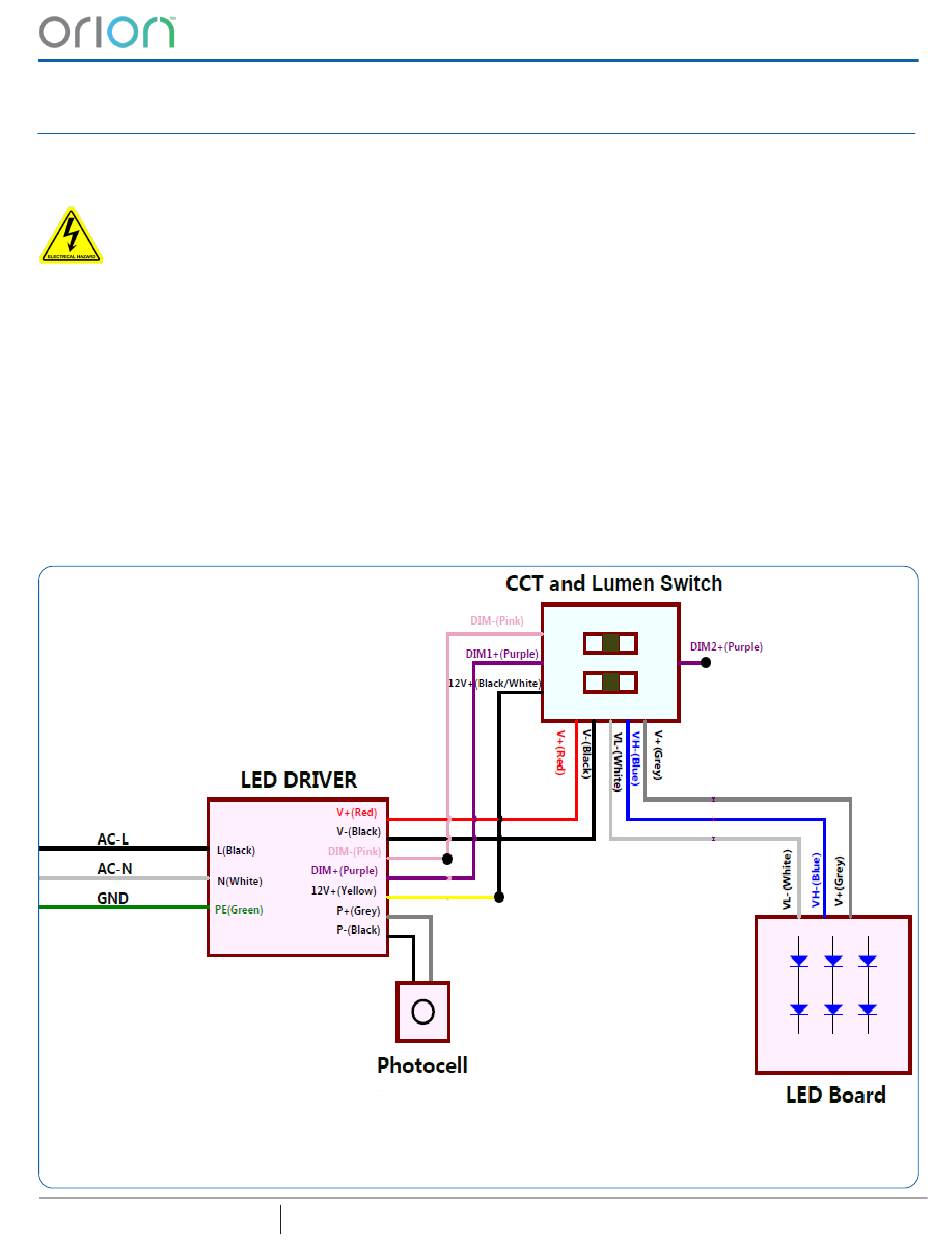

Standard Wiring Diagram
O ri o n E n e r g y S y s t e m s , I n c .
orionlighting.com
1. 8 0 0 . 6 6 0 . 9 3 4 0
Installation Instructions
©2024 Orion Energy Systems, Inc. All rights reserved. Orion and Light Years Ahead are trademarks/
service marks of Orion Energy Systems, Inc. Design modification rights reserved.
1
