Summary of Contents for Hollyland VenusLiv Air

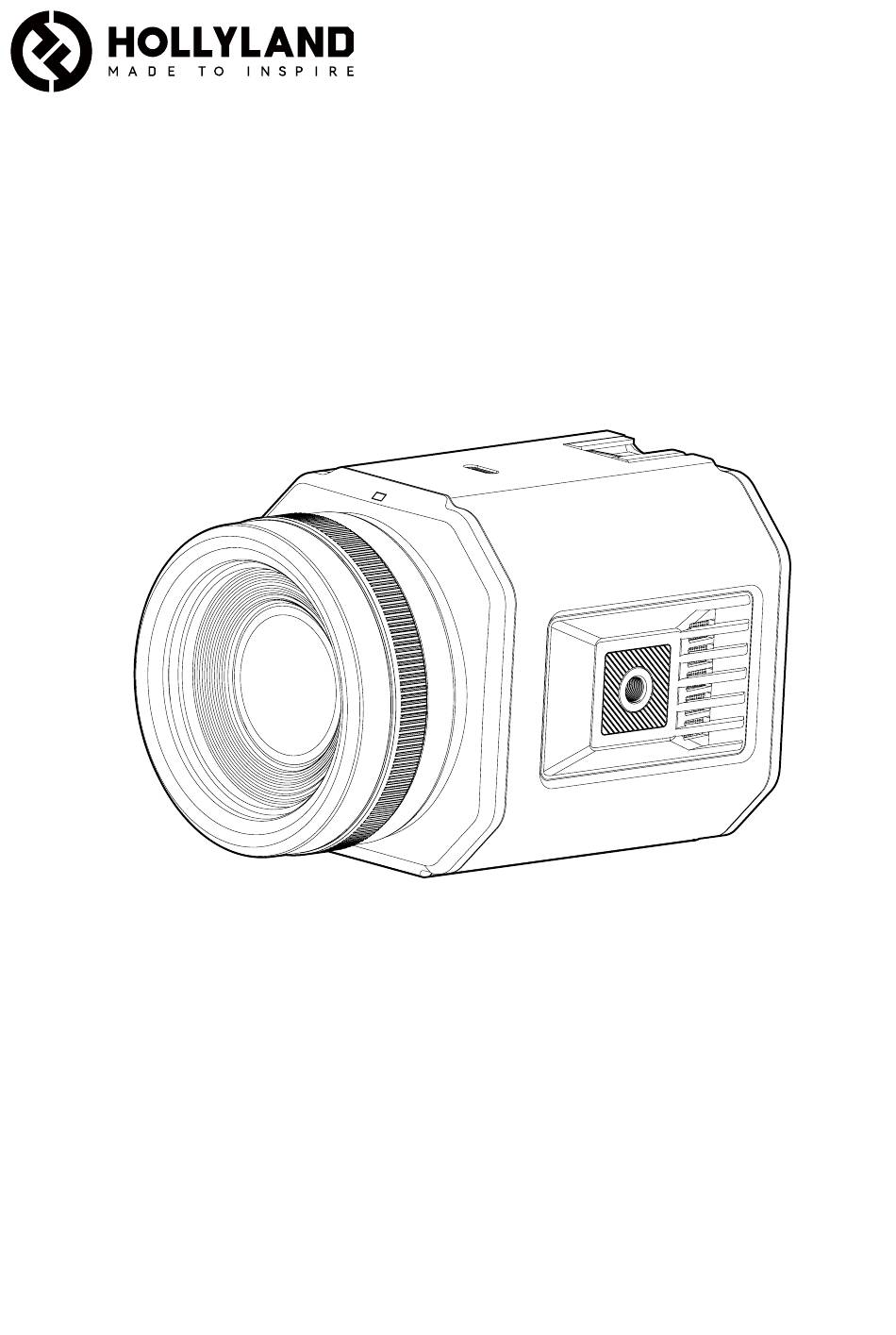

- Page 1 VenusLiv Air User Manual V2.0.0...
- Page 3 Introduction Thank you for purchasing the Hollyland VenusLiv Air camera. Please read this User Manual carefully before using the product. For more detailed information, please scan the QR code to view the latest product user manual.
-
Page 4: Packing List
Packing List ② ③ ① ④ ⑤ ⑥ ① VenusLiv Air ② 12V 2A Adapter ③ USB-A to USB-C Cable ④ Cable Tie ⑤ User Manual ⑥ Warranty Card... -
Page 5: Parts Description
Parts Description... -
Page 6: Parts & Functions
Parts Functions DC Power Interface Power Button Power adapter interface. It is strongly Press and hold the button to turn on recommended to use the original the camera. In this case, the indicator adapter to avoid the risk of camera light turns ON in green. - Page 7 HDMI for Audio & Video Output The interface can be used for connecting to a monitor for monitoring or to a PC and a broadcasting station for streaming your production content. HDMI USB-C 3.1 Interface • UVC + UAC Streaming The interface can be used for connecting to a PC for transmitting audio &...
- Page 8 USB-C 2.0 Interface Zoom Ring The interface only supports connecting Rotate the zoom ring clockwise to to the Lark C1 wireless microphone. reduce the focal distance. Compatibility issues may be caused Rotate the zoom ring counterclockwise when audio devices with other USB-C to increase the focal distance.
- Page 9 1. Select Video Capture Device , as 2. Select Audio Input Capture, as shown in the following figure. shown in the following figure. Select HOLLYLAND FHD Camera as Select HOLLYLAND as the audio input the video capture device. capture device.
- Page 10 3. Configure the streaming URL. Select Stream in the left navigation pane and set the Server and Stream Key parameters, as shown in the following figure. Note: OBS Studio of different versions may have different parameter names, but the rules to set the parameters are the same. 4.
- Page 11 Connecting to the App on a Mobile Phone Connection Configuration 1. Download the VenusLiv app. • Open the app store on an Android phone and search for and install the VenusLiv app. • Open App Store on an iPhone and search for and install the VenusLiv app. 2.
- Page 12 5. After the camera is successfully connected to the app via Bluetooth, you can set the camera parameters and perform other settings in the app.
-
Page 13: Specifications
Specifications Qualcomm CMOS Sony HollyOS Weight 600g (21.2oz) Dimensions (LxWxH): 127mmx81mmx84mm (5"x3.2"x3.3") Power Consumption <6W Input Voltage 12V 2A DC Wireless Technology Wi-Fi: 2.4 GHz + 5 GHz Bluetooth 5.0 Operating –10° C to 40° C Temperature Wide: 63° (Horizontal)/80° (Vertical) Tele: 23°... -
Page 14: Camera Security
3. When using external power supply connection, please follow all the security rules of the third-party power supply device. 4. The lens of the VenusLiv Air is made of glass. If the lens is damaged, please handle it carefully to avoid being scratched by the broken lens/glass and keep it away from children. - Page 15 3. Do not use the product near heat sources such as radiators, electric heaters, stoves, or other heat-producing equipment. 4. Use only parts and accessories specified or provided by Hollyland. 5. Please hand over all maintenance work to qualified personnel. No matter what...
- Page 16 Statement All copyrights belong to Shenzhen Hollyland Technology Co., Ltd. Without the written approval of Shenzhen Hollyland Technology Co., Ltd., no organization or individual may copy or reproduce part or all of any written or illustrative content and disseminate it in any form.
-
Page 17: Fcc Requirement
FCC Requirement Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
