Summary of Contents for Jegs 81648

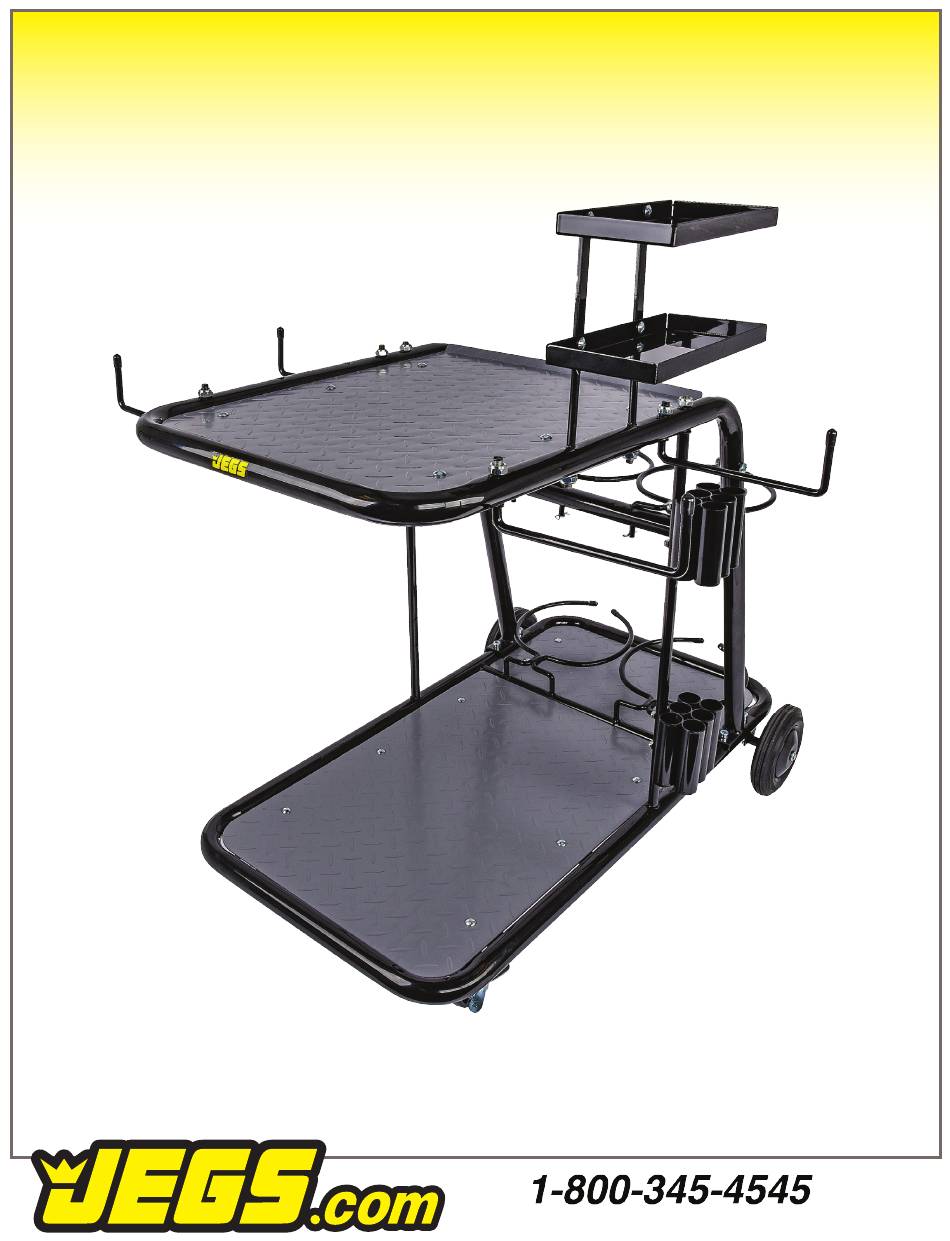

- Page 1 Installation Guide for 81648 Welding Cart [37 in. L x 24.8 in. W x 38.34 in. H]...
- Page 2 (2) Upper Shelf Mount (sides) n B) x2 (Wheel) x2 (Wheel) (2) Tig Rod Holders (2) Tank Holders (4) Bolts (M10x50mm) (2) Wheels 81648 81648 (1) Upper Shelf (4) Screws (M6x12mm) (14) Nuts (M10) (2) Casters (360º) 81648 81648 81648...
- Page 3 Installation 1. ASSEMBLE TOOL STORAGE TRAYS & ROD HOLDER • Trays • Arrange trays with flanges facing upward, place against the flat faces of the uprights and align the mounting holes. • Attach trays at the rear of each storage tray upright, insert M6x12 screws &...
- Page 4 4. ATTACH UPPER SHELF • Slide upper shelf tubing on rear shelf mount, at the same time let the side mounts slide into location. • Secure rear mount with M8x40 bolts and M8 nuts. • Side mounts are held in place with M10 nuts. 5.
