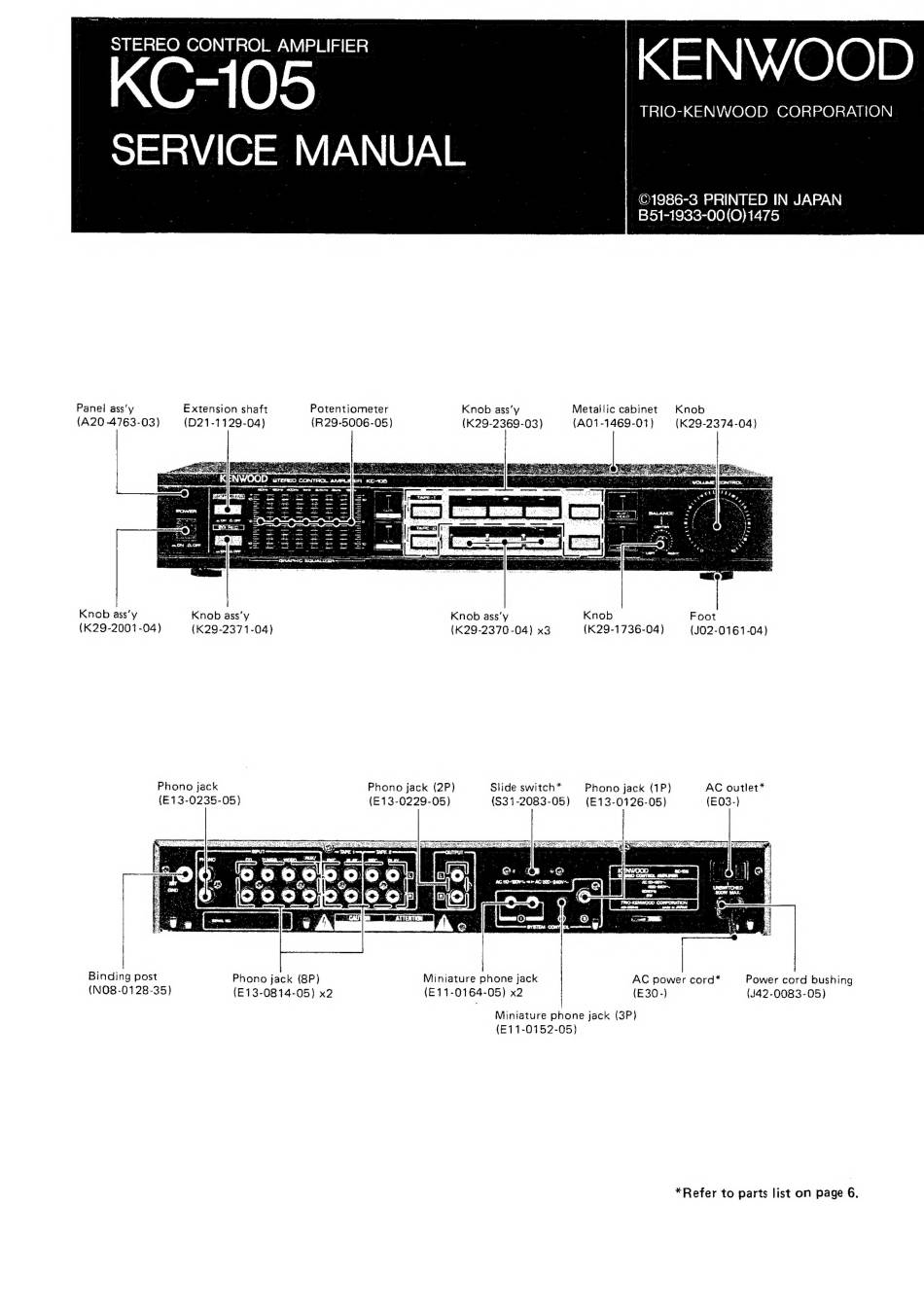

Kenwood KC-105 Service Manual

_ SERVICE MANUAL
'©1986-3 PRINTED IN JAPAN
B51-1933-00(0)1475
Panel ass'y Extension shaft Potentiometer Knob ass'y Metallic cabinet Knob
{(A20 4763-03) (D21-1129-04) (R29-5006-05) (K29-2369-03) {A01-1469-01) (K29-2374-04)
(K29-2001 -04) (K29-2371-04) (K29-2370-04) x3 (K29-1736-04) (JO2-0161-04)
Phono jack Phono jack (2P) Slide switch* Phono jack {1P) AC outlet*
(FE 13-0235-05) (E13-0229-05) (S31-2083-05) (E13-0126-05) (E03-)
Miniature phone jack (3P)
(E11-0152-05)}
*Refer to parts list on page 6.
