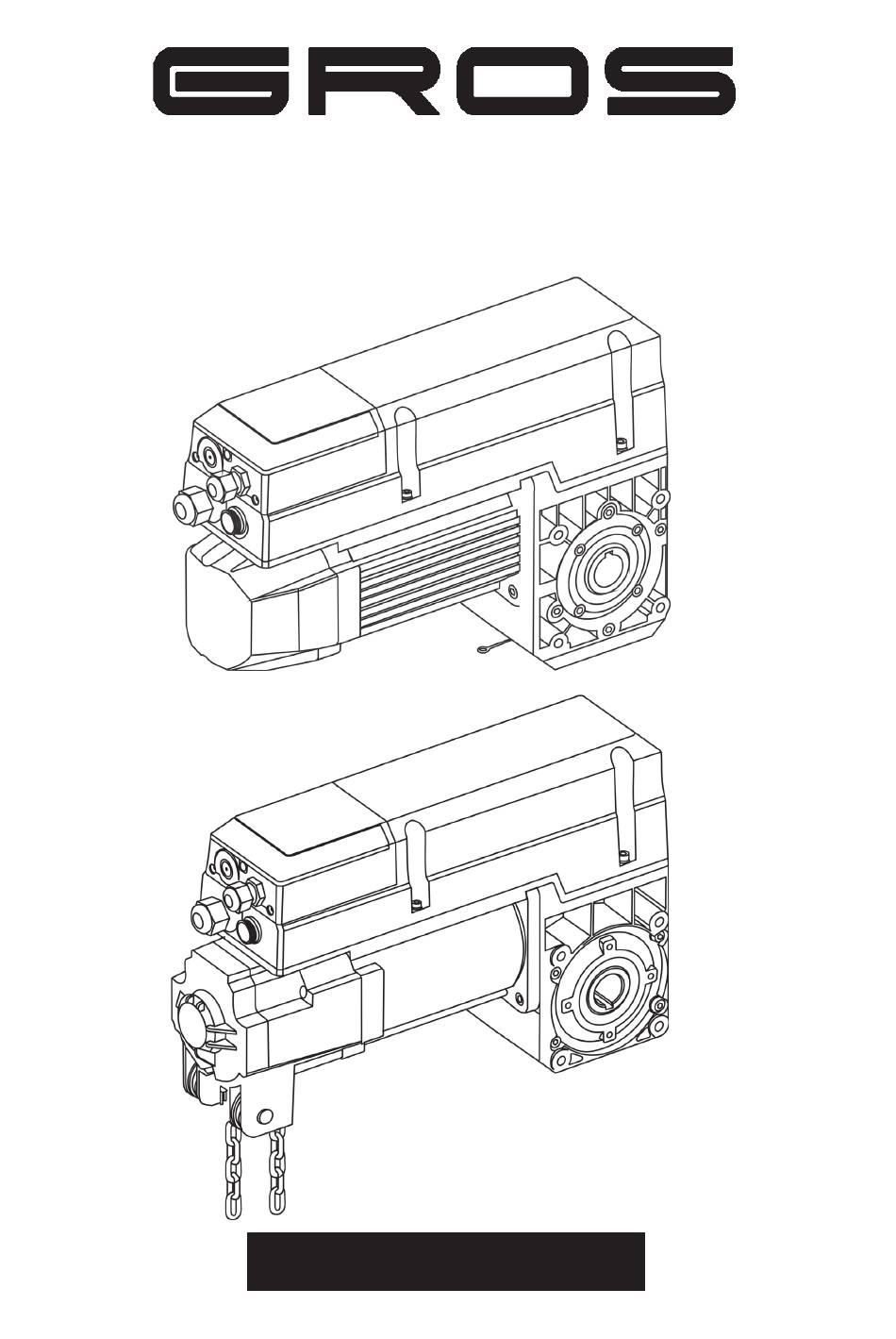

ASSEMBLY AND MANUAL OPERATION
FOR THE INDUSTRIAL MOTOR DRIVE
INDU DC 50/70

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INDU DC 50 and is the answer not in the manual?

Questions and answers

Summary of Contents for GROS INDU DC 50

  • Page 1 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50/70...

  • Page 2: Table Of Contents

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 TABLE OF CONTENTS Important safety recommendations........................................Technical data..................................................INDU DC 50 and INDU DC 70 dimensions...................................... Preparation.................................................... Mechanical assembly of chain hoist of motor drive.................................

  • Page 3: Technical Data

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 17. This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised or instructed in the use of the device by a person responsible for their safety.

  • Page 4: Indu Dc 50 And Indu Dc 70 Dimensions

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 INDU DC 50 AND INDU DC 70 DIMENSIONS INDU DC 50 INDU DC 70 PREPARATION DANGER! To avoid injury, observe the following points: - The motor drive must be installed without tensions, - The motor drive must not move on the shaft, - The structure and foundation of all components must be suitable for the forces involved.

  • Page 5: Mechanical Assembly Of Chain Hoist Of Motor Drive

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 MECHANICAL ASSEMBLY OF CHAIN HOIST OF MOTOR DRIVE INDU DC 50 (Fig. 2) Attach the chain hoist to the rear of the motor drive, (Fig.
  • Page 6 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 INDU DC 50 PERMITTED ORIENTATION OF MOTOR DRIVE: INDU DC 70 PERMITTED ORIENTATION OF MOTOR DRIVE: MOUNTING ACCESSORIES: Use provided components: Screws - M8*12 hexagonal flange - 4 pcs.

  • Page 7: Operating Mode Via Emergency Release (Applies Only To Indu Dc 50)

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 ASSEMBLY WITH A BRACKET: WARNING! To avoid damage of the motor drive and door, the motor drive must be mounted on a console or bracket so its vibrations are dampened.

  • Page 8: Operating Mode Via Gear Motor (Applies To Indu Dc 50 And Indu 70)

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 OPERATING MODE VIA GEAR MOTOR (APPLIES TO INDU DC 50 AND INDU DC 70) The emergency manual operation is designed to open or close the door during a power failure. Its activation interrupts the control voltage.

  • Page 9: Central Box - Motor Drive Operating Mode

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 CENTRAL BOx - MOTOR DRIVE OPERATING MODE Digital LED display: On first start-up, the display shows followed by a countdown from Without adjusted limit positions.

  • Page 10: Description Of The Central Box Functions

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 DESCRIPTION OF THE CENTRAL BOx FUNCTIONS AUTOMATIC DOOR CLOSING Action: SHORT PRESS IMPORTANT! CAUTION! The automatic door closing function „AUTO CLOSE” To change any setting of the conditions or time of...

  • Page 11: Table Of Functions

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 3. Briefly press to confirm the selected door guide type. The corresponding diode lits continuously for the door guide type “SL, HL, VL”. Then the display shows .

  • Page 12: Description Of Menu Functions

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 DESCRIPTION OF MENU FUNCTIONS MENU 0 Limit position settings Press and hold the SET button for approx. 6 seconds to access the limit position...
  • Page 13 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 TOTTMANN MODE IN BOTH DIRECTIONS Selecting the number means: Long press – open the door. Long press – close the door. TOTTMAN MODE IN DIRECTION OF CLOSING, AUTOMATIC MODE...
  • Page 14 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 1. 2 Press and hold the SET button for approx. 6 seconds to access basic function 1. 2 settings, the display will show Adjustment Press the „+”...
  • Page 15 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 MENU 2 Speed settings Press and hold the SET button for approx. 6 seconds to access speed settings, the display will show Speed of the closing Press the „+”...
  • Page 16 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Press and hold the SET button for approx. 6 seconds to access speed settings, the display will show Distance of slow Press the „+” button until the display shows...
  • Page 17 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 MENU 4 Time and conditions for automatic closing settings Press and hold the SET button for approx. 6 seconds to access time and conditions 4.
  • Page 18 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 means that the safety edge and/or light curtain identification function is activated. Press and hold the SET button for approx. 6 seconds to access safety function 5.
  • Page 19 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Performing a full cycle of opening and closing the door after resetting the limit positions of the door. • Press the „+” button to open the door fully and then press the „-” button to close the door.
  • Page 20 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Executes ONLY OPEN action of the door. Regardless of where the motor drive is located and what status is turned on, the motor drive will ONLY execute the OPEN action (including motion detector and infrared sensor).
  • Page 21 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Press and hold the SET button for approx. 6 seconds to access additional device function settings, the display will show Warning Press the „+” button until the display shows...
  • Page 22 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Before the motor drive starts, the relay contact is closed (time adjustable from 1 to 7 seconds). Press the SET button to confirm and access time setting directly.
  • Page 23 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 Press and hold the SET button for approx. 6 seconds to access additional device function settings, the display will show Safety edge Press the „+” button until the display shows...
  • Page 24 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 MENU 8 Maintenance alarm function settings Press and hold the SET button for approx. 6 seconds to access maintenance alarm function settings, the display will show Maintenance alarm Press the „+”...

  • Page 25: Common Faults And Solutions

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 COMMON FAULTS AND SOLUTIONS Appearance Cause of the fault Solution of the fault 1. Encoder failure. 1. Replace the encoder. 2. The encoder cannot record 2.

  • Page 26: Description Of Radio Receiver (Optional)

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 DESCRIPTION OF RADIO RECEIVER (OPTIONAL) The external radio uses the standard open code format HCS301, 868MHz. 2. Remote control with 4 buttons. 3. The radio receiver with central box use a standard USB interface as a connection.

  • Page 27: Schematic Connections

    ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 SCHEMATIC CONNECTIONS Main circiut board XH01 Input terminal – circuit board power supply (parts 1 and 2) - 24 V DC XH02 Output terminal – warning lamp, power supply 24 V DC / FA...
  • Page 28 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 XH06 Auxiliary relay output terminal Auxiliary relay ports, max. 100 W. Detailed information can be found NC/COM/NO in the function menu XH06-1 External relay module, max 100 W.
  • Page 29 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 DW self-test (not correct): briefly press the , button to close the door. The DW self-test is performed automatically when the door is closed to the limit position of closing. If the air pressure switch (DW) is not switched on during closing, the dis- E d.
  • Page 30 ASSEMBLY AND MANUAL OPERATION FOR THE INDUSTRIAL MOTOR DRIVE INDU DC 50 AND INDU DC 70 GROS SP. Z O.O. UL. STAROWIEJSKA 39 44-300 WODZISŁAW ŚLĄSKI www.gros.pl...
