- Page 1 KBC1 / KBC2 Installation and Operation Guide...
- Page 2 Connecting The Keyboard ................6 Using The Keyboard ..................7 Whilst every attempt is made to ensure these manuals are accurate and current, Dedicated Micros reserve the right to alter or modify the specification of the machine described herein without prejudice. Dedicated Micros ©2007...
-
Page 3: Introduction

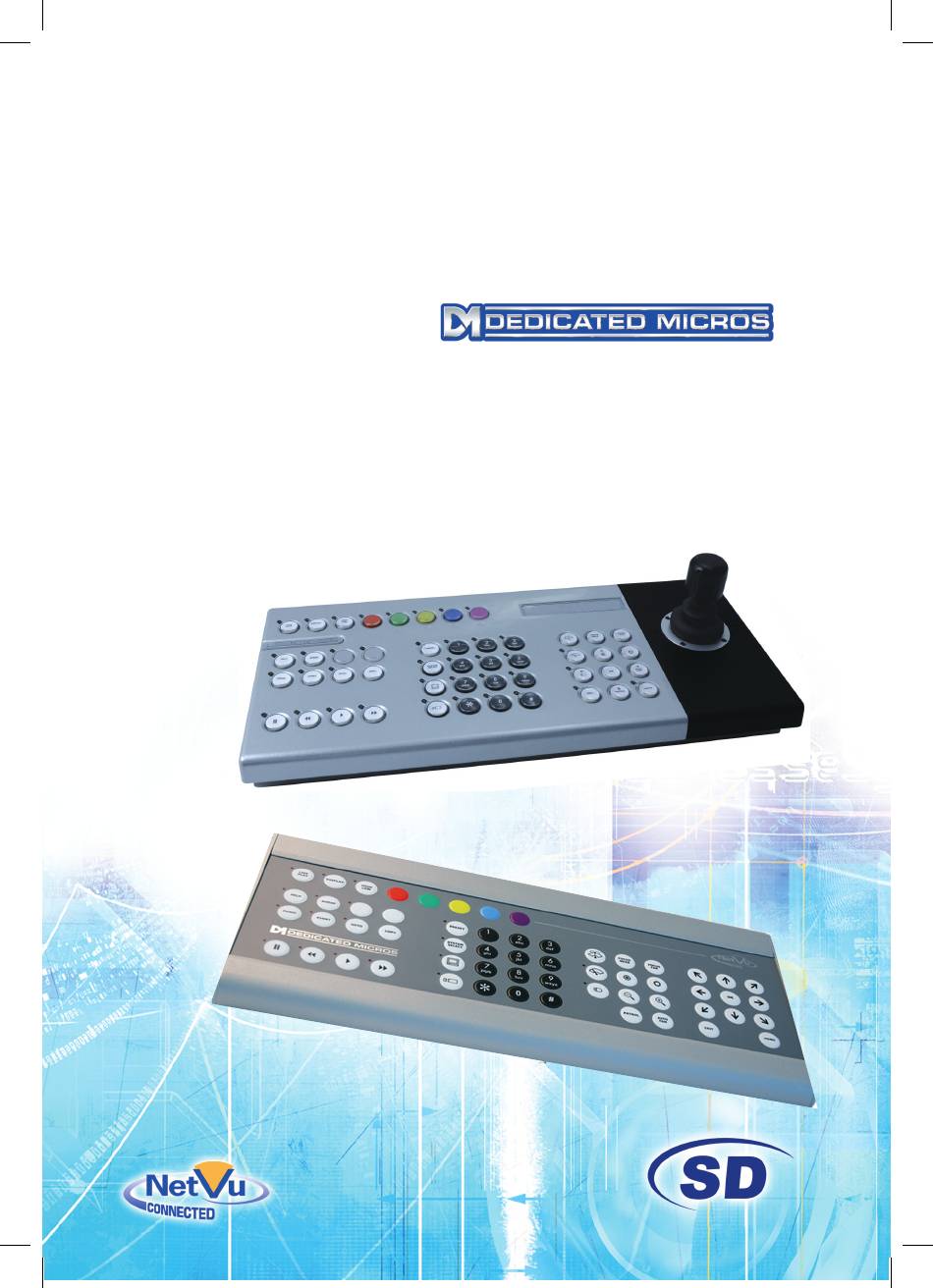

What are the … KBC1 / KBC Keyboards ? The Dedicated Micros KBC1/KBC2 remote digital keyboards allow products such as the SD DVR to be controlled remotely. The keyboards also include PTZ control with the 3-axis joystick on the KBC2 enabling an Operator to easily control pan, tilt and zoom functionality. -
Page 4: Important Safeguards
This reminder is provided to call the CCTV system installer’s attention to Art. 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. Dedicated Micros ©2007... - Page 5 CE Mark If this product is marked with the CE symbol it indicates compliance with all applicable directives. Directive 89/336/EEC. A ‘Declaration of Conformity’ is held at Dedicated Micros Ltd., 1200 Daresbury Park, Daresbury, Cheshire, WA4 4HS, UK. Dedicated Micros ©2007...
-
Page 6: Connecting The Keyboard
Remote Connection Both the KBC1 and KBC2 can be connected to a DVR over a distance of up to 1km, using a screened twisted pair cable. This configuration will require a breakout cable connection and a keyboard Power Supply Unit (PSU). -
Page 7: Using The Keyboard
Using The Keyboard DM/KBC1 Keyboard DM/KBC2 Keyboard Note: For full unit operation instructions, please refer to the product user manual. Dedicated Micros ©2007... - Page 8 Rewind mode - Increases the rewind speed. Pause mode - Steps back one frame. Live mode - Freezes the current display window. Play mode - Pauses video in playback. Live mode - puts the unit into playback using the last stored playback time. Dedicated Micros ©2007...
- Page 9 For future use. For future use. Triggers the wash function on a telemetry camera. Triggers the wipe function on a telemetry camera. Switches on the lamp on a telemetry camera. Adjusts the focus to objects nearer the camera. Dedicated Micros ©2007...
- Page 10 Pan and tilt control for telemetry cameras. Used as menu and on-screen navigation keys Pan and tilt control for telemetry cameras. In Play mode: Used to Mark Start/End positions. ln Live mode: Displays the Copy List and archive controls. Exits menus. Dedicated Micros ©2007...
- Page 11 Dedicated Micros ©2007...
- Page 12 Dedicated Micros Ltd. 1200 Daresbury Park, Daresbury, Cheshire, WA4 4HS, UK Dedicated Micros France Dedicated Micros, Australia PTY. 9-13 rue du Moulinet 5/3 Packard Avenue, Castle Hill, 75013 Paris, France NSW 2154, Australia Dedicated Micros Slovenia Dedicated Micros, Asia PTY...
