Summary of Contents for Tramontina JC-128VEL-F
- Page 1 BEVERAGE AND WINE CENTER User Manual JC-128VEL-F Thank you for purchasing this product! Please read the instructions carefully before using your product. If you have any questions about the product, please contact us via Amazon Message or customer service number: 213-4467172 or 661-4358826.
-
Page 2: Table Of Contents
Table of Contents Product Introduction ............. 2 Installation ................3-9 Defrosting ................10 Cleaning and Maintenance ..........10 Troubleshooting ..............11 Safety Warnings ..............12 Customer Service ..............13 - 1 -... -
Page 3: Product Introduction

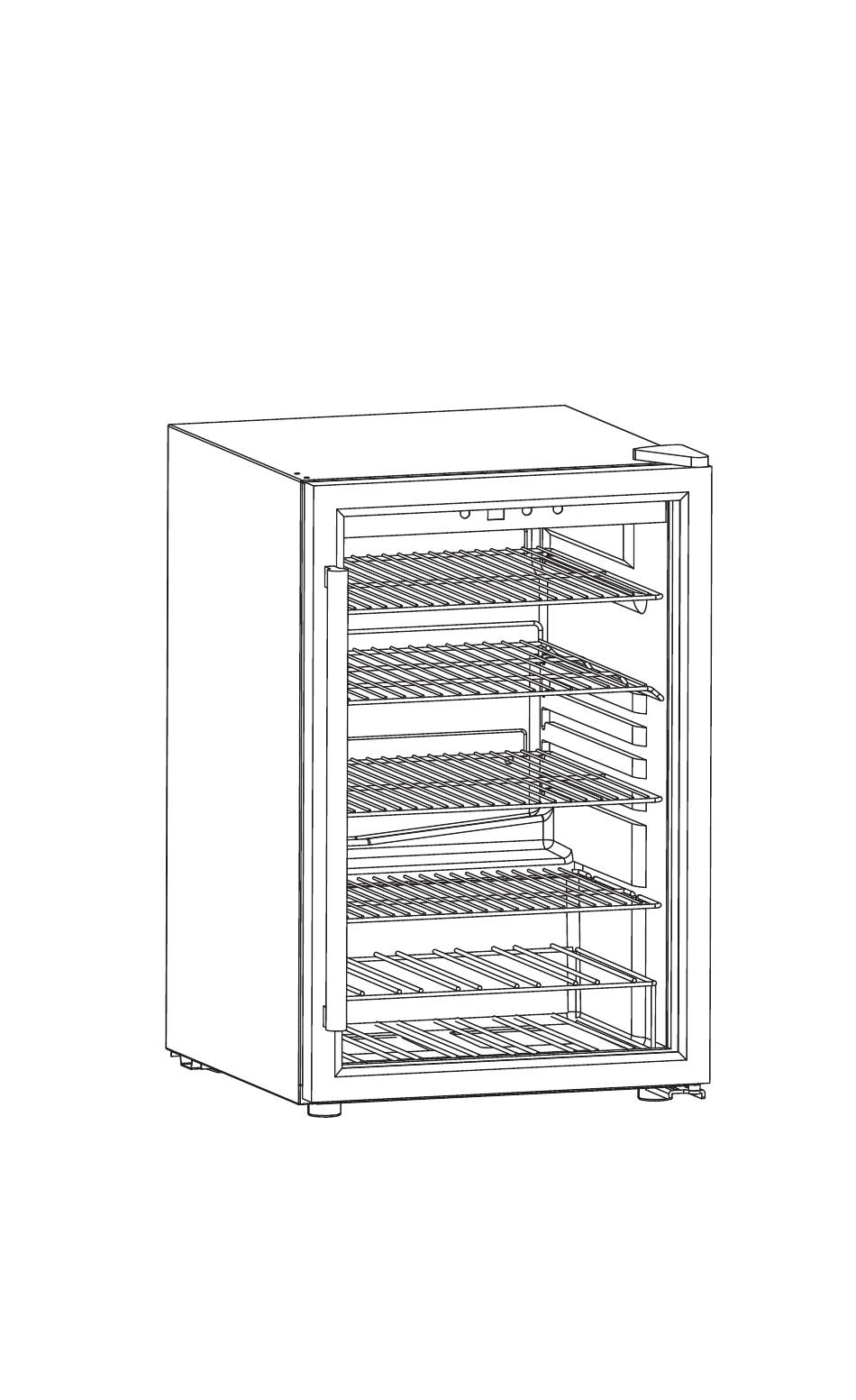

PRODUCT INTRODUCTION Fan and LED light Adjustable Wire Shelves Adjustable Front Leveling Legs Reversible Double Pane Glass Door with Stainless Steel Frame Stainless Steel Handle - 2 -... -
Page 4: Installation
INSTALLATION STOP! BEFORE YOU DO ANYTHING! Do not plug the wine and beverage center into a power outlet until it has been resting in its upright position for at least four (4) hours. If the wine and beverage center has been laid on its side, placed upside down or tilted more than 45°... -
Page 5: Power Supply
INSTALLATION POWER SUPPLY Fig. A This wine and beverage center is equipped with a 115V/60Hz single phase motor. Do not use a ground-fault circuit interrupter (GFCI) outlet to connect the unit. (Fig. A.) The power plug is a standard grounded three-prong non-polarized flush mount, which RESET allows for easier connection to power outlets. -
Page 6: Handle Installation
INSTALLATION HANDLE INSTALLATION TOOLS NEEDED: Phillips screwdriver #2. IMPORTANT: NEVER LAY THE WINE AND BEVERAGE CENTER ON ITS BACK. The compressor and motor components are installed at the back of the unit and may easily be damaged if the wine and beverage center is placed on its back. IMPORTANT: DO NOT USE STAINLESS STEEL HANDLE TO MOVE OR LIFT THE UNIT. -
Page 7: Door Reversal Instructions
INSTALLATION DOOR REVERSAL INSTRUCTIONS TOOLS NEEDED: Phillips screwdriver #2 or 5/16" (8 mm) socket tool and thin athead screwdriver. The wine and beverage center is shipped with the door hinge brackets attached on the right side. The door may be reversed to allow opening from the left side. If you plan on reversing the door hinges, DO NOT plug the wine and beverage center into the power outlet. - Page 8 INSTALLATION DOOR REVERSAL INSTRUCTIONS Remove screw and re-insert into the opposite side Remove Metal Switch Axel Base Bracket Insert Position With the unit on its side, remove the bottom metal Gently place the wine and beverage center on base bracket with nylon washer. Unscrew the axle opposite side to complete the door reversal.
-
Page 9: Loading Diagram
INSTALLATION USING YOUR WINE AND BEVERAGE CENTER Startup Connect the power cord to a standard wall outlet. Do not use a GFCI outlet to connect the unit (see page 4). After connection, you will immediately hear a short beep. Temperature - Adjustable Thermostat Control The default temperature is 43ºF. -
Page 10: Led Light
INSTALLATION LED LIGHT Press the button to turn the LED light on and off. To enhance the lifespan of the LED light and conserve energy, it is recommended to predominantly utilize the light for loading and selecting beverages. SHUTDOWN If the wine and beverage center will not be in use for a long period of time, disconnect it from the power outlet, clean inside thoroughly and leave the door open to prevent mildew. -
Page 11: Defrosting
For your protection, tempered glass is designed to shatter into many small pebble-size pieces. - If any replacement components are required, they must be obtained from Tramontina’s Customer Service Department. This ensures the correct replacement components are provided, and minimizes risk of possible ignition due to incorrect parts or improper service. -
Page 12: Troubleshooting
• Align the door using a 5/16” (8 mm) socket, adjusting the screws under the triangular bracket cover. For assistance, please contact Tramontina’s Customer Service Department. Side panel of wine and beverage center • The unit exchange heats through the side walls, therefore does is hot. -
Page 13: Safety Warnings
SAFETY WARNINGS Before you use your wine and beverage center, please read this owner’s manual carefully. Use this appliance only for its intended purpose as described in this owner’s manual. DANGER - Risk of child entrapment. Before you throw away your old refrigerator or freezer: •... -
Page 14: Customer Service
SAFETY WARNINGS REMOVE WINE & BEVERAGE CENTER DOOR BEFORE DISPOSING OF UNIT. The shelves should remain in the wine and beverage center for disposal. This deters children from climbing into the unit, becoming trapped and potentially suffocating. All safety precautions must be followed. - 13 -... - Page 16 Thank you for purchasing this product! If you have questions about assembly or operation of this product, are missing parts, or if the product is damaged, please contact us via Amazon Message or call 213-4467172 or 661-4358826 customer serve Phone: IMPORTANT Please call our customer service department for any questions or concerns:...
