Summary of Contents for Athletic ROWER 80RM

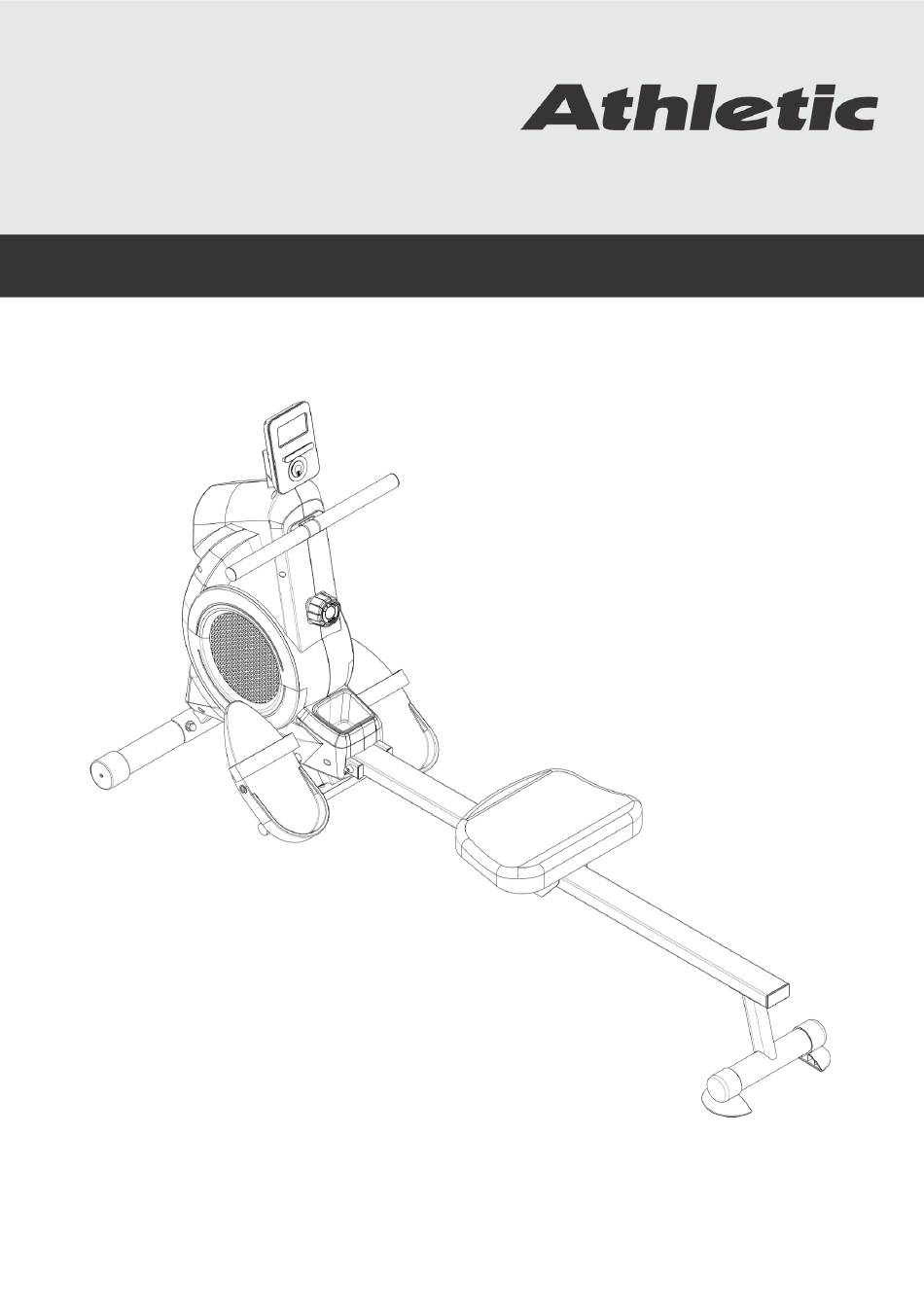

  • Page 1 ROWER 80RM Instruction Manual / Manual de Instrucciones...
  • Page 2 It is with great pleasure that we offer you the opportunity, guidance and encouragement to practice aerobic and muscular exercises, getting like this, the physical preparation needed to feel good. We guarantee a reliable and modern product, produced with high technology for people who care about their well-being.
  • Page 3: Table Of Contents

    CONTENTS SUMARIO SAFETY INFORMATION............................4 COMPONENTS AND TECHNICAL SPECIFICATIONS....................5 ASSEMBLY..............................7 MONITOR..............................11 ADJUSTMENTS GUIDE..........................12 WARRANTY..............................14 INFORMACIÓN DE SEGURIDAD......................15 COMPONENTES Y ESPECIFICACIONES TÉCNICAS................16 MONTAJE..............................18 MONITOR..............................22 GUIA DE AJUSTES...........................23 GARANTÍA...............................25...
  • Page 4: Safety Information

    SAFETY INFORMATION Observations Please read this manual before using the product and retain it for future reference to avoid the risk of heating, fire, electric shock, or injury. It is the owner's A. Manufacturer / Distributor is not responsible for responsibility to ensure that all users of the equipment accidents and their consequences arising from the are adequately informed of the safety precautions.
  • Page 5: Components And Technical Specifications

    COMPONENTS AND TECHNICAL SPECIFICATIONS 1. Monitor 2. Hand Grip 3. Tension control 4. Tower 5. Front feet 6. Pedal 7. Seat 8. Rear feet Product Packaged Net weight (approximate) 22kg Gross weight 25 kg Width 1420mm 1620 mm Width (carton box) Length 205mm 450 mm Height (carton box)
  • Page 6 COMPONENTS...
  • Page 7: Assembly

    ASSEMBLY NOTE: Place the packaging with the equipment on a level surface. It is recommended that you place a protective cover for your floor. Exercise caution when you are loading and transporting equipment. Unpack and assemble the equipment where it will be used. If necessary, ask the help of someone else.
  • Page 8 STEP 2 A. Insert Seat (32) onto the Sliding Rail (83). B. Attach Rear Stabilizer (40) to Sliding Rail (83) using 2 Bolts (44), 2 Spring Washers (43), and 2 Washers (23). Tighten and secure with Allen Wrench (B).
  • Page 9 STEP 3 A. Attach Bolt (21) into the upper hole of the Main Frame (24), then through Pedals (20L/R), and secure them using 2 Bolts(22), 2 Washers(23) by Allen Wrench (No. B). B. Connect Sliding Rail (83) to Main Frame 24) using Bolt (29), Washer (30), and Bolt (31).
  • Page 10 STEP 4 A.Secure Pedal tube(26) into the bottom hole of Main Frame (24) using 2 Bolts(28) with Allen Wrench (B). NOTE: The Pedals (20L/R) should rest on the bottom Pedal tube(26). B.Put Storage box(18) in the Chain cover(79).
  • Page 11: Monitor

    MONITOR BUTTONS Press this button to changeover display or choose the window needs to be set. i. In mon itor status, hold this button for 3 seconds to reset all value to zero FUNCTIONS 1.SCAN i: Press MODE button until “SCAN” appears , computer will rotate through all the 5 functions: Time, Count, Distance, Calorie and Total count.
  • Page 12: Adjustments Guide

    ADJUSTMENTS GUIDE 1.PEDAL ADJUSTMENT : The Pedal Strap(19) is adjustable and can be personalized to fit the user’s foot size. 2.ADJUSTING THE RESISTANCE Rotate the Tension Control Knob (56) clockwise to increase the level of resistance. Rotate the Tension Control Knob (56) counter-clockwise to decrease the level of resistance.
  • Page 13: Moving The Machine

    ADJUSTMENTS GUIDE 4.MOVING THE MACHINE To move the machine, lift up the Rear Stabilizer (40) until the transportation wheels on the End cap (13) touch the ground. With the wheels on the ground, you can transport the machine to the desired location with ease. 5.STORAGE When not in use, you can stand up the machine to save the space.
  • Page 14: Warranty

    The customer should unauthorized modifications, use of non- recommended consult the Athletic distributor in the country of purchase accessories, falls, punctures, use and installation not in for detailed information on warranty coverage and service.
  • Page 15: Información De Seguridad

    INFORMACIÓN DE SEGURIDAD Observaciones Lea este manual antes de usar el producto y consérvelo para consultarlo en el futuro para evitar el riesgo de A. El Fabricante/Distribuidor no es responsable de los calentamiento, incendio, descarga eléctrica o lesiones. Es accidentes y sus consecuencias derivadas de la violación de responsabilidad del propietario asegurarse de que todos los las características originales o montaje fuera de los ajustes usuarios del equipo estén adecuadamente informados sobre...
  • Page 16: Componentes Yespecificaciones Técnicas

    COMPONENTES Y ESPECIFICACIONES TÉCNICAS 1. Monitor 2. Agarre manual 3. Control de tensión 4. Torre 5. Pies delanteros 6. Pedal 7. Asiento 8. Pies traseros Producto Empaquetado Peso neto (aproximado) 22kg Gross weight 25 kg Anchura Anchura (caja de cartón) 1620 mm xxxmm Altura (caja de cartón)
  • Page 17 COMPONENTES...
  • Page 18: Montaje

    MONTAJE NOTA: Coloque el embalaje con el equipo sobre una superficie nivelada. Se recomienda colocar una cubierta protectora para el suelo. Tenga cuidado al cargar y transportar el equipo. Desembale y monte el equipo donde vaya a ser utilizado. Si es necesario, pida ayuda a otra persona. STEP 1 PASO 1 Fije el estabilizador delantero (12) al marco principal (24) con 2 pernos (15),...
  • Page 19 PASO 2 A. Inserte el asiento (32) en el riel deslizante (83). B. Fije el estabilizador trasero (40) al riel deslizante (83) con 2 pernos (44), 2 arandelas de resorte (43) y 2 arandelas (23). Apriete y asegure con la llave Allen (B).
  • Page 20 PASO 3 A. Coloque el perno (21) en el orificio superior del marco principal (24), luego a través de los pedales (20L/R) y fíjelos con 2 pernos (22), 2 arandelas (23) y una llave Allen (n.° B). B. Conecte el riel deslizante (83) al marco principal (24) con el perno (29), la arandela (30) y el perno (31).
  • Page 21 STEP 4 PASO 4 A. Fije el tubo del pedal (26) en el orificio inferior del marco principal (24) usando 2 pernos (28) con una llave Allen (B). NOTA: Los pedales (20L/R) deben descansar sobre el tubo inferior del pedal (26).
  • Page 22: Monitor

    MONITOR BOTONES Presione este botón para cambiar la pantalla o elegir la ventana que se debe configurar. i. En el estado de monitor, mantenga presionado este botón durante 3 segundos para restablecer todos los valores a cero FUNCIONES 1. ESCANEAR i: Presione el botón MODE hasta que aparezca “ESCANEAR”;...
  • Page 23: Guia De Ajustes

    GUÍA DE AJUSTES 1. AJUSTE DEL PEDAL: La correa del pedal (19) es ajustable y se puede personalizar para adaptarse al tamaño del pie del usuario. 2. AJUSTE DE LA RESISTENCIA Gire la perilla de control de tensión (56) en el sentido de las agujas del reloj para aumentar el nivel de resistencia.
  • Page 24: Desplazamiento De La Máquina

    GUÍA DE AJUSTES 4. DESPLAZAMIENTO DE LA MÁQUINA Para mover la máquina, levante el estabilizador trasero (40) hasta que las ruedas de transporte de la tapa del extremo (13) toquen el suelo. Con las ruedas en el suelo, puede transportar la máquina al lugar deseado con facilidad. 5.
  • Page 25: Garantía

    El cliente debe consultar al distribuidor de accesorios no recomendados, caídas, pinchazos, uso e Athletic en el país de compra para obtener información instalación no conforme al manual de instrucciones, cableado detallada sobre la cobertura y el servicio de la garantía.
