Summary of Contents for Pro PXD100 Series

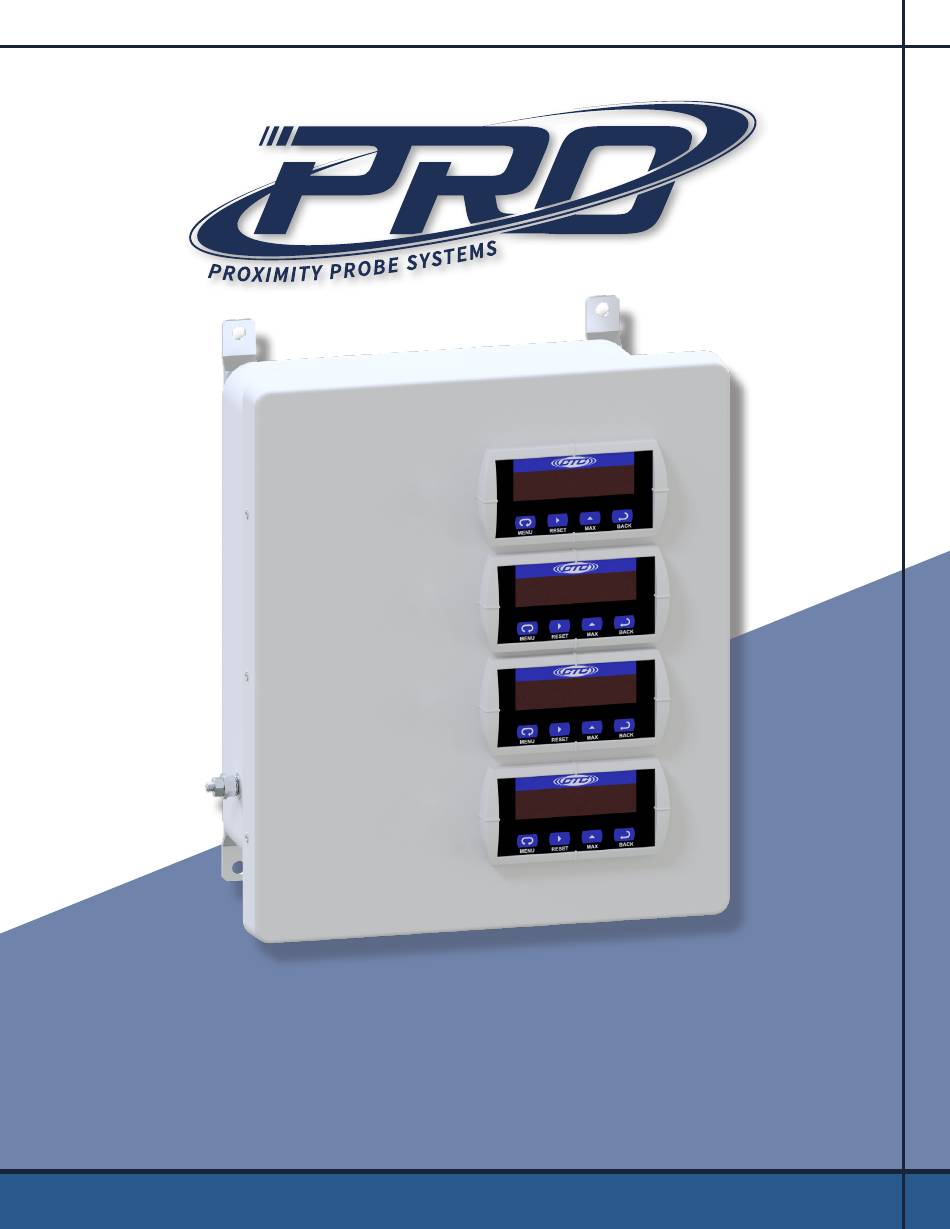

- Page 1 PXD100 Series Monitoring System PXD100 Series Monitoring System 4 Channel 4 Channel Product Manual Product Manual...
-
Page 2: Table Of Contents
Table of Contents • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 •... -
Page 3: Introduction
. The PXD100 Series system is contained within a standard fiberglass enclosure . Mounting brackets are provided for wall-mounting the enclosure (wall anchoring screws are not included) . -
Page 4: Product Dimensions And Diagram
Product Dimensions Front View Side View Figure 1. Dimensions Vibration/Displacement Level Displays Figure 2. Diagram... -
Page 5: Mounting Instructions
Mounting Instructions Independent stainless steel mounting feet are included on the enclosure . Wall anchoring screws are not included . Note: If you have purchased a PXD100 series enclosure without cable entries provided, you should add your own entry prior to mounting the enclosure . -
Page 6: Conduit Entry
Conduit Entry If you are running conduit to your enclosure, ensure the conduit cable entry enters from the bottom of the enclosure when mounted . Note: To ensure moisture will not flow into the enclosure, a hole should be drilled at the lowest point in the conduit to provide drainage for any moisture . -
Page 7: Grounding
Grounding Ensure the shield ground wire on the PXD100 Series enclosure is grounded to earth ground . A. Mounting to Earth Ground When mounting PXD100 Series enclosures to earth ground (such as an I-Beam), mount the shield ground wire using a mounting bolt through one of the mounting brackets on the enclosure . - Page 8 B. Mounting to Non-Grounded Structure When mounting the PXD100 enclosure to a non-grounded structure, ensure the shield ground wire or customer-supplied ground wire is tied to a source of earth ground . Figure 6. Ground Wire Placement...
-
Page 9: Electrical Connections
Figure 7. Front View Wiring Inputs and Outputs When purchasing proximity probe drivers with an PXD100 Series enclosure, CTC will install and wire the proximity probe drivers inside the enclosure prior to shipment . If a proximity probe driver requires a replacement post installation,... - Page 10 Wiring Single Channel Vibration (4-20 mA) Wiring Inputs Wiring Outputs Display Display Probe Driver Terminal Terminal Terminal Block Block Cable Terminal Block Block Cable Position Position Color Destination Position Position Color Destination White Power In (+) Yellow Normal Open Middle Brown Normal Black...
- Page 11 Wiring Power In order to supply power to the proximity probe drivers, the PXD100 features a terminal for power input and a circuit breaker . Below is the wiring configuration to bring live power into the enclosure . Note: Do not connect proximity probe drivers to live AC power.
-
Page 12: Configuring Relays
. The transmitter will not display any vibration energy present at frequencies outside the filtering range . Refer to the user manual for your specific PRO proximity probe driver for instructions on calibration and operation . Example: 8 mm Probe System w/ “90” Series Radial Driver, Full Scale Range... -
Page 13: Troubleshooting
“diS1” as 0 .00 then “inP2” as 20 .00, then “diS2” as 10 .00 . This will create an input of 4 .0 mA, display 0 .0 mils of vibration pk-pk, and at an input of 20 .0 mA, 10 mils pk-pk of vibration will be displayed on the meter . -
Page 14: Contact Information
Warranty & Refund Please visit www .ctconline .com to view a complete recapitulation of our warranty and refund policies . Contact Information Connection Technology Center, Inc . (CTC) 7939 Rae Blvd . Victor, NY 14564 1 .585 .924 .5900 sales@ctconline .com www .ctconline .com Mm-Pxd100-4/Rev A...
