- Page 1 GEFORCE ® 3D VISION ™ QUICK START GUIDE...
-
Page 2: Minimum System Requirements
SySTEm REQUIREmENTS Thank you for choosing NVIDIA GeForce 3D Vision ® ® ™ the most immersive gaming experience for the PC. Before you begin, please review the following minimum system requirements to ensure your PC is properly configured to enjoy the GeForce 3D Vision experience. - Page 3 EQUIPmENT The following parts and assemblies are included in the NVIDIA GeForce 3D Vision box. Wireless Glasses IR Emitter DVI-to-HDMI Cable Two USB Cables (For use with DLP HDTVs) (6 foot and 10 foot) Cleaning Pouch VESA 3-pin Stereo Cable...
-
Page 4: Wireless Glasses

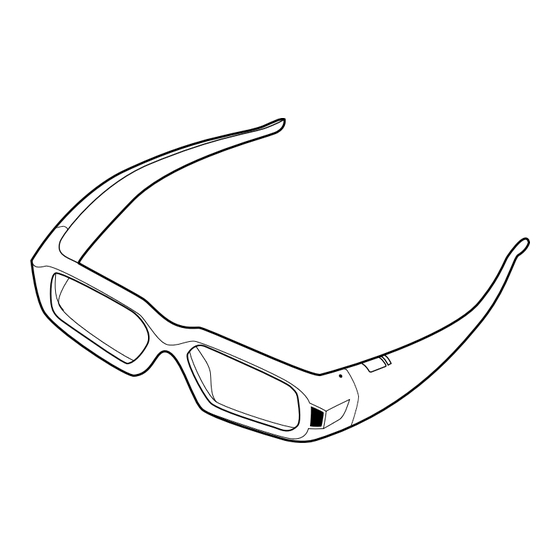

EQUIPmENT IN-DEPTH Wireless Glasses IR Receiver Do not block ON button Press for battery life status Indicator light The GeForce 3D Vision glasses hold approximately 40-hours of gaming per full charge. Flashing red indicates less than two hours of charge remaining. - Page 5 IR Emitter Thumbwheel to adjust stereoscopic depth in game VESA Stereo Cable Port For DLP HDTVs, connect VESA stereo cable to display Power indicator light Back of IR Emitter USB connection to computer Backlit GeForce 3D Vision ON/OFF button Front of IR Emitter Note: The effective range of the IR Emitter is 15 feet.
-
Page 6: Installation And Setup
> Restart your computer * If you are replacing a non NVIDIA graphics card, be sure to remove the graphics driver and power down your system to replace the card before continuing. Insert the GeForce 3D Vision Software and Manuals CD drivers. - Page 7 Test your hardware setup. This screen is used to verify that your hardware is properly configured to view stereoscopic 3D effects and that your glasses and emitter are functioning properly. Follow the directions on the screen. If you cannot see the proper images, the Setup Wizard will not continue until the hardware issue is resolved.
- Page 8 INSTALLATION AND SETUP (CONTINUED) (For LCD displays only) Do you notice flicker in your peripheral vision when looking through the glasses? If you are seeing excessive flicker in your peripheral vision, this screen allows you to change the refresh rate of your display. When you select Yes, the refresh rate options are displayed.
- Page 9 3D. Attention: If you fail the medical test and can not see the test image, NVIDIA recommends that you do not use GeForce 3D Vision. Please consult your eye doctor for any possible vision anomalies. GeForce 3D Vision will not be enabled.
-
Page 10: Game Compatibility
NVIDIA Control Panel with their Compatibility rating. To open the NVIDIA Control Panel, right click on the desktop and select the NVIDIA Control Panel. You can also go to Start › NVIDIA Corporation › NVIDIA Control Panel. Select View compatibility with games from the topics in the left window pane. - Page 11 Check this box to see only those games loaded on your system. Unchecked, all games tested by NVIDIA are listed. NVIDIA is continually updating the list of supported games. Please go to www.nvidia.com/3dvision for the latest list of games.
- Page 12 CONFIGURATIONS DLP HDTV Connection Diagram HDMI Port IR Emitter VESA 3-pin stereo cable 3D Glasses Emitter Port DVI-to-HDMI Cable USB Cable Attention: Check your DLP’s manual to see if there is a specific HDMI port used to connect a PC to your HDTV. In addition, change the input mode on the TV’s menu to PC or Computer to ensure the TV can process the video signal correctly.
- Page 13 120 Hz LCD Connection Diagram IR Emitter USB Cable Dual link DVI cable (supplied with the display)
- Page 14 www.nvidia.com...
