- Page 1 XAG DL1 Data Link User Manual Version 1.0...
- Page 2 To User Dear user, thank you for choosing XAG's product. For safety purposes and better user experience, it is highly recommended that you read this manual carefully and strictly follow the instructions hereof. Contact Us Manufacturer: Guangzhou Xaircraft Technology Co., Ltd.
-
Page 3: List Of Items
Introduction XAG DL1 Data Link (hereinafter referred to as "Data Link") provides long-range Wi-Fi link for XAG's smart agricultural devices, which improves the signal strength of the dedicated Wi-Fi link and extends its communication range. It serves as a link repeater between the remote controller and the drone, so that the remote controller can reach further, making it possible to operate in the vehicle, or in the case of high crops or fruit trees. -
Page 4: Main Components

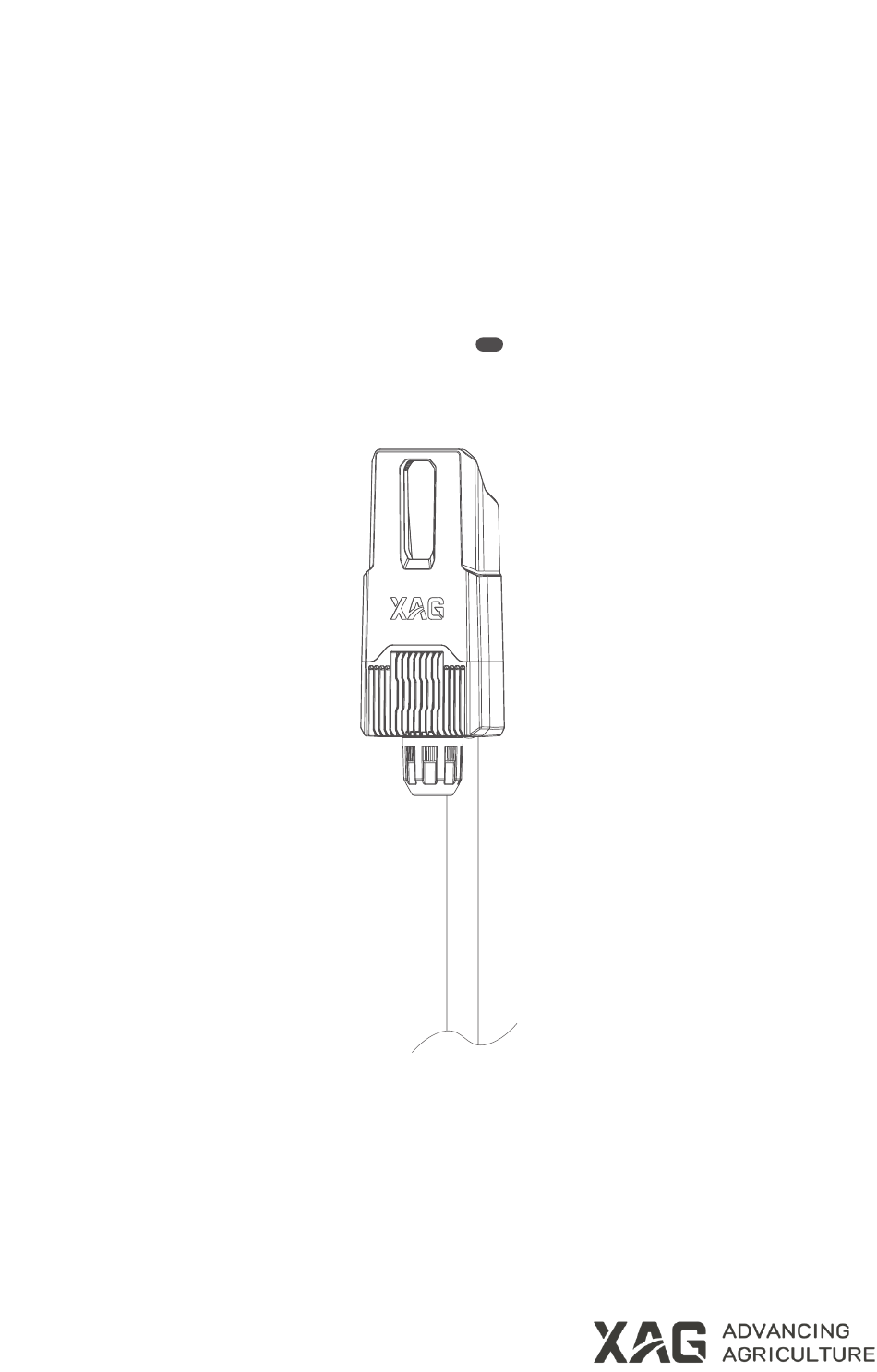

Main Components Wi-Fi Antenna Waterproof Connector Charging Port Indicator Power Button Bottom View Power Button Action Description Short Press Battery Level Long Press Power On/Off www.xa.com/en... - Page 5 Indicator The indicators will show you the current status of the Data Link. The definitions are as follows. Indicator Status Description Solid red Battery level 1% - 20% Solid Yellow Battery level 21% - 50% Solid Green Battery level 51% - 100% Power Blinking Red Charging.
-
Page 6: How To Use
How to Use Charging ① Remove the waterproof connector assembly by turning it counterclockwise, and separate the waterproof connector, waterproof silicone, and waterproof collet. ② Pass the Type-C cable through the holes of the connector, silicone, and collet, and plug it into the charging port of the Data Link;... -
Page 7: Firmware Update
Add a Device Before using the Data Link for the first time, it is necessary to follow the steps below to add it to XAG One on your mobile phone or the SRC4 Smart Remote Controller (hereinafter referred to as the "remote controller"). -
Page 8: Device Pairing
After adding the Data Link, it is necessary to pair it with the operating device in the device list. Here are the steps for pairing. 1. Open "XAG One" App, tap on "Device" on "Me" screen, and select the Data Link that needs to be paired. - Page 9 • Please pay attention to the safety protection during installation to avoid personal injury or safety accidents caused by falling device. • Before use, please make sure that the firmware version and the "XAG One" App have been updated to the latest version.
-
Page 10: Specifications
-20 ℃ ~ 45℃ / -4 ℉ ~ 131 ℉ (within 1 month) SRRC: 2,000 m Max. Communication Distance FCC: 2,000 m (no interference/obstruction) CE/MIC: 1,000 m XAG P150 2024 Agricultural Drone Compatibility XAG P60 2024 Agricultural Drone XAG Smart Remote Controller 4 www.xa.com/en... -
Page 11: Compliance Information
Compliance Information FCC Compliance Notice Note: This equipment has been tested and found to comply with the limits for a Class A digital de- vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 12 RF exposure compliance. Warning: Operation of this equipment in a residential environment could cause radio interference. “Hereby, [Guangzhou Xaircraft Technology CO.,LTD.], declares that this [DL1 Data Link] is in compliance with the essential requirements and other relevant provisions of 2014/53/EU.
- Page 13 NCC statement 取得審驗證明之低功率射頻器材，非經核准，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原 設計之特性及功能。低功率射頻器材之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立 即停用，並改善至無干擾時方得繼續使用。前述合法通信，指依電信管理法規定作業之無線電通信。低功率 射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 Without permission granted by the NCC, any company, enterprise, or user is not allowed to change frequency, enhance transmitting power or alter original characteristic as well as performance to a ap- proved low power radio-frequency devices. The low power radio-frequency devices shall not influence aircraft security and interfere legal communications;...
- Page 14 7. To the maximum extent permitted by law, XAG shall not be liable for any losses caused by user's improper operation. In addition, XAG shall not be liable for any indirect, consequential, punitive, accidental, special, or exemplary damages, including any loss incurred as a result of your purchase, use, or inability to use the product (even if you have been advised of the possibility of such loss).
- Page 15 13. To the extent permitted by law, all interpretations and revisions of the terms and conditions stated hereinabove are at XAG's sole discretion, and XAG's decisions will be final. XAG also has the right to update, modify, or terminate these terms and conditions via its official website, User Manual, online App, etc., without prior notice.
- Page 16 @XAGofficial @xag_official @XAG Official This User Manual is subject to update without prior notice. ©Guangzhou Xaircraft Technology Co., Ltd. All Rights Reserved. All information in this User Manual (including but not limited to any text description, illustrations, photos, methods, processes, etc.) belongs to Guangzhou Xaircraft Technology Co., Ltd.
