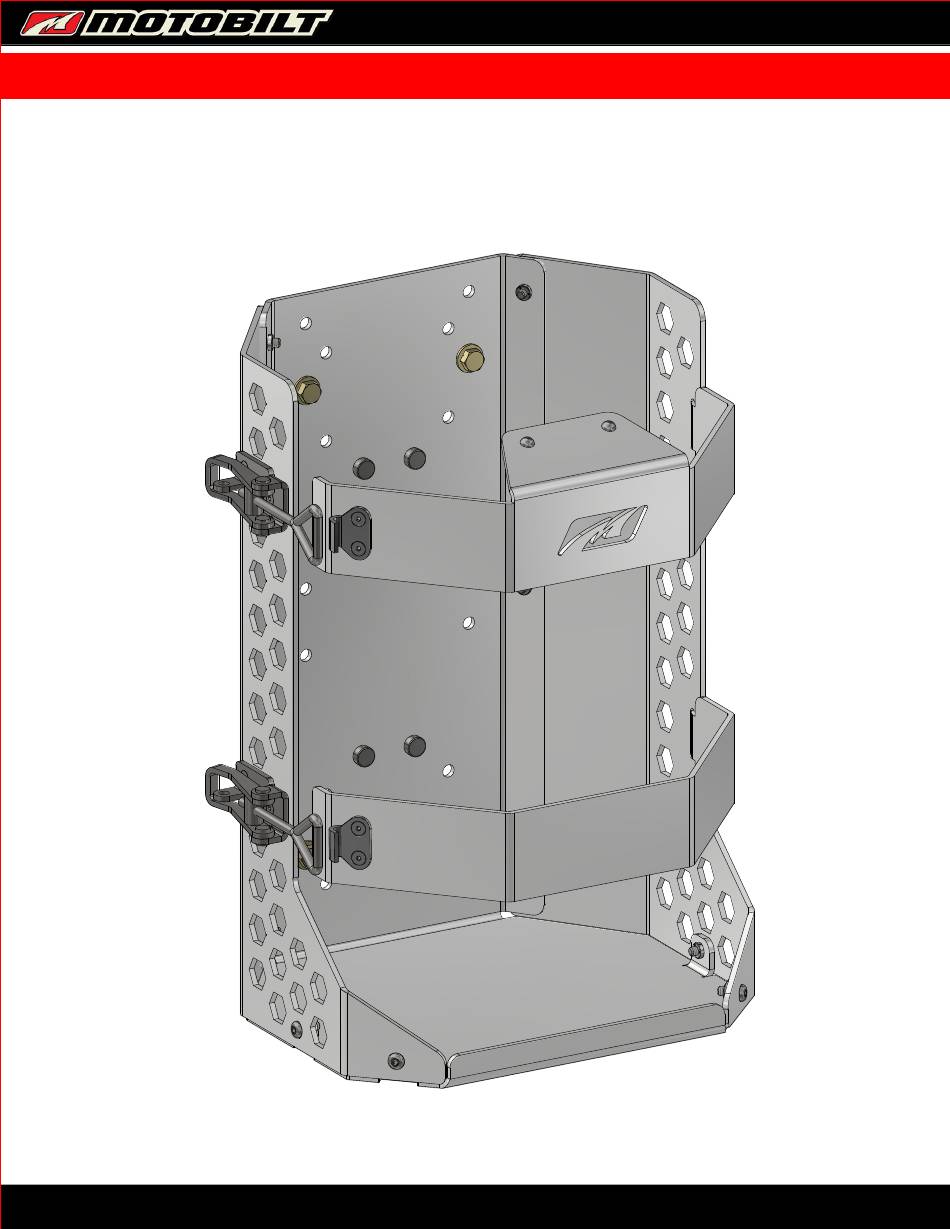

- Page 1 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder MB5088-10 10 POUND PROPANE TANK HOLDER MOTOMOUNT SERIES ASSEMBLY INSTRUCTIONS motobilt.com | 334-219-2333...
- Page 2 3/16" Press In Bumper Counter Sunk Qty 10 Qty 6 Machine Screw Qty 10 1/4"-20 - Nylon Insert Locknut 1/4 - 20 x 3/4" Hex Bolt 1/4" Washer 10-24 x 1/2" BHCS Qty 4 Qty 4 Qty 8 Qty 10 motobilt.com | 334-219-2333...
- Page 3 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder ASSEMBLE SIDES OF MOUNT MB5088-10-01 MB5088-10-03 MB5088-10-02 10-24 x 1/2" BHCS motobilt.com | 334-219-2333...
- Page 4 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder PRESS IN RUBBER BUMPERS 3/16" Press In Bumper motobilt.com | 334-219-2333...
- Page 5 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder ATTACH LATCHES #8-32 Hex Nut Toggle Clamp MB5088-10-04 #8-32 x 3/8" Counter Sunk Machine Screw MB5088-10-05 Toggle Clamp Keeper motobilt.com | 334-219-2333...
- Page 6 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder FASTEN TO DESIRED LOCATION 1/4"-20 - Nylon Insert Locknut 1/4" Washer 1/4 - 20 x 3/4" Hex Bolt motobilt.com | 334-219-2333...
- Page 7 REV: MB5088-10 - Assembly Instructions 10 Pound Propane Tank Holder motobilt.com | 334-219-2333...
