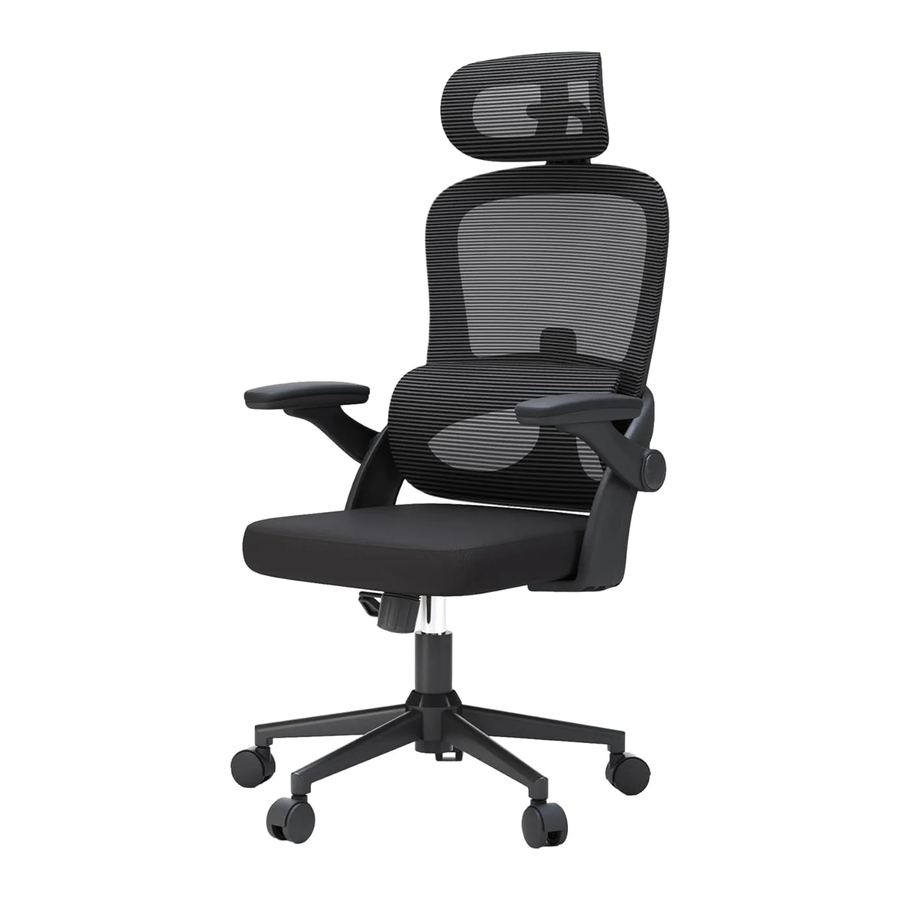

SIHOO M102C Manual

Introduction

We hope our products can enhance your comfort and promote a healthy lifestyle.
We take pride in offering a comprehensive three-year warranty for all Sihoo products, supported by round-the-clock customer service to guarantee your utmost satisfaction.
Should you require any assistance, please do not hesitate to contact us at
service@sihoooffice.com
Kindly note: To expedite our services, kindly include your order number when reaching out to our customer support.

ABOUT US

Sihoo is a renowned specialist in ergonomic furniture, dedicated to offering healthy and comfortable ergonomic chairs. With a 12-year emphasis on technology and well-being, Sihoo's mission is to enhance people's lives through innovative and ergonomic furniture solutions. Presently, Sihoo's ergonomic chairs are available in over 100 countries and have garnered acclaim among Fortune 500 companies, as well as in more than 10 million households worldwide.

Work on gas springs only by trained specialist personnel.

Parts List

(Please refer to the actual size. Each type of screw and washer has one reserved as a spare.)

Key	Description	Part	Qty	Spare
A	Base		1
B	Chair leg tubes		5
C	Armrests		1 pair
D	Armrest fixing device		1 pair
E	Armrest decorative cover		1 pair
F	Seat cushion		1
G	Gas lift		1
H	Mechanism		1
I	Lumbar support		1
J	Headrest		1
K	Headrest and backrest /armrest screws (M6X25)		10	1
L	Armrest screws (M6X35)		6	1
M	Mechanism screws (M6X20)		4	1
N	Chair leg screws (M6X14)		10	1
O	Backrest		1
P	Lumbar support kgnob		1
Q	Wheels		5
R	Headrest decorative cover		1
S	Wrench		1

Note: Please sort the screws and measure their lengths beforehand for easier assembly.

Assembly Instructions

First, separate the base into two parts: the decorative cover and the chair leg base.
Use 10 M6X14 screws to connect the five chair leg tubes to the base.
Insert the wheels into the chair legs, then snap the decorative cover onto the chair legs. Finally, insert the gas lift into the middle hole of the base.
Use four M6X20 screws to connect the seat cushion to the mechanism, ensuring correct front and back alignment.
Insert the lumbar support into the backrest slot hole and tighten the lumbar support knob clockwise.
Use two M6×25 screws and the armrest fixing device to connect the armrest bracket and the backrest connector. Finally, put on the armrest decorative cover. Ensure the armrest bracket intersects with the convex curve of the backrest connector.
Use 4 M6X25 screws to connect the backrest and armrests. Use a wrench to tighten them clockwise to 80% tightness.
Use 6 M6X35 screws to connect the seat cushion and armrests. Use a wrench to tighten them clockwise while also tightening the screws connecting the backrest and armrest.
Align the assembled upper part of the chair with the gas lift and insert it.
Align the headrest with the holes on the upper part of the backrest, and use 2 M6X25 screws to install the headrest. Use a wrench to tightenthem clockwise, and finally install the headrest decorative cover.

Operation Instructions

(Please refer to the actual size.)
Operation Instructions

Safety Installation

Each chair is designed to support the weight of one person only.
Please use the chair on a flat, even surface.
Do not allow children under the age of 5 to sit on the chair without supervision.
Avoid sitting on the armrest to prevent potential accidents.
Do not stand on the chair, use it as a ladder, or step on it.
Please refrain from placing excessive weight on the chair or using it as a makeshift trolley.
Avoid using sharp or pointed objects that could damage the chair, and keep it away from open flames or sources of heat.
For your safety, do not attempt to disassemble the gas lift mechanism.
