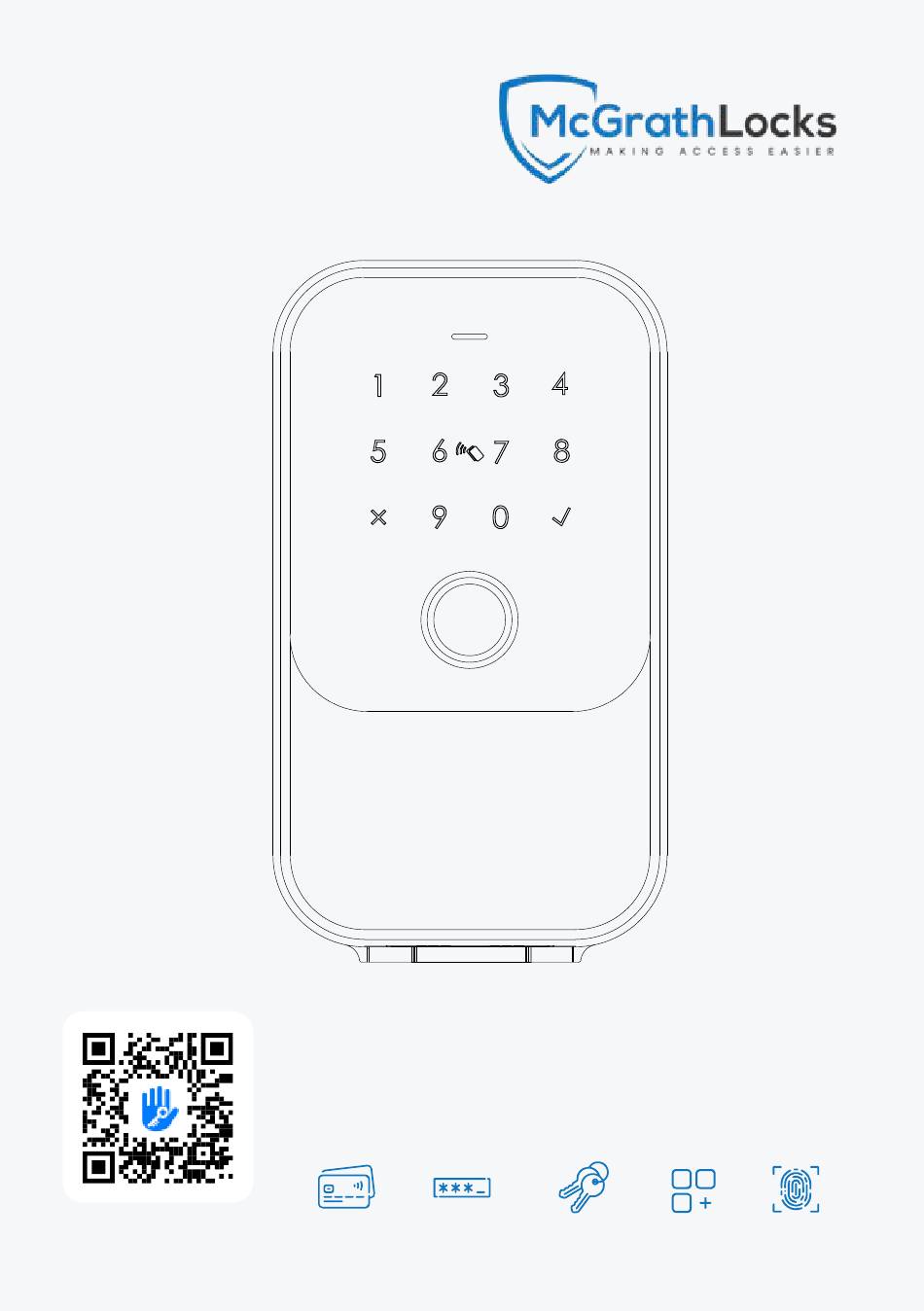

- Page 1 Smart KEYSAFE User Manual TTLOCK VERSION Download and Install the App Enable your smart phone to scan QR code to download the App. Also you can search “TTLock” on App store or Google play to download the App. mcgrathlocks.com.au RFID Card Pin code Key Override Fingerprint...
- Page 2 Contents Please ensure you have the listed accessories below in the box. 1 piece 2 pieces 4 pieces 4 pieces KEYSAFE Mechanical key (D4x30mm) (D6x30mm) Wood screw Wall plug 2 pieces 1 piece 1 piece 1 piece RFID Fob Manual (Type C) Shackle USB cable...
-
Page 3: Product Specification
Product specification FRONT Indicator light Keypad Card reader area Fingerprint sensor Key override Type-C... - Page 4 INSIDE Shackle release Main housing Battery compartment Reset button Front shell Protective cover mcgrathlocks.com.au...
-
Page 5: Technical Specifications
Technical Specifications Main material Aluminum alloy, zinc alloy, tempered glass Colour Black Installation type Wall mount or hang by using shackle Communication BLE 5.0 Support system iOS 7.0 or above, Android 4.3 or above Battery life 5000 times normal unlock (10-12 month Power supply DC6V: 4pieces AAA alkaline batteries Static current... -
Page 6: Installation Steps
1. Installation steps 1.1 Wall mount Select a suitable height from the ground. 1.1. 1 Wall mount (Brick wall) 1. Remove rubber plugs 2. Use KEYSAFE as template Plug 3. Drill hole & install wall plugs 4. Install screws Drilling depth: (D6x40mm) Masonry bit... - Page 7 1.1. 2 Wall mount (Timber) 1. Remove rubber plugs 2. Use KEYSAFE as template Plug 3. Drill hole 4. Install screws Drilling hole (D2x40mm) Twist drill...
- Page 8 1.1. 3 Battery installation Insert 4pcs AAA alkaline batteries and fix the battery box cover 1.1. 4 Operation test Lower the protective cover. Test fingerprint or pin code to unlock the KEYSAFE. 1.1. 5 Key override test Insert key and test override operation. Do not store the keys in the KEYSAFE.
- Page 9 1.2 Hanging KEYSAFE 1.2. 1 Unplug 1.2. 2 Battery installation Insert 4pcs AAA alkaline batteries and fix the battery box cover. Rubber plug 1.2. 3 Shackle locking - knob 1.2. 4 Shackle unlock - knob Connect the shackle and KEYSAFE Push the shackle release upward to detach the shackle from the KEYSAFE.
- Page 10 1.2. 5 Operation test 1.2. 6 Key override test- knob *Lower the protective cover. Insert key and test override Test fingerprint or pin code to operation. Do not store the keys unlock the KEYSAFE. in the KEYSAFE.
- Page 11 2. TTLock App settings Please download the TTLock from Apple store or Google play. Also you can scan the QR code below to download the App directly. 2.1 Register Please register an account with your Email or mobile number. 2.1. 1 Sign up and register 2.1.
- Page 12 2.2 Configure the lock Please run the TTLock App and click “Add LOCK” on the leftside of screen setting and follow the steps to configure the lock: 1. Add lock 2. Click “All Locks” 3.Press+ choose first lock 4. Add lock successfully 5.
- Page 13 2.3 Function description In the KEYSAFE operations screen you will see features for the KEYSAFE such as eKeys, pin codes, Fingerprints, Cards and lock and unlock records etc There are many features within the TTLock App. Configure the KEYSAFE to suit your requirements.
- Page 14 2.4 Enrol user fingerprint Under the lock setting, you can click the “Fingerprints” and enrol the fingerprint. There is permanent/timed and recurring options depending on the access requirement. 1. Add fingerprint 2. Choose permanent type 3. Click start 4. Press fingerprint 4 times...
- Page 15 2.5 Enrol user pin code Under the lock setting, you can click the option “Pin codes” and enrol the pin codes. There is permanent /timed and recurring options depending on the access requirement. 1. Add pin code 2. Choose timed type 3.
- Page 16 2.6 Enrol eKeys Under the lock setting, you can click the option ”eKeys” and issue an eKey to other users. There is permanent /timed and recurring eKeys for different requirements. 1. Send eKey 2. Choose timed type 3. Complete, you can share with SMS to recipient...
- Page 17 2.7 Passage mode Under the lock setting, you can tick ”Passage mode”, under this setting the KEYSAFE will be in always open state, you can disable the passage mode in the App. Reset KEYSAFE In settings you can factory reset the KEYSAFE by clicking the red “delete” button.
- Page 18 Remote unlock function (requires Gateway) The Wi-Fi gateway is required to enable the remote unlock function, please refer the parameters below: Model: G2 Dimension: 70x70x26mm Network: Wi-Fi 2.4G IEEE Standard: 802.11b/g/n Power Interface: Type-C USB Power Input: DC5v/500mA Light Status When the gateway is power on: Light flashes alternately with red and blue;...
- Page 19 5. Connect the Gateway to power, 4. Select [G2] when the light flashes red and 6. Press the “+” blue alternately 8. Select WiFi and 9. Finish paring 9. Add Gateway enter password gateway Note: If Gateway times out disconnect and reconnect power and retry process. Remote unlock Turn on remote unlock function In the lock settings tab as per below photo.
-
Page 20: Troubleshooting (Faq)
Troubleshooting FAQ Can I use my fingerprint upon first powering the KEYSAFE? After finishing installation and powering the KEYSAFE for the first time it will accept any fingerprint to unlock the KEYSAFE until you configure the safe with the TTLock App. What kind of battery is required? The KEYSAFE is recommended to be powered with 4 x AAA Alkaline batteries of good quality... - Page 21 The batteries have gone flat in my KEYSAFE, what can I do? Insert the override key in the cylinder and turn or connect a power bank via the USB-C slot for an emergency open. Remove the Insert the key into the Pull to open the silicone plug.
- Page 22 Smart KEYSAFE User Manual TTLOCK VERSION mcgrathlocks.com.au...
