Revolution Micro RLC-1 Owner's Manual

Digital lighting controller
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

Owner's Manual
RLC-1 DIGITAL LIGHTING CONTROLLER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLC-1 and is the answer not in the manual?

Questions and answers

Summary of Contents for Revolution Micro RLC-1

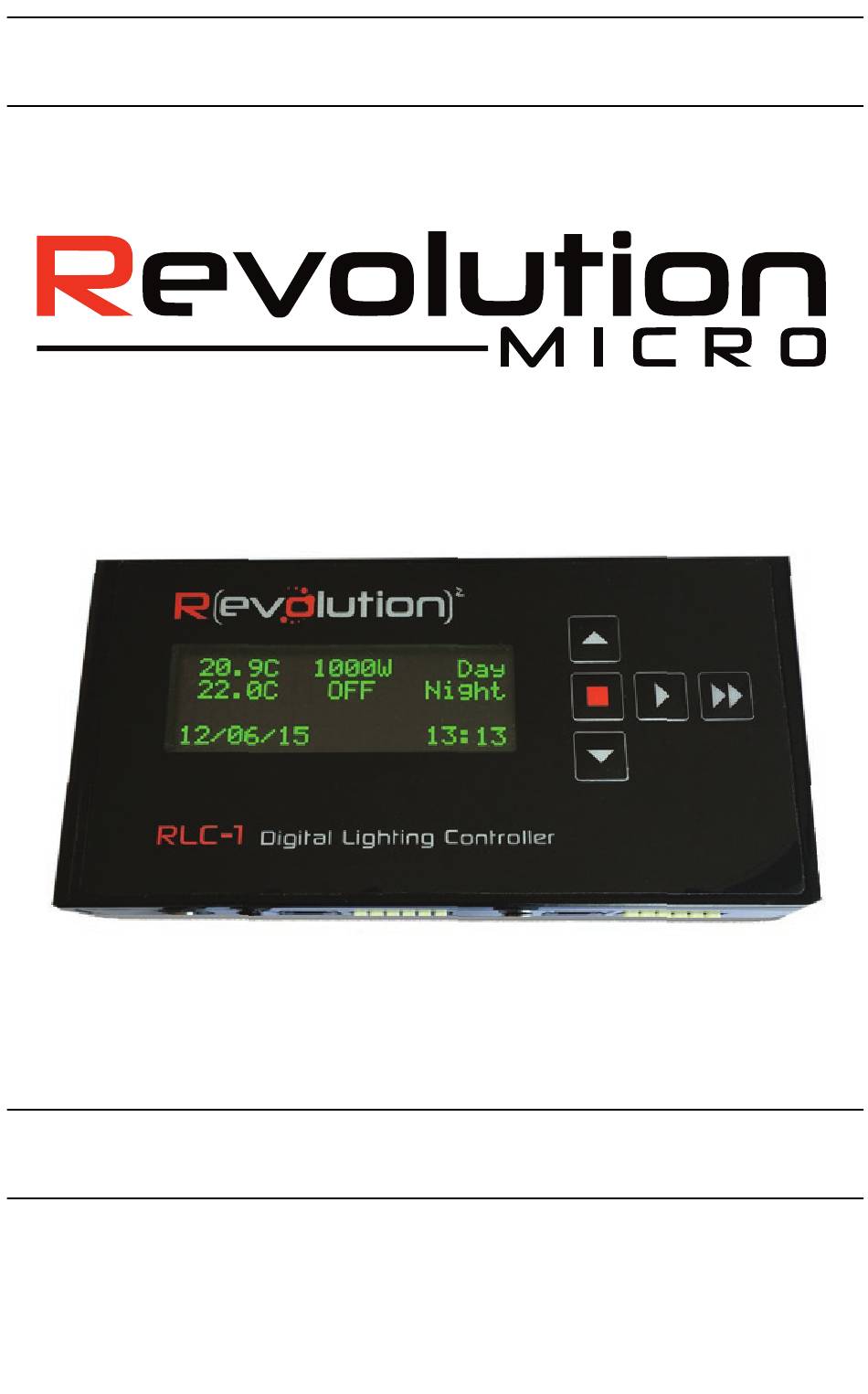

  • Page 1 Owner’s Manual RLC-1 DIGITAL LIGHTING CONTROLLER...
  • Page 2 RLC-1 All Digital Lighting Controller 120/240/277v or 347v Owner's Manual Jun 25, 2021 The RLC1 can control up to 512 The Box Contains lights in two zones with up to 256 lights in each zone. The RLC1 can The RLC-1...
  • Page 3 Data Cables and Connections These are the data cables we supply. If you get longer or different ones, make sure they are wired like this. RLC1 uses RJ14 splitters and RJ14 cables up like this. If you get RJ-type cables from a local source, make sure they are straight-through and match the image...

  • Page 4: Mounting The Controller

    3 1⁄8”, and the lower hole is 3⁄4” below the top two, centered between them. Once the back plate is secured to the wall surface, the RLC-1 unit can be snapped onto the back plate. Next, Plug it In Plug the included AC adapter into a power outlet and connect the other end to the RLC1’s AC input jack on the bottom panel.

  • Page 5: Helpful Hints

    Operating the RLC-1 The RLC-1 is designed for easy use. Page Moves page to page. Next Moves from item to item. Up and Down Makes changes in values. Enter Saves the data. Helpful Hints If you change your mind on something, simply press Page to go to another page without saving.

  • Page 6: Quick Setup

    Quick Set Up Step 1 When the RLC-1 powers up, the display will default to the Main page showing zone temperatures, power levels and lights on or off as Day / Night. Step 2 Press the Page button to get to the Setup page...
  • Page 7 Step 3 cont. Set this for the type and size of light you have. You can set time for Lights On, Lights Off, what temperature to start Dim- ming, and what temperature to Stop and switch the lights off. Sunrise Sunset Some light types (like HPS) have the optional Sunrise/Sunset function where you can choose how many minutes to gently bring the lights up to (and down from) full power.
  • Page 8 LED Spectrum Control Choose from Presets When you choose LED, you can also select spectrum presets for Clone, Veg, Flower and Finish. The Flower preset is shown in the photo above. To choose a preset, press Next until the preset in selected by the blinking underline and use Up/Down to choose.

  • Page 9: External Connections

    External Connections The bottom of the RLC-1 has eleven (11) connectors: 1. Power (6v DC) 2. Zone A temperature sensor 3. Zone A Communications port to lights 4. Zone A Low-voltage external equipment trigger for Lights On 5. Zone A Low-voltage external equipment trigger for Lights Off 6.
