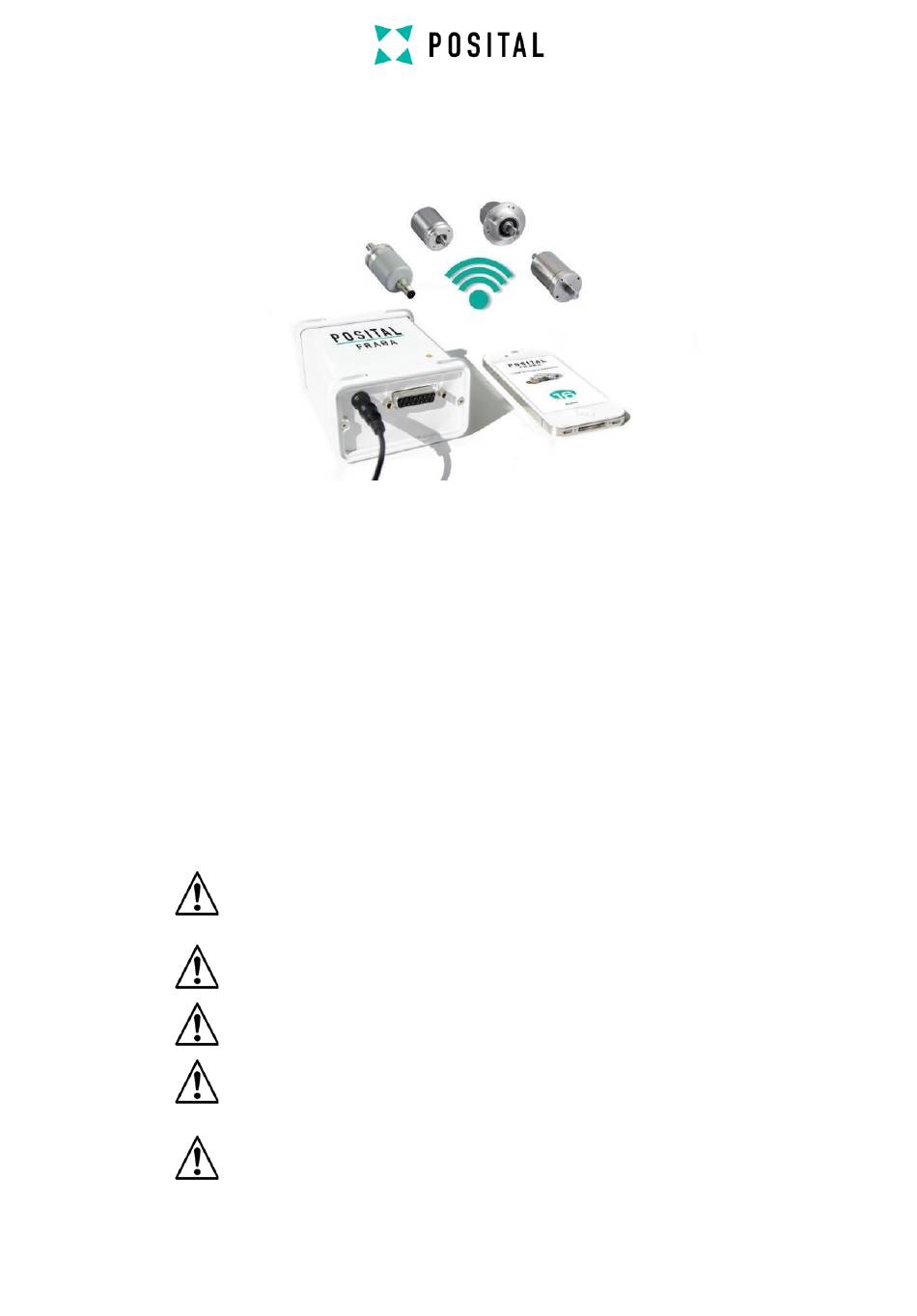

UBIFAST CONFIGURATION T OOL
INSTALLATION LEAFLET
Thank you for purchasing our UBIFAST Configuration Tool. The UBIFAST Configu-
ration Tool is used to configure the parameters of POSITAL's IXARC programmable
encoders through a simple browser based programming interface. Please read this
leaflet thoroughly and carefully before installation and using the device.
UBIFAST Configuration Tool Includes
▪ UBIFAST Configuration Tool
▪ Terminal block adapter to connect encoders with cable exit or to build your own
connecting cables
▪ 12 VDC Power Adapter, Input 100 to 240V AC, 47 to 63Hz and interchangeable
plugs for Europe, UK, US, India, Brazil, China, Argentina, Australia, Korea
Safety Notes
Recommended to use power adapter provided by POSITAL. In case of
replacement, check for compatible supplies with same voltage and current
rating (12 V / 1 A)
Do not remove the Micro -SD card or the Wi-Fi USB Adapter from the
configuration box
Do not connect or disconnect the encoder when device is under power
Do not connect any other devices to unused USB or RJ45 ports on the
Configuration Tool
Do not close browser or webpage when configuration is in progress
www.posital.com
1
V 20230928
Advertisement
Summary of Contents for POSITAL UBIFAST
- Page 1 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Thank you for purchasing our UBIFAST Configuration Tool. The UBIFAST Configu- ration Tool is used to configure the parameters of POSITAL‘s IXARC programmable encoders through a simple browser based programming interface. Please read this leaflet thoroughly and carefully before installation and using the device.
- Page 2 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Encoder Connection to the UBIFAST Configuration Tool ▪ Adapter cable for encoders with standard POSITAL Pin assignment and connector ▪ Terminal block adapter to connect encoders with cable exit or to build your own connecting cables...
- Page 3 If you use an encoder with connector you need to use a connecting cable with open wire ends on one side to connect to the Ubifast terminal block. Please check the wiring scheme of this connecting cable you are using. The product will not operate properly if there is an improper connection.
-
Page 4: Diagnostic Leds
▪ Main navigation page will open and you can begin the configuration Notes and Warnings ▪ The UBIFAST Configuration Tool can be used to program Analog, Incremental only and Hybrid (SSI + Incremental) encoders. The encoder type is automatically detected by the UBIFAST Configuration Tool and the programmable parameters in the subsequent steps are displayed accordingly ▪... - Page 5 LAN network or Cellular Data networks ▪ After 3 minutes of inactivity the UBIFAST box shall time out and the programming needs to be restarted from the beginning. The message “Session has timed out“ is displayed ▪...
- Page 6 (manual configuration) or replicating an existing configuration - When Auto Configure is selected the UBIFAST checks for the last know configuration (within 24 hrs) stored on the same UBIFAST device for the same encoder type - Parameter Values are preset from this saved...
- Page 7 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET 2. For SSI only (UCD-S1xxP) or for SSI + Incremental (UCD-SHxxP/UCD-STxxP) the following absolute parameters are programmable Absolute Parameters (SSI) Configure: ▪ Single Turn Resolution – 256 step s (8bit) to 65536 steps (16 bit) ▪...
- Page 8 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET 3. For Analog Programmable the following parameters are programmable Configure: ▪ Output Direction – Clockwise Up or Clockwise Down ▪ Analog Interface o 0-10V or 0.5-9.5V o 0-5V or 0.5-4.5V o 4-20mA ▪ Measurement Range in Degree Min – 22.5 degree to Max 23592600 degree ▪...
- Page 9 Step 4: Verification / Completion ▪ Verify configuration status ▪ If successful Press “Send” to draft an email to be sent to POSITAL - on availability of Internet on the device being used. (Note: The data is confidential and stored in our secure database) - Press “Restart”...
- Page 10 Units Used: Select between mm or inch ▪ Length per Revolutions: Input based on Mechanical setup of Customer (In case POSITAL LINARIX products used please refer to datasheet to find the values) ▪ Max Linear Length: Input based on Mechanical setup of Customer ▪...
