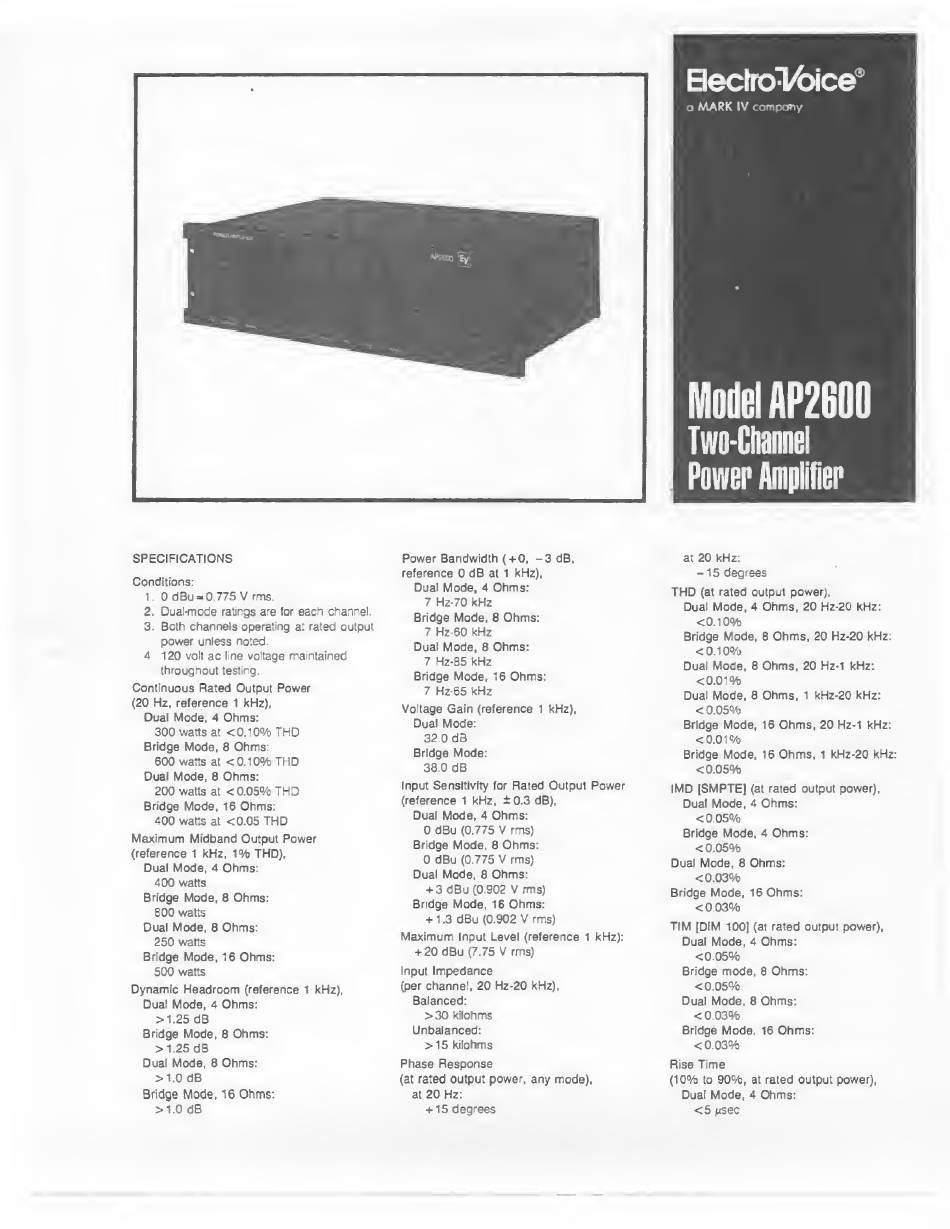

Mark IV Electro-Voice AP2600 User Manual

BecfroVoice'
o MARK IV company
Model AP2600
Two-Channel
Power Amplifier
SPECIFICATIONS
Conditions:
1. OdBu-0.775 Vrms.
2. Dual-mode ratings a-e for each channel.
3. Both channels operating at rated output
power unless noted.
4 120 volt ac line voltage maintained
throughout testing.
Continuous Rated Output Power
{20 Hz, reference 1 kHz),
Dual Mode, 4 Ohms:
300 watts at <0.10% THD
Bridge Mode, 8 Ohms:
600 watts at <0.10% THD
Dual Mode, 8 Ohms:
200 watts at <0.05% THD
Bridge Mode, 16 Ohms:
400 watts at <0.05 THD
Maximum Midband Output Power
(reference 1 kHz, 1% THD),
Dual Mode, 4 Ohms:
400 watts
Bridge Mode, 8 Ohms:
800 watts
Dual Mode, 8 Ohms:
250 watts
Bridge Mode, 16 Ohms:
500 watts
Dynamic Headroom (reference 1 kHz),
Dual Mode, 4 Ohms:
>1.25 dB
Bridge Mode, 8 Ohms:
>1.25 dB
Dual Mode, 8 Ohms:
>1.0 dB
Bridge Mode, 16 Ohms:
> 1.0 dB
Power Bandwidth (+0, -3 dB,
reference 0 dB at 1 kHz),
Dual Mode, 4 Ohms:
7 Hz-70 kHz
Bridge Mode, 8 Ohms:
7 Hz-60 kHz
Dual Mode, 8 Ohms:
7 Hz-85 kHz
Bridge Mode, 16 Ohms:
7 Hz-65 kHz
Voltage Gain (reference 1 kHz),
Dual Mode:
32 0 dB
Bridge Mode:
38.0 dB
Input Sensitivity for Rated Output Power
(reference 1 kHz, ± 0.3 dB),
Dual Mode, 4 Ohms:
0 dBu (0.775 V rms)
Bridge Mode, 8 Ohms:
0 dBu (0.775 V rms)
Dual Mode, 8 Ohms:
+ 3 dBu (0.902 V rms)
Bridge Mode, 16 Ohms:
+1,3 dBu (0.902 V rms)
Maximum Input Level (reference 1 kHz):
+ 20 dBu (7.75 V rms)
Input Impedance
(per channel, 20 Hz-20 kHz),
Balanced:
>30 kilohms
Unbalanced:
>15 kilohms
Phase Response
(at rated output power, any mode),
at 20 Hz:
+ 15 degrees
at 20 kHz:
-15 degrees
THD (at rated output power),
Dual Mode, 4 Ohms, 20 Hz-20 kHz:
<
0
.
10
%
Bridge Mode, 8 Ohms, 20 Hz-20 kHz:
<
0
.
10
%
Dual Mode, 8 Ohms, 20 Hz-1 kHz:
<
0
.
01
%
Dual Mode, 8 Ohms, 1 kHz-20 kHz:
<0.05%
Bridge Mode, 16 Ohms, 20 Hz-1 kHz:
<0.01%
Bridge Mode, 16 Ohms. 1 kHz-20 kHz:
<0.05%
IMD [SMPTE] (at rated output power),
Dual Mode, 4 Ohms:
<0.05%
Bridge Mode, 4 Ohms:
<0.05%
Dual Mode, 8 Ohms:
<0.03%
Bridge Mode, 16 Ohms:
<0.03%
TIM [DIM 100] (at rated output power),
Dual Mode, 4 Ohms:
<005%
Bridge mode, 8 Ohms:
<0.05%
Dual Mode, 8 Ohms:
<0 03%
Bridge Mode, 16 Ohms:
<0.03%
Rise Time
(10% to 90%, at rated output power),
Dual Mode, 4 Ohms:
<5 frsec
