Thank you for purchasing the BIOS Living wheelchair.
Please review the manual before using. DO NOT assemble or use this equipment without first
reading and understanding this instruction manual.
Note: This owner's manual was compiled from the most recent specifications and
product information available at the time of publication. Thermor Ltd. reserves the right to
make changes, which may cause slight variations between the illustration and explanations
in this manual and the product purchased.

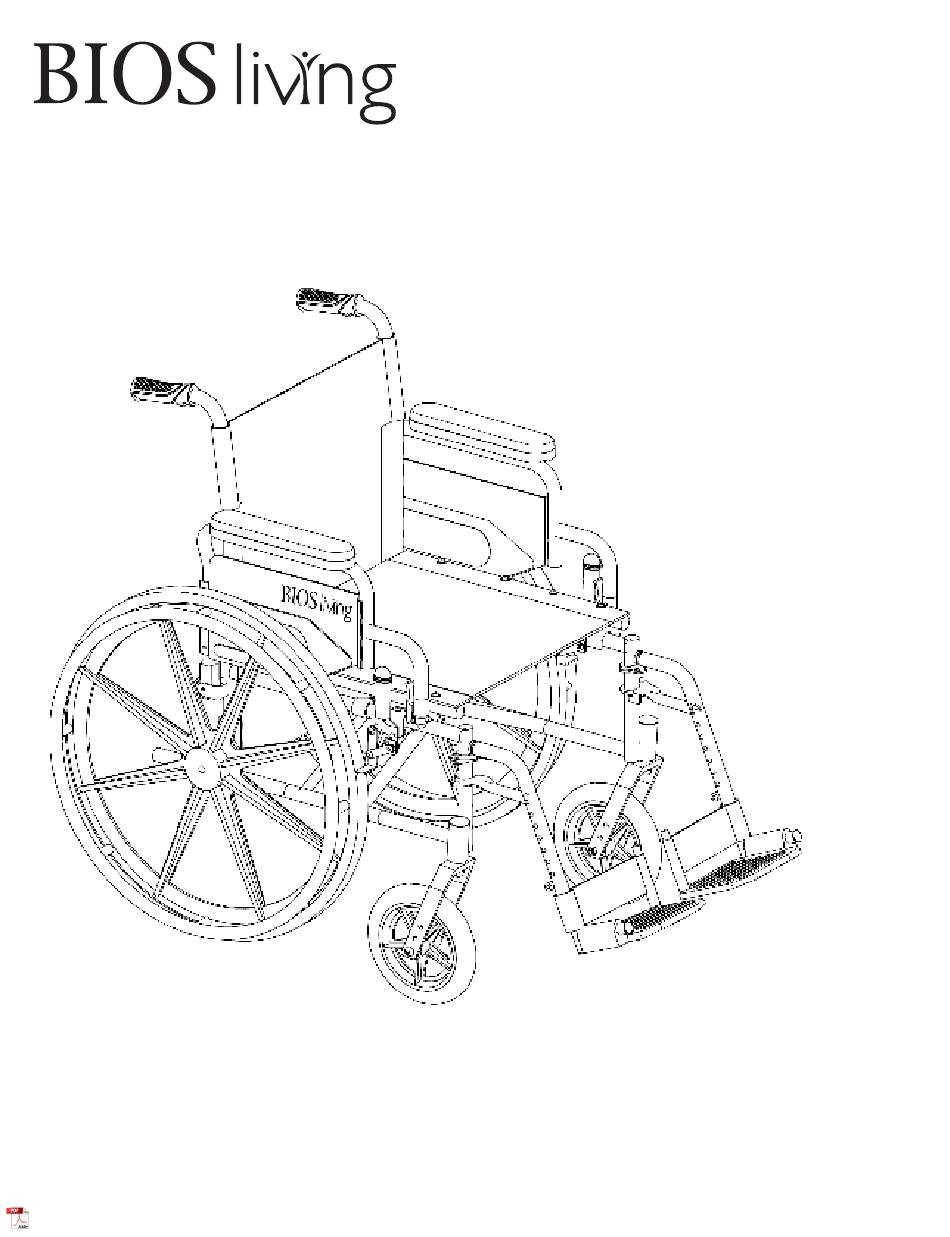

PHOENIX
WHEELCHAIR
Instruction Booklet
56184 - 18"/45.5 cm
56185 - 20"/50.8 cm
56186 - 22"/55.8 cm
1
Advertisement
Related Manuals for BIOS LIVING PHOENIX 56184
Summary of Contents for BIOS LIVING PHOENIX 56184
- Page 1 56184 - 18”/45.5 cm 56185 - 20”/50.8 cm 56186 - 22”/55.8 cm Thank you for purchasing the BIOS Living wheelchair. Please review the manual before using. DO NOT assemble or use this equipment without first reading and understanding this instruction manual.
- Page 2 Features: • 56184 Seat width: 18”/45 cm • 56185 Seat width: 20”/50.8 cm • 56186 Seat width: 22”/55.8 cm • Folds easily • 8”/20.3 cm front wheels • 24”/61 cm rear MAG wheels • Dual locking rear wheels for safe and secure transfers •...
-
Page 3: Seat Height Adjustment
Assembly Instructions: 1. Unfold the wheelchair Push both sides of the seat down to unfold the wheelchair to normal operating condition. 2. Assemble the footrests Assemble both footrests to the front end of the wheelchair as shown in the diagram. Move and turn both left and right footrests to the normal operating position (facing forward). - Page 4 2. Push the rear wheel button and pull towards you to remove (Figure 2). (Figure 2) 3. Remove the rear wheel screws with the M19 wrench and the M24 wrench, move the rear wheel screws to the position of the previous upper hole, and lock the screws with the wrenches (Figure 3).
- Page 5 One Year Warranty The BIOS Living Wheelchair has a 1 year warranty to be free of manufacturing defects in materials and workmanship under normal applications for 1 year of the original owner. If this product becomes inoperable due to defect, return the product with all component pieces and proof of purchase to the address listed below.
