Summary of Contents for P+S Technik 3D Stereo RIG

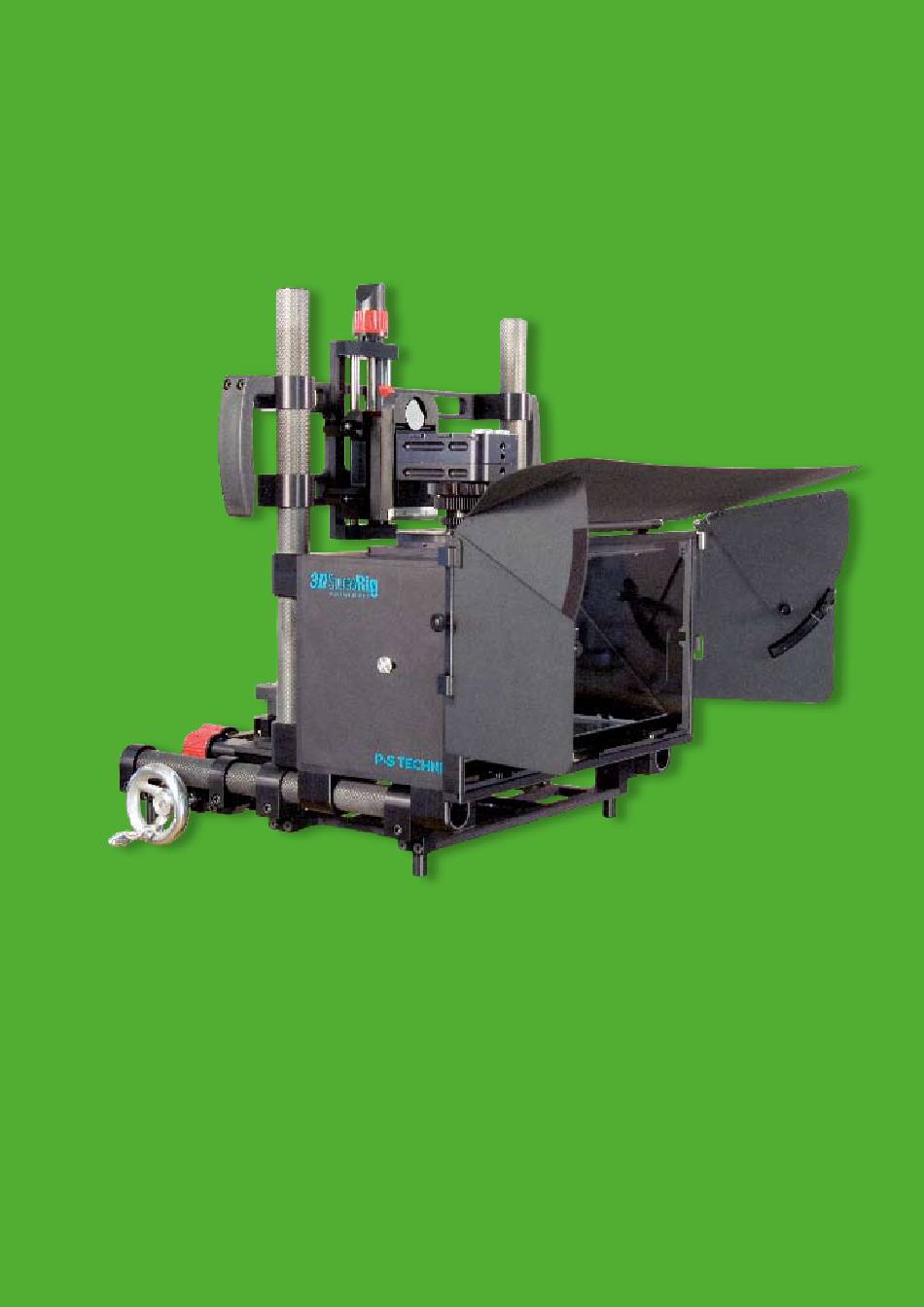

- Page 1 3D StereoRig c r e a te d b y a la in de r o b e User Manual ENGLISH Before operating this product, please read the instruction carefully and save this manual for future use. Art. Nr. 25003 | v0904...
- Page 2 85521 Ottobrunn / Munich Germany. Please find worldwide authorised representation and dealer on our website http://www.pstechnik.de or send an e-mail to 3d@pstechnik.de asking for the contact details. Concerning any service and warranty requests, please contact your local distributor or P+S Technik GmbH directly.
-
Page 3: Safety Instructions
Safety instructions: Temperature range: The Image Converter has been tested for a temperature range from 0° C to +50° C. For field reports regarding more extreme temperatures please contact P+S Technik Technical Support helpdesk@pstechnik.de Maintenance / Special Tools: Do not touch glass components with sharp objects. For cleaning do only use special lens cleaning supplies. -
Page 4: Table Of Contents
3D StereoRig created by a l ai n dero be Contents: 3D Stereo Rig ……………………………………………………………………… 5 Components ………………………………………………………………………… 6 Mechanical Setup ………………………………………………………………… 9 Calibration …………………………………………………………………………… 15 Storage and Care …………………………………………………………………… 18 Additional Accessories …………………………………………………………… 19 Additional Training ………………………………………………………………… 19 3D Competence Centers and Resellers... -
Page 5: D Stereo Rig
1. 3D Stereo Rig The 3D Stereo Rig is a modular mirror rig for stereoscopic recording. This professional tool enables the user to record stereoscopic content with interaxials from 0 cm till 12 cm. It uses a sophisticated beamsplitter design that allows the lenses to physically overlap - this is crucial to achieving the precision you need for quality 3D production. -
Page 6: Components
3D StereoRig created by a l ai n dero be 2. Components one mirror box with eight frame rod brackets one mirror carriage one horizontal calibration screw two side fixation screws one mirror frame with mirror and two pins one tilt calibration screw two vertical fixation screws one front frame with protection glass one pair of side French flags with knobs and Allen screws... - Page 7 3D StereoRig creat ed by alain derob e...
- Page 8 3D StereoRig created by a l ai n dero be...
-
Page 9: Mechanical Setup
3. Mechanical Setup The 3D Stereo Rig is modular designed: This means that you can use the rig in different setups with different components depending on the camera model and the lenses you want to use. - Page 10 3D StereoRig cre ate d by a la i n d ero be For an optimal aligning of the camera adapters (which is crucial due to the sophisticated cali- bration method) use the distance tool (13) and in case of the vertically fixed camera adapter the distance tool (13) and the distance ring (13a).
- Page 11 3D StereoRig creat ed by alain derob e 3.2 Cover and Mirror Frame Note: Always use gloves to prevent the mir- To attach the mirror frame (3) into the ror of being scratched or having fingerprints. mirror carriage (2): - At first tighten the tilt calibration screw (3a) Before mounting or detaching the mir- into the notch (J) carefully.
- Page 12 3D StereoRig created by a l ai n dero be To remove the mirror frame (3) from the To setup the French flags (5, 6): carriage (2): Just turn the black knobs on the side/top - At first you have to make sure that the two clamp poles.
- Page 13 HDC-X300), at first attach your 3D camera adapter plates (12a) to the camera tables (10a, 11a). Then attach your Sachtler Touch and Go plates (12b) to the P+S Technik 3D camera plates (12) with the provided screws. Make sure that the plates are alligned cor- rectly (horizontal and parallel to the border of each camera plate).
-
Page 14: Lens Setup
3D StereoRig created by a l ai n dero be 3.5 Lens Setup To access or change the lenses (e.g. if you work with a set of primes) you can use the fast release mechanisms (10b, 11b) of your camera adapters (10, 11). This feature allows you to detach camera and lens without loosening the calibration. -
Page 15: Calibration
3D StereoRig creat ed by alain derob e 4. Calibration In the following paragraph you get to know which knob is responsible for which adjustment. 4.1 Distance of the Cameras to the Mirror (affecting the size of one picture in relation to the other) You are able to change the distance of the cameras to the mirror by turning the distance adoption knobs (10c, 11c). - Page 16 3D StereoRig created by a l ai n dero be...
- Page 17 3D StereoRig creat ed by alain derob e 4.4 Change of 3D parameters 4.4.1 Changing the Interaxial The interaxial (sometimes called interocular) is the distance between the two optical axis of the two cameras. Basically with the change of the interaxial you change the depth of your 3D image.
-
Page 18: Storage And Care
5.1 Storage and Transportation Best storage and transportation is the optional flight case. Always keep the 3D Stereo Rig in a dry place. 5.2 Cleaning the Mirror The special coated mirror is very sensitive. Don’t clean it with acid detergent. Use a dry micro- fiber cleaning cloth to wipe off any dust or dirt or a slight humid microfiber cloth wetted with a water and denatured ethyl alcohol mixture (1:1) to clean off grease or oil. -
Page 19: Additional Accessories
For training workshops, please contact Florian Maier from 3D Consult (www.3d-consult.eu) or visit the 3D section of the P+S Technik website (www.pstechnik.de). . 3D Competence Centers and Resellers For your local 3D Competence Centers and Resellers, please visit the P+S Technik website (www.pstechnik.de).
