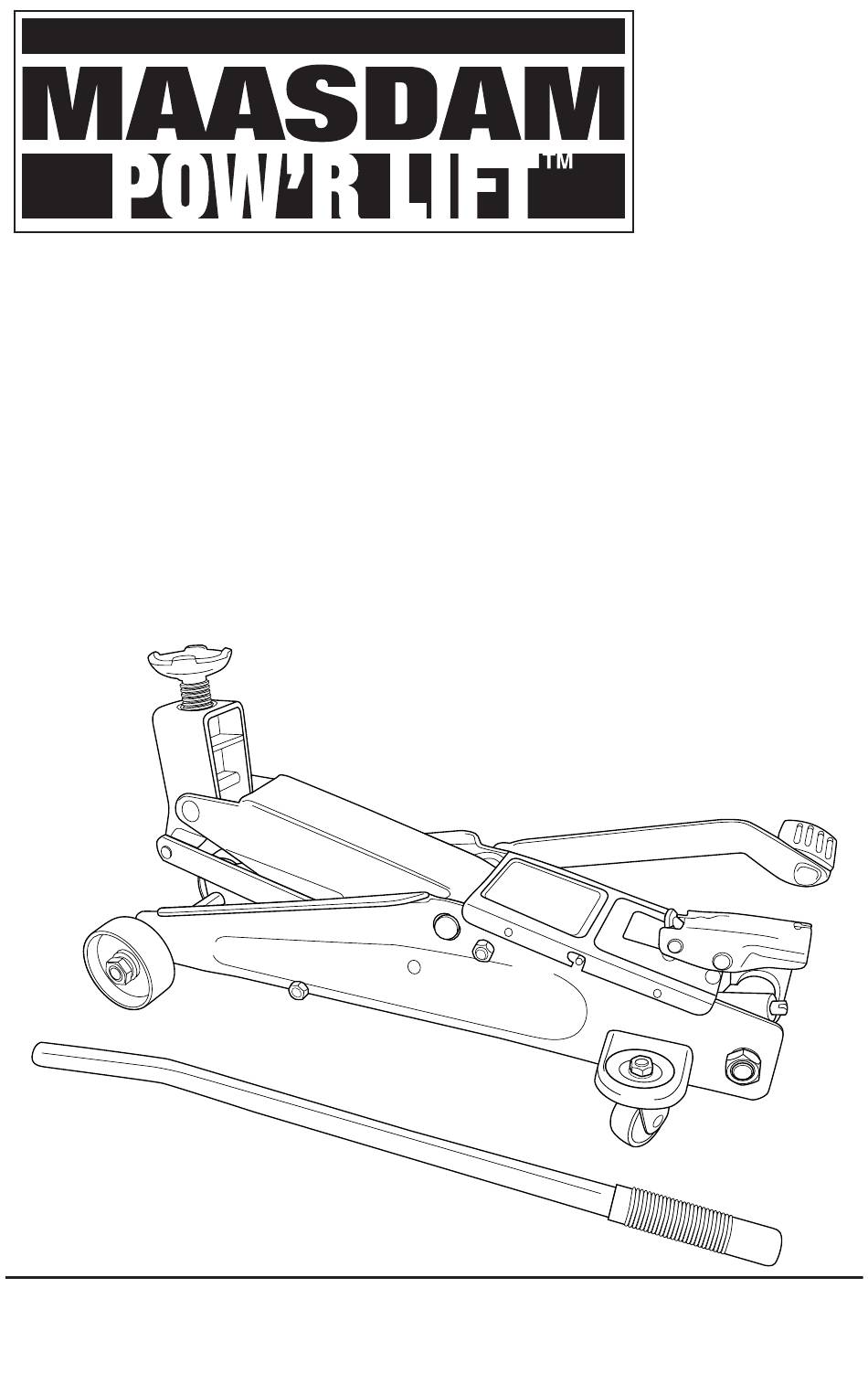

- Page 1 MPL1449-HD OPERATION & SAFETY MANUAL 3 TON (6,000 LBS.) SUV JACK WITH FOOT PUMP 1-888-797-7855 MAASDAM.COM Meets ASME/2005 ANSI standard requirements...
-
Page 2: Table Of Contents
Table of Contents Safety Information ..............2 Maintenance ................. 6 Warranty................. 3 To Add Hydraulic Jack Oil ..........6 Pre-Operation................. 3 To Replace Hydraulic Jack Oil ........... 6 Before Assembly and Operation ........3 Lubrication ................ 6 Specifications ..............3 Storing ................ -
Page 3: Warranty
Operations and Safety Manual and information which accompany and relate to the tool. Products made for Maasdam Pow’R Lift™ outside the USA are covered by other limited warranties as stated on the box for the particular product. -
Page 4: Part Number Key
Part Number Key Part Description Part Description Handle Spacer Front Wheel Hydraulic Ram Lifting Arm Oil Fill Plug Saddle Handle Bracket Front Wheel Release Valve Flat Washer 16 Overload Value Caster Spring Washer Spring Washer 10 Nut M16 Nut M10 Snap Ring “C”... -
Page 5: Operating Instructions
WARNING: To avoid pinching or crushing hands or feet, ALWAYS keep them clear of the jack hinge and ground contact area when lowering the vehicle. The jack is a lifting device only. DO NOT move or dolly the vehicle while it is on the jack. Maasdam@pullr.com... -
Page 6: Maintenance
Maintenance (See Fig. 1 on pg. 4) TO ADD HYDRAULIC JACK OIL With saddle fully lowered and the jack on level ground, unscrew and remove oil fill plug. Using a good grade of SAE 5W hydraulic jack oil, fill the oil reservoir to the bottom of the threads in the oil filler hole. Replace and tighten the oil fill plug. -
Page 7: Troubleshooting
Jack will not hold load or handle Discharge ball is not sealing hydraulic system and oil may be dirty. rises Manually flush hydraulic system. Open the release valve, as required, to raise and lower the lift arm. Manually raise and lower lift arm. Maasdam@pullr.com... - Page 8 1-888-797-7855 WWW.MAASDAM.COM Retain this manual for future use.
