Streamline RZ-PCL39G Assembly Instructions

Streamline Pencil Kits Assembly Instructions
Required Accessories
• 7mm,Pen Mandrel
• bushing set RZ-BP39#-BU
• 7mm drill bit RZ-DB007
• 7mm Barrel Trimmer RZ-PM011
• 2 part epoxy glue or Insta Cure(cyanoacrylate) glue
• 2*2*13CM long blank
• 0.7mm pencil lead RZ-PL7
Preparing the Blanks:
• Use a 5/8" square stock. Cut blanks to the length of the tube,adding 1/16"for trim.
• Drill a 7mm hole lengthwise through each blank.
• Use epoxy or a gap filling cyanoacrylate (super glue), to glue the tube into the blank.
Coat the outside of the tube with epoxy and insert the tube into the blank with a twisting
motion to spread the glue until flush. Allow it to dry.
• With a barrel trimmer, square the ends of the blanks to the tubes.

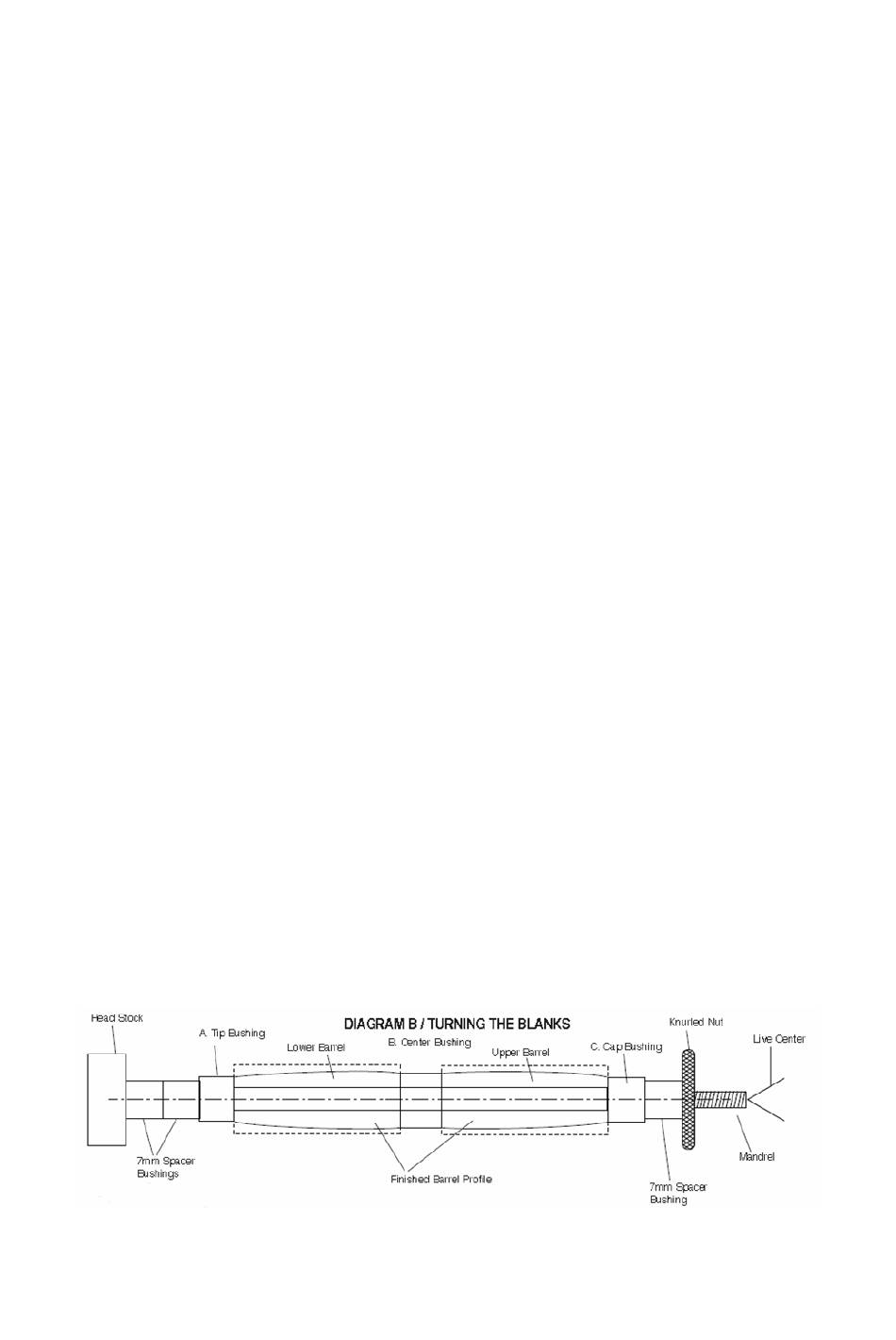

Turning the Blanks:
• Slide 7mm spacer bushings onto the mandrel shaft, followed by the tip bushing. Slide on
one blank. Next, add the center bushing. Place the upper blank followed by the cap
bushing. Add additional spacer bushings as necessary to reach the mandrel threads.
• Thread on the locknut hand tight. Bring the tailstock in snug to the mandrel, lock in place.
Tighten the lock nut for turning.
DO NOT over tighten the locknut,it could damage the mandrel.
• Turn the barrels close to the bushing diameter with sharp tools; sand the barrels to
match the bushing diameter.
• Finish the wood with your choice of polish
