Summary of Contents for Snap-loc C27-XM

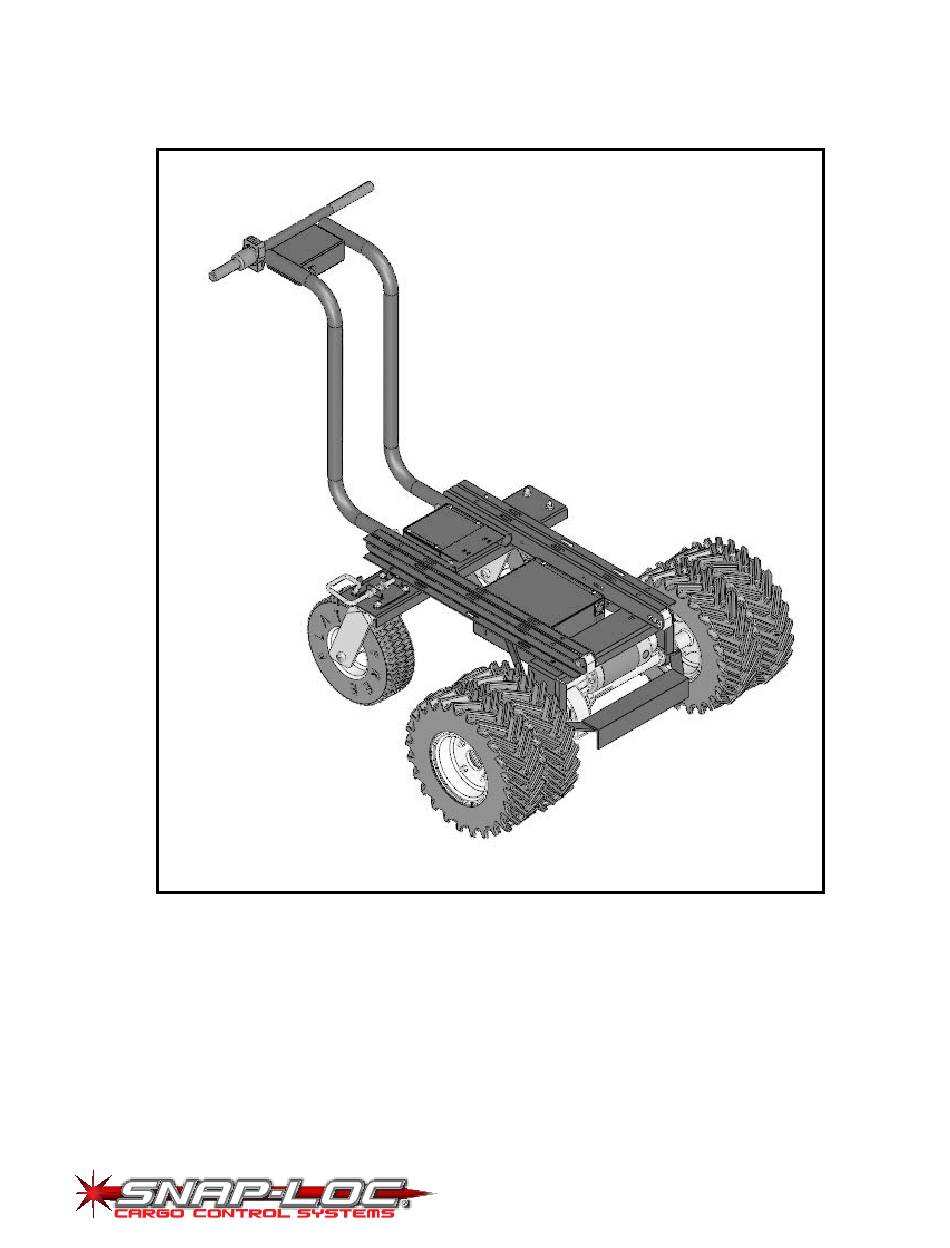

- Page 1 Revised 4.29.13 97011-3 OWNERS MANUAL Covers the following models: C27-XM C27-8M C27-10M C44-XM C44-9M C27-XA C27-8A C27-10A C44-XA C44-9A 5670 La Costa Canyon Ct. Las Vegas, NV. 89139 800-798-4521 Fax: 702-798-7064 contact@snaploc.com www.snaploc.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Warranty ......................3 Operation & Maintenance ................4 Dimensions ....................6 Battery Replacement ...................7 Battery Pack Assembly ................8 Handle & Chassis Assembly ..............10 Axle Assembly ...................12 Optional Add Ons ..................14 Decals ......................15... -
Page 3: Warranty
This remedy is the sole remedy in contact, tort or otherwise, and Snap-Loc is not liable for incidental, consequential or special damages. -
Page 4: Operation & Maintenance
What is the recommended tire pressure? Follow the tire pressure listing on the tire. You will get the best performance and range if the any other tube tire. We recommend taking the tire to a local service station for repair. Snap-Loc... - Page 5 OPERATION & MAINTENANCE Can I operate my Power Cart in the rain? Yes. Everything is splash proof sealed. However, we do not suggest driving through deep water. Will driving my Power Cart through deep water damage it? Yes. If the drive system or electronics are submerged beneath water, fatal damage is likely.
-
Page 6: Dimensions
DIMENSIONS LETTER DESCRIPTION DIMENSION MAX HEIGHT 40” MAX LENGTH - 27” CHASSIS 44” MAX LENGTH - 44” CHASSIS 62” HANDLE WIDTH 18” HANDLE HEIGHT 38” FRONT WHEEL BASE, DIRT HOG TIRE 24” FRONT WHEEL BASE, DUAL AG TIRE 33” 27” CRATED DIMENSION, DUAL AG/DIRT HOG TIRE (L x W x H) 64”... -
Page 7: Battery Replacement
BATTERY REPLACEMENT Replacement Battery Specs: 12v, 12 amp/ hr lead acid sealed, AGM type. Universal Battery model no UB12120 or equivalent. Two (2) Batteries required. 1. Remove the batter pack from the cart. 2. Remove the four (4) #10 screws holding the lid in place. -
Page 8: Battery Pack Assembly
BATTERY PACK ASSEMBLY... - Page 9 BATTERY PACK ASSEMBLY Part No Description MI-12-4068 BATTERY BOX TOP/BOTTOM WELDMENT MI-07-0287 BATTERY BOX COVER PI-11-0159 SM-BATTERY 12V 12 A.H. PI-08-0045 FUSE - THERMAL CIRCUIT BREAKER 30A TYCO W58-XC4C12A-30 PI-01-0331 SCREW - #10 23 X 5/8” MACHINE SCREW COMBO ROUND HEAD PI-01-0482 SCREW #6 32 X 1/2”...
-
Page 10: Handle & Chassis Assembly
HANDLE & CHASSIS ASSEMBLY... - Page 11 HANDLE & CHASSIS ASSEMBLY Part No Description MI-12-4079 CART HANDLE C TWIST MI-08-0836 FORMED CHANNEL 2” X 1” X 11 GA X 26 - 1/2” (27” MODEL) MI-08-0864 FORMED CHANNEL 2” X 1” X 11 GA X 43 - 1/4” (44” MODEL) MI-07-0290 COVER - DRIVE CONTROLLER BOX PI-08-0053...
-
Page 12: Axle Assembly
AXLE ASSEMBLY... - Page 13 AXLE ASSEMBLY Part No Description MI-08-0844 FORMED POWER CART MOTOR MOUNT MI-12-3568 TRANSAXLE ASSEMBLY MOUNTING BRACKET MI-12-4066 MOTOR BRACE LEFT MI-12-4065 MOTOR BRACE RIGHT MI-08-0837 FORMED-CHANNEL 4-3/4" x 1-1/8" x 11 GA x 23" MI-12-4046 LATCH BRACKET PI-08-0048 TRANSAXLE ASSEMBLY 24 V 18080 G-PIN LOCK KIT PI-06-0055...
-
Page 14: Optional Add Ons
OPTIONAL ADD ONS 10 Cu Ft Dump Hopper (70107) 8 Cu Ft Dump Hopper (70130) 9 Cu Ft Hopper (70116) Trailer Dolly Attachment (70109) 2” Ball Dirt Hog Tire Dual Ag Tire 13”, 2 Ply 13”, 2 Ply... -
Page 15: Decals
DECALS Size = 5 in Wide x 3 in Tall CHARGE PORT WARNING NOTICE Maximum Capacity: Ground level 750 lbs Charge after every use. (294 kg), 3:1 Grade 500 lbs ( 226 kg). Never When brake is released, power switch must operate unit on a slope greater than 3:1, or with more than 750 lbs ( 294 kg).
