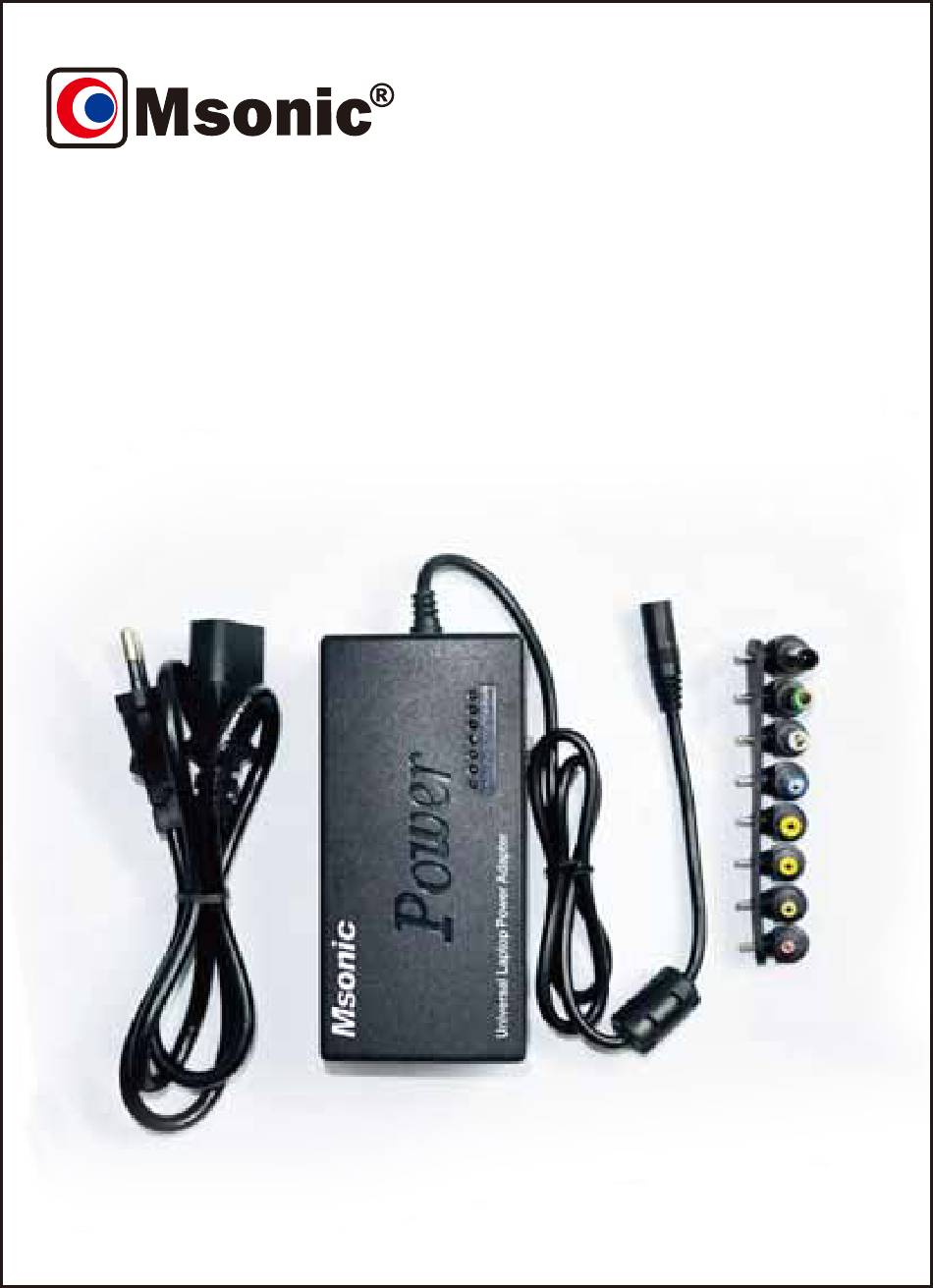

- Page 1 MY1644DK Universal Laptop Power Adapter User Manual...
- Page 2 English 1. Introduction: MSONIC® Universal Laptop Power Adapter that portable, support AC100 ~ 240V voltage input, adjustable output voltage (DC15V ~ 24V),It is specially design for universal type with 8 kinds of standard output plugs included. Note: Please confirm if the range of local input voltages (AC 100~240V, 50~60Hz) is suitable for the product.
- Page 3 English Specification of the DC plugs: A.3.5*1.5mm Red； B.4.0*1.7mm YELLOW； C.4.8*1.7mm YELLOW； D.5.5*1.7mm YELLOW； E.5.5*2.1mm Blue； F.5.5*2.5mm White； G.6.3*3.0mm Green； H.6.0*4.5*1.0 pin Black 2. Instruction: Please confirm the DC input voltage required by the notebook computer (there is the indication on the sticker on the bottom of notebook or the sticker on power adapter) Please confirm that the working current required by the notebook computer shall be smaller than or equal to the working current of the product.
- Page 4 English 12/15/16/18/ 4.0*1.7mm ASUS/ACER/ 19/20/24V YELLOW SONY/BENQ （70W) 12/15/16/18/ 4.8*1.7mm ASUS /HP/NEC/ 19/20/24V YELLOW DELTA/ Compaq （70W) 12/15/16/18/ 5.5*1.7mm 19/20/24V ACER/HP YELLOW （70W) COMPAQ/ 12/15/16/18/ 5.5*2.1mm ACER/HP/ 19/20/24V Blue BENQ/NEC/ （70W) TOSHIBA ACER/COMPAQ， TOSHIBA/HP， 12/15/16/18/ FUJITSU/Gateway， 19/20/24V 5.5*2.5 mm IBM/Delta/Liteon， （70W) ASUS/NEC/DELL，...
- Page 5 English 12/15/16/18/ 6.3*3.0mm TOSHIBA/NEC 19/20/24V Green （70W) 12/15/16/18/ 6.0*4.5*1.0 SONY/ FUJITSU/ 19/20/24V pin Black Samsung （70W)
