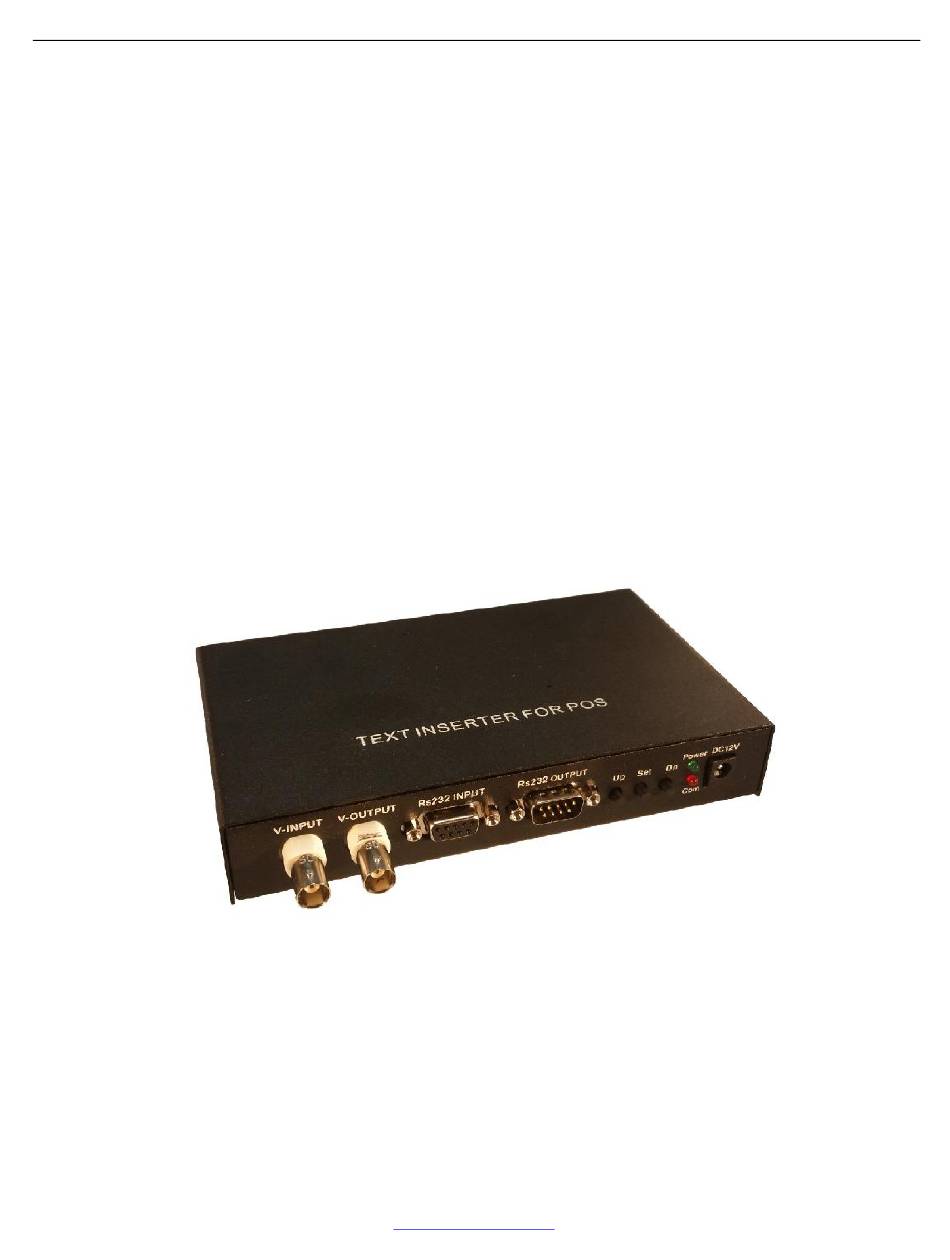

- Page 1 Active Vision Inc. User Manual POS Text Inserter Model: ACA-POS-SP1 711-6 Koehler Ave Ronkonoma, NY 111727 www.active-vision.com 631-585-0088...
-
Page 2: General Description
2. Main Functions 1. The ACA-POS-SP1 has a parallel (LPT) port and a serial (RS232) port for connecting to a POS. Only one input can be used at a time, and the same type of output must be used (ex. You must use serial output if you are using serial input). -
Page 3: Major Parameters
User Manual – Text Inserter for POS 3. Major Parameters Technical specifications Video input amplitude 1VP-P(75), 1 Channel Video output amplitude 1VP-P(75) Bandwidth 12MHZ Overlay text content ASCII characters Text display mode With or without background frame Characters each line Maximum 64 characters per line Information lines 8 lines... - Page 4 User Manual – Text Inserter for POS 4. Device Connection Overview Figure 1 5. Configuration Front panel of the device: Figure 2 Video Input Input from CCTV Video Output Output video Camera device (DVR, etc…) RS-232 Input Input from RS-232 Output Output Pole serial Port...
-
Page 5: Data Input
User Manual – Text Inserter for POS ▼Data input ： Serial ：9600,8,n,1 RS-232 Serial baud ： Translucent Background frame ： Middle Vert position ：10 Display columns start ：63 Pole display columns ：20 Seconds Display time Save and exit Figure 3 Main Menu Basic Operation: ... - Page 6 This only takes effect after the last information has been received. If more information is sent to the ACA-POS-SP1 than can be displayed on the screen, it will display the last received data for this amount of time. You can set this parameter between 2 seconds and 99 seconds.
