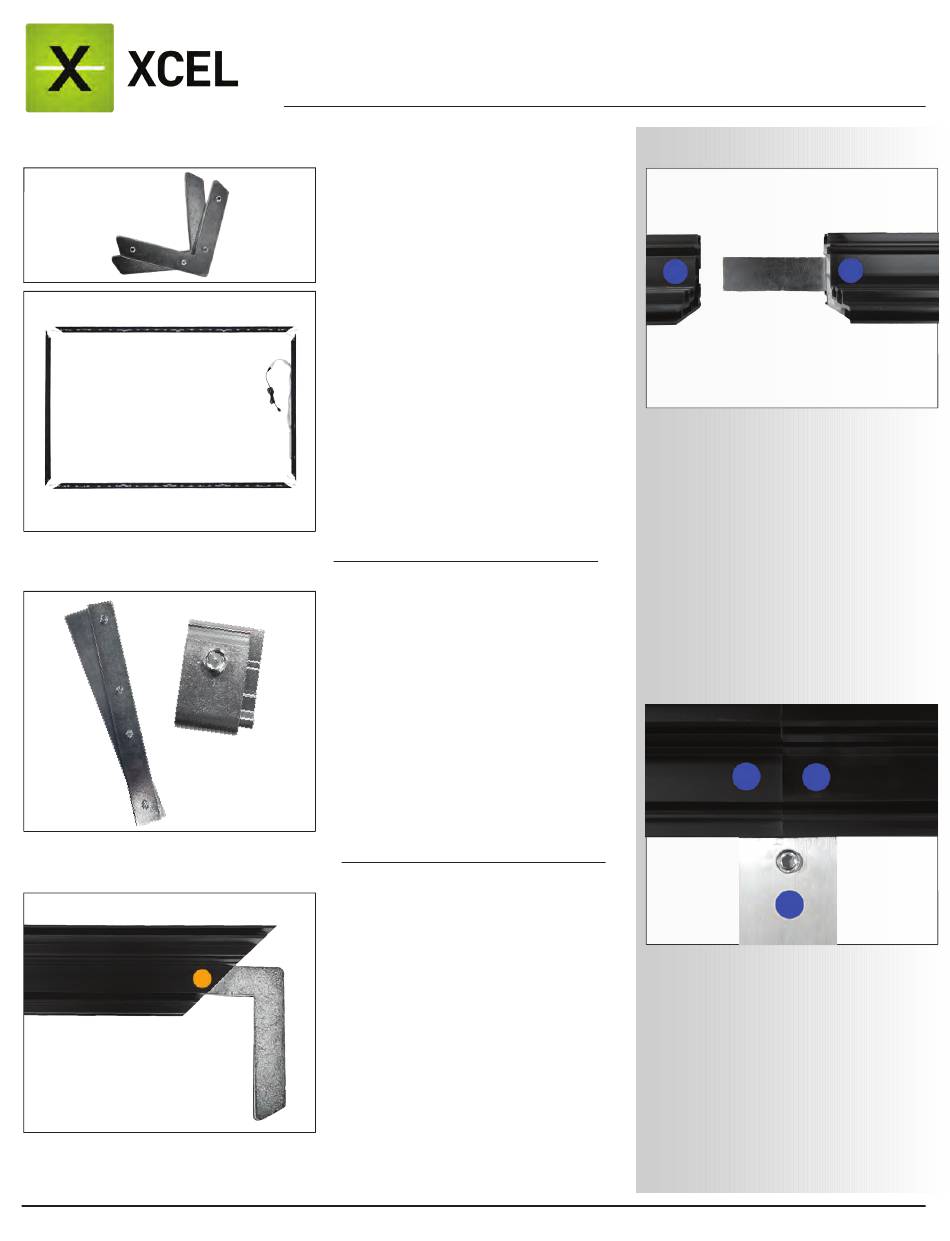

XCEL 90 Assembly/Mounting Instructions

STEP 1
STEP 2
Corner Hardware
#90/#91 Assembly & Mounting
Lay out the frame pieces with
the thin flat sides down, forming
the shape of your finished
frame. For guidance, your
frame may be color coded,
match the color dots on each
coordinating end.
Lay out your corners and
other hardware separately.
Pair a smooth corner bracket
with a corner bracket with set
screws. Make sure the set
screws inserts are facing out.
Large frames may have
stabilizer supports and 180
connectors. Stabilizers will
provide support through frames
with seams and 180 connectors
will connect the seam cuts. It is
suggested to start with the
optional hardware assembly
before assembling the corners.
Insert one pair of corner
brackets into the open channel
on two adjoining corner ends
of the aluminum extrusion,
sliding in to create a corner or
90 angle. Slightly tighten the
screws and repeat for the
remaining corners..
Optional Hardware
Match pairs of 180 connectors Match pairs of 180 connectors
with set screws out. Insert these with set screws out. Insert these
plates into the open channels plates into the open channels
to adjoin the straight edges. It is to adjoin the straight edges. It is
suggested to work in parallels or suggested to work in parallels or
opposite sides before fully pushing opposite sides before fully pushing
lengths together. Stabilizer lengths together. Stabilizer
hardware may need to be inserted hardware may need to be inserted
before full assembly. before full assembly.
Match your stabilizer lengths with Match your stabilizer lengths with
coordinatig expansion hardware. coordinatig expansion hardware.
Slide the expansion harware into Slide the expansion harware into
the stabilizer end and slightly the stabilizer end and slightly
tighten the set screw to hold into tighten the set screw to hold into
place. Now slide that end into the place. Now slide that end into the
inside frame channel, once in inside frame channel, once in
place next to the seam, tighten place next to the seam, tighten
the screw until secure the screw until secure
. .
1
