Fastnet Radio FMD25 Operator's Manual

Gmdss marine radio decoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATOR
MANUAL
GMDSS Marine Radio Decoder
FMD25
FMD25
FMD 25 – 10/99

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FMD25 and is the answer not in the manual?

Questions and answers

Related Manuals for Fastnet Radio FMD25

Summary of Contents for Fastnet Radio FMD25

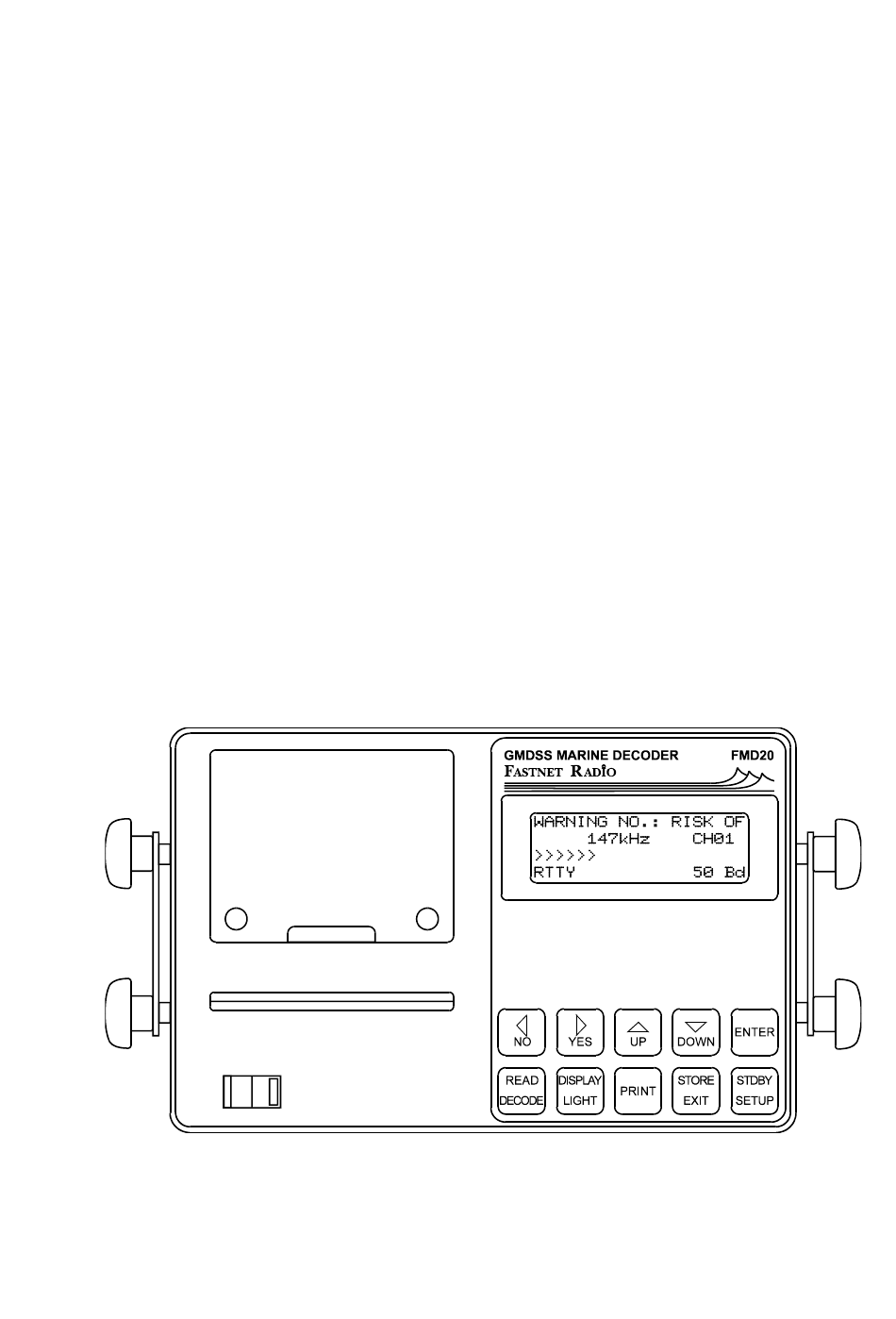

  • Page 1 OPERATOR MANUAL GMDSS Marine Radio Decoder FMD25 FMD25 FMD 25 – 10/99...
  • Page 2 ATTENTION IMPORTANT INFORMATION The FMD25 has two M5 threaded holes on either side for the supplied thumb screws, so that it can be fitted to the universal mounting bracket. The length of the thumb screws has been so determined, that, together with the bracket and the lock washers, they can only penetrate approx.

  • Page 3: Table Of Contents

    Contents Page Introduction 1.1. Short description 1.2. Operation 1.3. Keypad functions Receiver 2.1. Operation 2.2. Atlantic, Baltic and North Sea, Mediterranean frequencies Decoding of messages 3.1. Selecting mode and decoding 3.2. Programming of channels 3.3. Recalling of stored channels 3.4. Message memory Automatic reception and decoding 4.1.
  • Page 4 DC/DC converter installation 10.3. DC936-DC/DC converter for 9-36V to 12V 10.4. MD-AA - active antenna 10.5. MLB – marine long-wire balun for back-stay 10.6. F3A and F6A suppression filters 10.7. M20-ALS – active loudspeaker for FMD25 FMD 25 – 10/99...
  • Page 5 Technical data 11.1. General 11.2. Receiver 11.3. Micro controller 11.4. Signal processor decoder 11.5. LCD display 11.6. Thermal printer 11.7. NMEA interface 11.8. Power supply for active antenna 11.9. Approvals General Information and transmitting stations 12.1. Stations, frequencies and transmission times 12.2.
  • Page 6 Appendix 14.1. Service and Maintenance 14.2. Service depots 14.3. Warranties see extra pages 14.4. Software maintenance Software up-date enquiry form 14.5 Error alarm 14.5.1. “PRINTER ERROR” alarm 14.5.2. Further acoustic alarms FMD 25 – 10/99...

  • Page 7: Introduction

    1.2. Operation The back-lit, high contrast LCD display and an easy to use keypad, allow a user friendly operation of the FMD25. System information and stored decoded messages can be printed out by the integrated thermal printer on 80mm paper...

  • Page 8: Keypad Functions

    (P) print and/or (W) write print space return to higher menu level end process return to standby mode SET UP menu FMD25 10/99...
  • Page 9 FMD25 10/99...

  • Page 10: Receiver

    Morse to RTTY or RTTY to SITOR-FEC respectively. On the following pages you can find a list of the present codes used. It is not necessary to adjust the mode in the receiver. This is done automatically, when selecting the decoding mode. FMD25 10/99...
  • Page 11 2.2. North-Atlantic, Baltic-, North and Mediterranean Seas frequencies FMD20 EU - channel frequency(kHz) code station 147.3 RTTY Pinneberg 4583.0 RTTY Pinneberg 7646.0 RTTY Pinneberg 10100.8 RTTY Pinneberg 11039.0 RTTY Pinneberg 8417.0 SITOR-FEC Portishead 4292.0 Morse Roma 8530.0 Morse Roma FMD25 10/99...

  • Page 12: Decoding Of Messages

    3. Decoding of messages The FMD25 can store and decipher MORSE, RTTY and SITOR codes, which then can be read or printed out in plain language. In radio signal traffic there are many other kinds of keyed codes. As they are not for use by the general public, they cannot be decoded by the FMD25.
  • Page 13 VHF Audio radio from 88 to 108 MHz H3E - AM audio radio, SSB with carrier e.g. Murmansk J3E - SSB audio radio R3R - as H3E however with reduced carrier e.g. Niton *- not available with FMD25 FMD25 10/99...

  • Page 14: Programming Of Channels

    WR and PR use <ENTER> similarly to select between N(NO) and Y(YES) in column WR means that the message will be stored in column PR means that the message will be printed out simultaneously. FMD25 10/99...
  • Page 15 With six or more arrows, you can expect reasonable decoding. The bottom line shows that the code being used is RTTY (Radio Tele Type) at a transmission rate of 50 Baud/m. FMD25 10/99...

  • Page 16: Message Memory

    This will not influence the mode selection in 3.2. 3.4. Message memory The FMD25 possesses two separate independent memory stores. One for NAVTEX messages (see chap.5) and one for Morse, RTTY and SITOR- FEC messages.
  • Page 17 (CH) the message was received, this enables messages to be recalled chronologically. Should the FMD25 be switched off during storage, whether deliberately or not (e.g. power interruption), the actual data record will not be stored because of lack of end of file identifier.

  • Page 18: Automatic Reception And Decoding

    4. Automatic Reception and Decoding The FMD25 has a timer function for the storage of 9 programmes. Each storage contains a starting time, stop time and the channel number of a stored frequency (similar to that in a video recorder).

  • Page 19: Programming The Timer Function

    The keys <NO> and <YES> move the cursor to the required position. The keys <UP> and <DOWN> change the figure value. Keys <UP> and <DOWN> have an auto-repeat function, which means the page 4-2 FMD25 10/99...

  • Page 20: Deleting On/Off Times

    In the case where to programmed times overlap, the newer start time is dominant Should a timer function be interrupted my manual operation e.g. calling up another frequency, the unit will still return to standby mode on reaching the stop time page 4-3 FMD25 10/99...

  • Page 21: Interrupting And Restarting The Timer

    DD.MM.HH.MM (day, month, hour, minutes). Press key to recall READ MEMORY use keys to select the type of message to be read (NAVTEX or RD CH x) and press <ENTER> press key once more page 4-4 FMD25 10/99...

  • Page 22: Printing Out Stored Messages

    4.4 Printing Out Stored Messages Stored messages can be printed out as often as required. Select the message to be printed out as READ MEMORY (see 4.3.) press key to call up READ MEMORY select message to be printed out page 4-5 FMD25 10/99...
  • Page 23 "turn the pages" with the cursors <UP> and <DOWN> by pressing <PRINT> the printer will commence from the displayed page press <EXIT> when required or allow printing to continue until the message has ended press <EXIT> twice to return to standby mode page 4-6 FMD25 10/99...

  • Page 24: Navtex, Reception And Decoding

    2 STATION 6 ALARM 3 MESSAGE 7 STATUS 4 PRINT 8 EXIT 5.1 Selecting the Frequency The FMD25 is programmed at present to receive two international NAVTEX frequencies: 518 kHz for coastal regions in English and 490 kHz for coastal regions in the local language...
  • Page 25 FMD25 10/99...

  • Page 26: Selecting Type Of Message

    = messages about other electronic navigational assistance = additional navigational warnings V - Y = special services, tests = no message available Messages of type -A-,-B- and-D- cannot be suppressed. by pressing key selection will be stored and return to NAVTEX menu. FMD25 10/99...

  • Page 27: Printer Function

    5.6. Alarm for A, B and D messages Should the FMD25 receive messages of the type A, B or D they can be alerted with an acoustic alarm. Cursor position 6 - ALARM and enter. If you wish alarm activated for A, B and D type messages press <YES>...

  • Page 28: Returning To Standby Mode

    When deciphering NAVTEX, the error rate of the decoded signal will be examined. Should the acceptance rate be exceeded, then the print out, if activated, will be interrupted and the message will be automatically deleted from the memory store. FMD25 10/99...
  • Page 29 K 0140, 0540, 1940, 1340, 1740, 2140 Magadan R, FE, CIS D 0030, 0430, 0830, 1230, 1630, 2030 Moji R, J H 0110, 0510, 0910, 1310, 1710, 2120 Mollendo, Peru OBF4 W 0340, 0740, 1140, 1540, 1940, 2340 FMD25 10/99...
  • Page 30 0300, 0700, 1100, 1500, 1900, 2300 Bari U 0320, 0720, 1120, 1520, 1920, 2320 Cagliari 0310, 0710, 1110, 1510, 1910, 2310 Cape Town C 0020, 0420, 0820, 1220, 1620, 2020 Cross Corsen, F A 0000, 0400, 0800, 1200, 1600, 2000 FMD25 10/99...
  • Page 31 Niton R, G 0018, 1418, 0818, 1218, 1618, 2018 Portpatrik R, G O 0130, 0530, 0930, 1330, 1730, 2130 Portsmouth, USA N 0130, 0530, 0930, 1330, 1730, 2130 Reykjavik R, ISL R 0318, 0718, 1118, 1518, 1918, 2318 FMD25 10/99...
  • Page 32 Tarifa ( Gibraltar ) G 0100, 0500, 0900, 1300, 1700, 2100 Thunder Bay, CAN P 0230, 0630, 1030, 1430, 1830, 2230 Wiarton, CAN H 0110, 0510, 0910, 1310, 1710, 2110 Yarmouth, CAN U 0320, 0720, 1120, 1520, 1920, 2320 FMD25 10/99...

  • Page 33: Nmea Printer And Navigation Log

    NMEA Printer and Navigation Log 7.1. Printing of NMEA Data The FMD25 can be used as an NMEA printer. In this mode NMEA signals are fed via the NMEA 0183 interface unaltered to the integrated or external printer. Please note, that only data, which are defined as NMEA data, can be processed.

  • Page 34: Activating Log

    Activating Log When connected via NMEA 0183 interface to an external GPS, it is possible with the FMD25 to receive, store and print out the NMEA data record "GPS transit specific $ GPRMC", which is practically a complete record of the route.
  • Page 35 <DOWN> to spring to position TIME select the TIME interval with keys <YES>/<NO> use cursor <DOWN> to spring to position WAY select the WAY interval with keys <YES>/<NO> press key <EXIT> 4 times to return to stand-by page 7-3 FMD25 10/99...
  • Page 36 This does not take place during message decoding or when the FMD25 is being operated manually, but as soon as the FMD25 returns to the stand-by mode. However, you can print out the actual stored data at any time. To...

  • Page 37: System (Set Up)

    Positions Using the cursors you can alter the values as required. Having checked that all values are correct, press and return to the <SET UP> menu. The selected time has now been stored. page 8-1 FMD25 10/99...

  • Page 38: Setting Of Owner's And Vessel's Name

    8.2. Setting of Owner's and Vessel's Names The name of the owner and of the ship can be entered into the FMD25. They will then appear on the bottom line at the end of each print out. use the cursor <DOWN> to spring to position 6 – VESSEL press <ENTER>...
  • Page 39 NAVTEX parameters and file them. Should their be a loss of data, you can re-enter the old data from the print out. page 8-3 FMD25 10/99...

  • Page 40: Memory Store Deletion And Reset

    YES / NO 5. answer by pressing <YES> or <NO> 6. Switch the unit off for a few seconds and switch on again. All data and news programmable, are deleted and can now be newly programmed. page 8-4 FMD25 10/99...

  • Page 41: Installation

    4 screws to the wall or ceiling, using the adhesive template in order to bore the holes in the correct positions. On each side of the FMD25, there are two M5 threaded holes for fitting at the required angle with the thumb screws. Beforehand, press the self-holding spacers into the selected holes.
  • Page 42 ATTENTION IMPORTANT INFORMATION The FMD25 has two M5 threaded holes on either side for the supplied thumb screws, so that it can be fitted to the universal mounting bracket. The length of the thumb screws has been so determined, that, together with the bracket and the lock washers, they can only penetrate approx.

  • Page 43: Dimensions

    Dimensions: page 9-3 FMD25 10/99...
  • Page 44 Desk Top Mounting Wall Mounting: page 9-4 FMD25 10/99...

  • Page 45: Power Supply Connection

    The unit was manufactured to operate on a supply voltage of 11V to 15V DC (12V battery). The FMD25 has reverse battery and over voltage protection. Should an incorrect connection take place, check the fuse and if necessary, replace.

  • Page 46: Nmea Interface Connection

    9.4. NMEA Interface Connection Using the FMD25 as navigation log or NMEA printer, the NMEA interface must be connected with an external NMEA device (e.g. GPS) The TX+ / TX- of the external unit must be connected to the RX+ / RX- of the FMD25.
  • Page 47 Marine balun transformer with integrated over-voltage protection (MLB) insulator connection cable coax. cable RG58 M20-KDC Use 2-channel shielded green/yellow cable for power and NMEA Filter white LINE yellow hull waterline CU wire min. 16mm earth terminal ground-plate page 9-7 FMD25 10/99...
  • Page 48 Best installation position is the highest point of vessel Coax. Cable RG58 up to 30 m RG213 over 30 m Connecting Cable M20-KDC Yellow Use only 2-channel green shielded cable white Suppression filter yellow hull CU wire min. 16mm² waterline Ground-plate Earth terminal page 9-8 FMD25 10/99...
  • Page 49 Please do not cable earth filter to unit (yellow/green) Coax. Cable RG58 With integrated SSB amplifier active antenna Use only 2-pole shielded cable Suppression line filter load hull CU wire min. waterline 16mm² Earth terminal Ground- plate page 9-9 FMD25 10/99...

  • Page 50: Printer Paper Change

    9.6, Printer Paper Change The FMD25 has a thermal printer, paper width: 80mm. The diameter of the paper roll must not exceed 45mm and the diameter of the core, no more than 12mm. The standard supplied roll has an approximate length of 25 metres and prior to reaching the end, a colour indication will appear, reminding you to change the roll.
  • Page 51 9-11 FMD25 10/99...

  • Page 52: Active Antenna Power Supply

    9.7. Active Antenna Power Supply The FMD25 has an integrated feeder for a power supply of 12V and maximum current consumption of 250mA, for an active antenna, which means that any interconnected supply units in the antenna cable are superfluous.

  • Page 53: Fmd25 Accessories

    9V to 36V constant output voltage 12.5V This means that the FMD25 can be operated by 12V and 24V batteries. The DC/DC converter has an integrated filter, which suppresses interference from the ship's voltage supply and offers additionally, a galvanic separation between the power supply and the unit.
  • Page 54 150 x 102 x 36 mm (l x b x h) Connections: PG11 terminal screws Input voltage: 9 to 36 Volt DC Type DC936-12: 12V output voltage max. output current 2.5A Type DC936-24: 24V output voltage max. output current 1.25A page 10-2 FMD25 10/99...

  • Page 55: Md-Aa - Active Antenna

    10.4. MD-AA Active antenna for FMD25, 50 and 55 Active reception antenna for 100 kHz to 30 MHz The MD-AA active antenna has been specially developed and tuned for the Fastnet Radio GMDSS Marine Decoder series FMDxxx, but can also be used for any other receiver in the above reception range.
  • Page 56 With its special matching transformer, it enables you to use an insulated stay, with a length between 6 and 25 metres, as an antenna for a reception range from 100kHz to 30MHz. An over-voltage protection against electrostatic charging during lightning storms has been built in. stay coaxial cable RG58/U page 10-4 FMD25 10/99...
  • Page 57 It can be easily fitted between the power supply and the unit. Should a filter be necessary only for the FMD25EU, then you require the F3A. When other units (e.g. GPS, FM, 2-way radio etc.) be attached, it is recommended to use the F6A. page 10-5 FMD25 10/99...
  • Page 58 10.7. M20-ALS - active loudspeaker for FMD25 The FMD25 has an integrated LF amplifier with a loudspeaker for the acoustic reproduction of the reception signal. For everyday use of the FMD25 this is not necessary. For testing the initial installation of...

  • Page 59: Technical Data

    11. Technical Data 11.1. General: Dimensions : Receiver 222 (W) x 146 (H) x 55 (D) mm incl. brackets 288 (W) x 170 (H) x 65 (D) mm Weight : approx. 1.5 kg Power Supply : 12 V nominal (11 to 15 V DC), : optional 10 to 36 V Power Consumption : 200 mA in Stand-by,...
  • Page 60 11.4 Signal-Converter - Decoder Converter : NF PLL lock system Decoding : Morse 40 tp 100 Bpm RTTY 50 Baud SITOR 100 Baud NAVTEX Timer : 9 - user programmable 11.5. LCD Display Display module L2014 Seiko or equivalent Display area 71 X 21 mm Resolution Text mode 4 lines 20 rows...
  • Page 61 Tel: +44 1823 337900 Fax: +44 1823 334752 This book can be purchased by Fastnet Radio or in every qualified nautical bookshop. Fastnet Radio prepare the latest information for the most important sailing regions in Europe and will gladly send this on request.
  • Page 62 12.10. Beaufort Scale of Wind Beaufort Description Average Average Description Scale Wind Force in Wind force in the in kn Weather Chart calm <0.2 <1 light air 0.3 – 1.5 1 – 3 slight breeze 1.6 – 3.3 4 –6 gentle breeze 3.4 –...
  • Page 64 12.11. Beaufort Scale of Waves See table on page 417 of the Admiralty List of Signals NP 283(1).
  • Page 65 12.12. Propagation of SW Signals One of the questions raised frequently is to determine which transmissions can be received at what distance from the transmitter. There are a number of factors that affect short-wave reception and distance vary greatly depending on time of day and year, sun activity and amount of traffic in a particular band.
  • Page 66 12.13 Reception Antennæ onboard Vessels Radio receivers are today standard equipment on board sea-going vessels. In most cases it is seldom taken into account, that every receiver, no matter how expensive it is, can only function as good as its antenna. What should one take into consideration when choosing an antenna? The frequency range of the antenna must have the same range as the receiver, at least have the same range that is going to be used.
  • Page 67 Alternatively an active antenna can be used. The input resistor in the amplifier of an active antenna is very high, therefore it requires a very short whip. The output resistor of the amplifier is 50 throughout the whole of the specified frequency range, so that a corresponding coaxial cable also with 50 which transmits the signal from the antenna without further loss of adaptation.
  • Page 68 12.14. MORSE Code Table The FMD25 will recognise the following code and translate accordingly: MORSE Code Character Remarks – – – Ä – – – Å,Á displayed as „a“ – – – – – – – – – – –...
  • Page 69 MORSE Code Character Remarks – – – – – – – – – – – – – – – – – – – – – – – – – – – – – Closing Parenthesis – – – Opening Parenthesis –...
  • Page 70 Die aktuellen Sendezeiten entnehmen Sie bitte den Sendepläne in der Admiral List of Radio Signals Volume 3 Band 1+2, dem Nautischen Funkdienst oder dem Yachtfunkdienst. Fastnet Radio, Hamburg informiert Sie auf Anfrage auch gerne über die aktuellen Sendepläne der wichtigsten Sendestationen.
  • Page 71 Die aktuellen Sendezeiten entnehmen Sie bitte den Sendepläne in der Admiral List of Radio Signals Volume 3 Band 1+2, dem Nautischen Funkdienst oder dem Yachtfunkdienst. Fastnet Radio, Hamburg informiert Sie auf Anfrage auch gerne über die aktuellen Sendepläne der wichtigsten Sendestationen.
  • Page 72 PLASTIC BAGS WITH DANGEROUS AND TOXIC CHEMICALS IN POWDER ARE FOUND SOME BAGS ARE DAMAGED AVOID TOUCHING BAGS OR CHEMICALS BAGS ARE EXPECTED TO BE OFF BELGIA COAS T ON THE 26TH OF DECEMBER NAVTEX 518 kHz TA23 10-2-94 02:10UTC page 13-3 FMD25 10/99...
  • Page 73 SKAGERRAK UND KATTEGAT GEFAHR WEST 10. EX ELTE UND SUND SOWIE WESTLICHE OSTSEE GEFAHR WEST 9. SUEDLICHE OSTSEE GEFAHR SUEDWEST BIS WESTKURECHTDREHEND. SUEDOESTLICHE OSTSEE GEFAHR SUEDWESTXON RCHTYREHEND. ZENTRALE OSTSEE GEFAHR SUED BIS SUEDWEST 7, RECHTDREHEND. SEEWETTERAMT= page 13-4 FMD25 10/99...
  • Page 74 GA50 TA61 TA53 TA31 TA03 TA23 SA28 SA27 SL07 SA19 SA17 SA05 SA72 SA68 SA60 SA08 SA95 GA53 SB24 OB86 SB24 SA28 SL07 SA19 SA05 SA72 SA68 GMDSS MARINE RADIO DECODER FMD25BS 1.1x FASTNET LADY FASTNET RADIO page 13-5 FMD25 10/99...
  • Page 75 14. Appendix 14.1. Service and Maintenance Your FMD25 has been designed to require only a minimum of maintenance. When changing paper rolls it is advisable to ascertain that dust that may have collected in the paper compartment is removed. There are no parts inside the case and service should be left to qualified personnel.
  • Page 76 Please return this unit to the dealer from whom it was purchased, for guarantee repairs. Whenever a unit is returned for servicing please include a complete fault description, a copy of your warranty card and / or proof of purchase. page 14-2 FMD25 10/99...
  • Page 77 Guarantee service will be carried out world-wide by the authorised dealers or the national Fastnet Radio AG agents. Products purchased from Fastnet Radio AG, which are returned, will be repaired during normal working hours or replaced. Freight costs or customs duties and other incidental charges are at the expense of the purchaser.
  • Page 78 Further updates are chargeable and should be ordered through your dealer or directly from Fastnet Radio at the address mentioned above. Up-date Enquiry : should you have an enquiry, lease fill out the attached form...

  • Page 79: Error Alarm

    14.5. Error Alarm The FMD25 has an integrated control function . In case of an error, an acoustic alarm will sound. This is a combination of short and long beeb tones. 14.5.1. „PRINTER-ERROR“ Alarm Should there be a fault in the printer (e.g. paper jam or end of the paper roll), the display will show “PRINTER ERROR”, at the same time an alarm...
  • Page 80 ENQUIRY Fastnet Radio AG Deelböge 5-7 22297 Hamburg Subject: Software Up-date FMD25 Please send me information concerning a software up-date for the FMD25 to the following address: Name : _____________________________________ Street : _____________________________________ Zip code/City : _________ ___________________________ Country : _____________________________________...
