STRUCTUBE
ASSEMBLY INSTRUCTIONS
INSTRUCTIONS DE MONTAGE

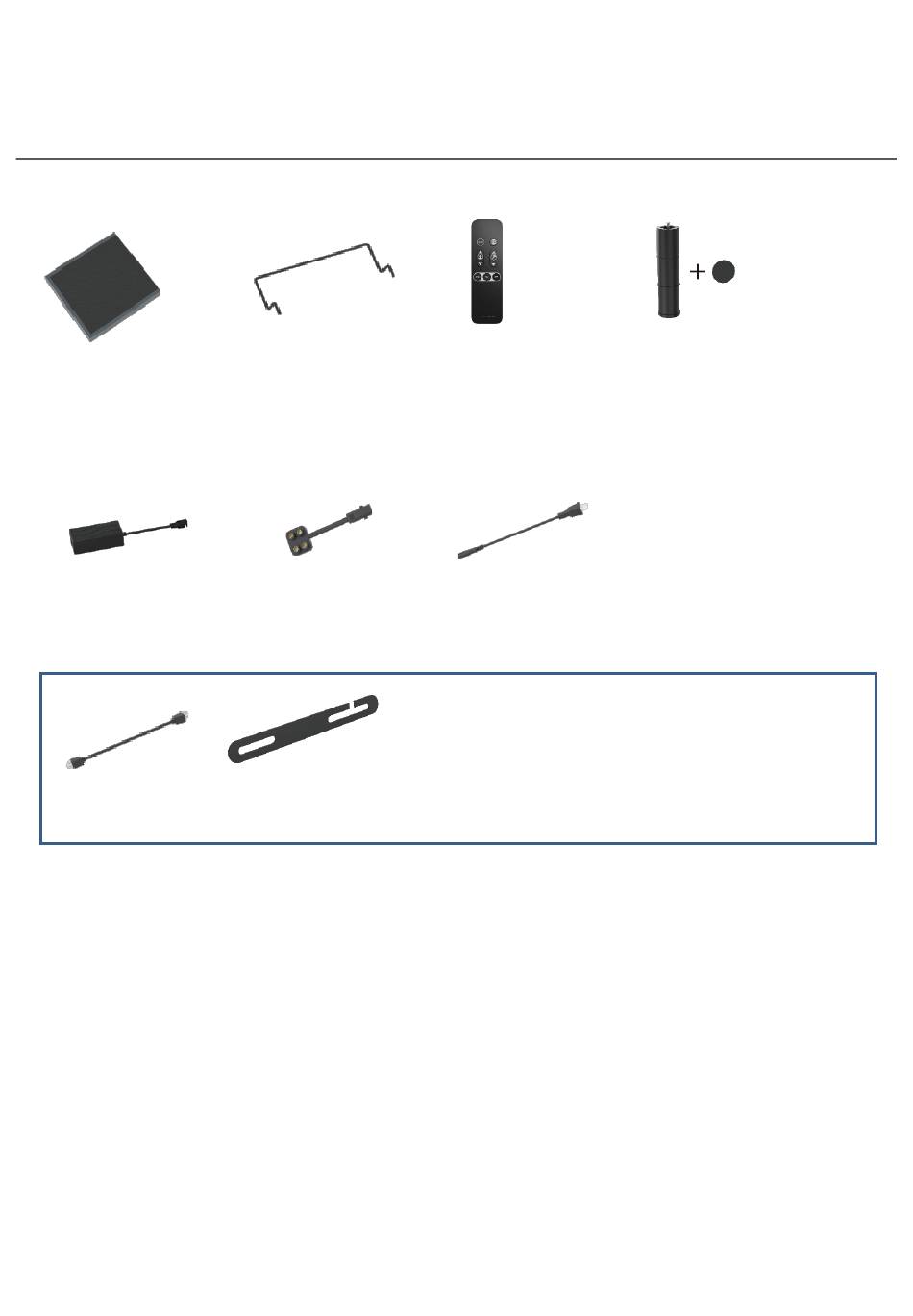

COMPONENTS / COMPOSANTES
Bed Frame
Ax1
Power Supply
Ex1
Hx1
PLEASE NOTE / VEUILLEZ NOTER
-
FOR USER SAFETY PERIODICALLY VERIFY AND TIGHTEN ALL FITTINGS / POUR LA SÉCURITÉ DE
L'UTILISATEUR VÉRIFIER ET SERRER PÉRIODIQUEMENT TOUS LES RACCORDS
-
THIS ITEM IS DESIGNED FOR RESIDENTIAL USE ONLY / CET ARTICLE EST CONÇU POUR UN
USAGE RÉSIDENTIEL UNIQUEMENT
-
USE POWER TOOLS ONLY WHEN INDICATED / UTILISER DES OUTILS ÉLECTRIQUES UNIQUEMENT
QUAND INDIQUÉ
-
FOR AFTER-SALES PARTS SERVICE PLEASE REFERENCE: / POUR LE SERVICE APRÈS-VENTE DE
PIÈCES, VEUILLEZ VOUS RÉFÉRER: 17.72.58.v1_117794
-
ASSEMBLY INSTRUCTIONS MAY BE REVISED AT ANY TIME. THE MOST RECENT VERSION CAN BE
FOUND BY VISITING: / LES INSTRUCTIONS DE MONTAGE PEUVENT ÊTRE RÉVISÉES À TOUT
MOMENT. LA VERSION LA PLUS RÉCENTE PEUT ÊTRE TROUVÉE À: WWW.STRUCTUBE.COM
Mattress
Retainer Bar
Bx1
Backup
Battery
Holder
Fx1
Ix1

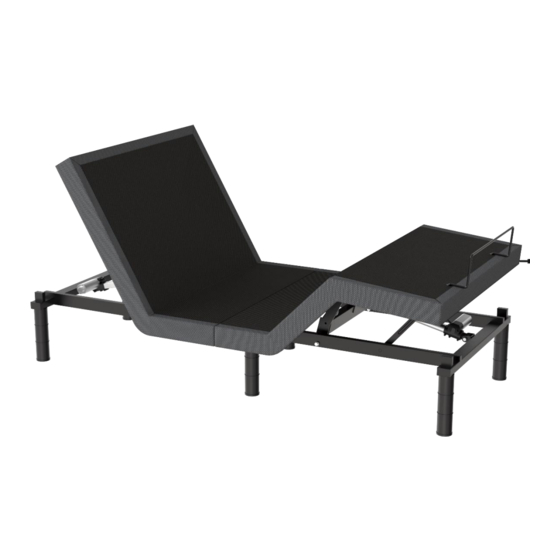

LIFESTYLE ADJUSTABLE TWIN XL BED /
Remote Control
Cx1
AC Power Cord
Gx1
Sync cable and sync strap will only be used
when 2 bases are being linked together. If
not being used, please keep in a safe place
for possible future use.
LOFT
BASE STYLE DE VIE SIMPLE XL
Adjustable Leg/
Foot Pad
Dx6
1/9
Advertisement
Related Manuals for STRUCTUBE LOFT
Summary of Contents for STRUCTUBE LOFT
- Page 1 PIÈCES, VEUILLEZ VOUS RÉFÉRER: 17.72.58.v1_117794 ASSEMBLY INSTRUCTIONS MAY BE REVISED AT ANY TIME. THE MOST RECENT VERSION CAN BE FOUND BY VISITING: / LES INSTRUCTIONS DE MONTAGE PEUVENT ÊTRE RÉVISÉES À TOUT MOMENT. LA VERSION LA PLUS RÉCENTE PEUT ÊTRE TROUVÉE À: WWW.STRUCTUBE.COM...
- Page 2 For spills that result in stains, first attempt to clean with mild diluted dish soap in water, and if that doesn’t work consult a furniture cleaning specialist. Structube does not test nor recommended any particular cleaning product. After cleaning make sure to dry the area with a fan or blow dryer without heat.
- Page 3 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE components are completely dry before reconnecting. • Never operate with a damaged cord or plug. • Keep the cord away from heated surfaces.
- Page 4 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE ELECTRICAL OVERVIEW Sync Cable (only required when syncing two beds) Underbed lighting Power Supply Control box Linear Actuator...
- Page 5 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE Remove the bed base from the box, unfold top-side down on a clean/level surface. Remove the parts box. Attached the legs: a.
- Page 6 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE Connect the power supply. With a minimum of two persons turn the base over. Insert the mattress retainer bar. Insert Warning Use caution when lifting the base.
- Page 7 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE Connect the power. Test all functions BEFORE placing the mattress. AC Power Cord...
- Page 8 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE BACKUP BATTERY OPERATION For emergency use only, in case of a power outage. Battery backup is not to be used for regular operation of the bed.
- Page 9 STRUCTUBE LOFT LIFESTYLE ADJUSTABLE TWIN XL BED / ASSEMBLY INSTRUCTIONS BASE STYLE DE VIE SIMPLE XL INSTRUCTIONS DE MONTAGE 4) Connect the battery backup to where the power supply control box was previously connected. Using the head down and foot down buttons on the remote lower to desired position.
- Page 10 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL Remote Control Overview Zero Gravity Flat Position Position Head Up Foot Up Head Down Foot Down Underbed Programmable Lighting Postion M1 Programmable Postion M2 One touch FLAT preset position One touch to Zero Gravity preset position...
- Page 11 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL OPERATING THE REMOTE PROGRAMMING MEMORY M1 and M2 To save to M1 – Press & hold the "M1" button until the backlight flashes 3 times (approx. 5 seconds). To save to M2 – Press & hold the "M2" button until the backlight flashes 3 times (approx.
- Page 12 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL SYSTEM RESET Press & hold the ''ZeroG'' + ''FLAT'' simultaneously until the backlight flashes 3 times. All functions are reset to factory settings. SYNCHRONIZING TWO BASES NOTE • BEFORE SYNCHING THE REMOTE PLEASE ASSEMBLE THE SYNC STRAP AND SYNC CABLE •...
- Page 13 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL INSTALLATION OF SYNC STRAP AND SYNC CABLE 1) DISCONNECT THE POWER FROM WALL OUTLET 2) Place both bases side-by-side and connect the sync strap by loosening the feet at the uppermost height (touching the metal frame). Do this twice – Once at the level of the head and once at the level of the foot.
- Page 14 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL Remote Control Pairing The remote control and base are paired before leaving the factory. If the remote is not working first verify if the batteries are good. STEPS TO PAIR 2) Re-plug the power immediately...
- Page 15 LIFESTYLE ADJUSTABLE TWIN XL BED “LOFT” OPERATION MANUAL Troubleshooting DO NOT OPEN OR ATTEMPT TO REPAIR ANY ELECTRICAL COMPONENTS ENSURE THE BASE IS UNPLUGGED WHEN VERIFYING CABLES AND CONNECTIONS THE BASE HAS MOVING PARTS, TAKE CAUTION TO AVOID FINGER PINCH AND/OR CRUSHING INJURIES...
