Summary of Contents for Vremi VRM050517N
- Page 1 No Foolin’ All Coolin’. Portable Air Conditioner This Is A Manual. Portable Air Conditioner...
-
Page 2: Before First Use
Failure to keep the product in its original quality from the time of receipt may impede Vremi®’s ability to correct any legitimate problem and may limit the extent to which Vremi® may provide recourse. -
Page 3: Table Of Contents
Drop Us A Line 27 Thank you for choosing our Portable Air Conditioner. Before using your unit, please read this manual carefully. Should you have questions, please contact Customer Service at vremi.com/chat, 646-490-9904 or support@vremi.com. Portable Air Conditioner Table Of Contents 3... -
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS · Specific information regarding ACCORDING TO EUROPEAN STANDARDS (ENS): appliances with refrigerant gas. · R410A, R134a, R290, R32 is a refrigerant · This appliance can be used by children that complies with European (at least 8 years of age), persons with ecological standards;... - Page 5 · Always transport your appliance in · If the appliance is making unusual sounds a vertical position and place on a stable, or is emitting smoke or an unusual odor, level surface. If the unit is transported unplug it immediately. laying on its side, it should be positioned ·...
-
Page 6: Electrical Connections
This appliance is not intended for use by ELECTRICAL CONNECTIONS persons (including children) with reduced physical, sensory, or mental capabilities, Before plugging the appliance into the or with lack of experience and knowledge, main socket, check that: unless they are under adult or guardian ·... - Page 7 · Reorient or relocate the receiving antenna. · Increase the separation between the equipment and Receiver. · Connect the equipment into an outlet on a circuit different from that to which the Receiver is connected. · Consult the dealer or an experienced radio/TV technician for help.
-
Page 8: Description Of Parts
Description Of Parts DESCRIPTION Control Panel 2. Handle (both sides) 3. Castors 4. Deflector 5. Remote Control Receiver 6. Intake Grille Air Outlet Grille 8. Intake Grille 9. Power Cable 10. Plug Fixer 11. Middle Drainage 12. Condenser Drain NOTE: All the illustrations in this manual are for explanatory purposes only. -
Page 9: Installation Instructions
Installation Instructions EXHAUSTING HOT AIR In “Cool” mode, the appliance must be placed close to a window or opening so that the warm exhaust air can be ducted outside. First, position the unit on a flat floor. Next, make sure there’s a minimum of 18" (45 cm) clearance around the unit and that it is Slide Into within the vicinity of a single circuit outlet... -
Page 10: Window Slider Kit Installation
WINDOW SLIDER KIT INSTALLATION 1. Parts: A) Panel with two holes; B) Panel with one hole; C) Panel without a hole; D) Screw for locking the Window Kit in place. 2. Assembly: Slide Panel B and C into Panel A and size them to window width. -
Page 11: Operating Instructions
DOUBLE-HUNG SASH/SLIDING CASEMENT WINDOW INSTALLATION 1. Cut the Foam Seal (adhesive type) to the Foam proper length and attach it to the window sash. Seal Foam Seal 2. Attach the Window Slider Kit to the window sash. Adjust the length of the Window Slider Window Sash Kit according to the width of the window. -
Page 12: Turning The Appliance On
TURNING THE APPLIANCE ON Plug the appliance to the main socket. The appliance will be on “Standby” mode. Press the button to turn the appliance on. The last function that was active when the appliance was last turned off will automatically be applied. COOL MODE Ideal for hot and muggy weather when you need to cool and dehumidify the room. -
Page 13: Fan Mode
VRM050518N / VRM050520N N.B.: · When operating in very cold rooms, the appliance defrosts automatically, momentarily interrupting normal operation. During this operation, it is normal for the noise from the appliance to change. · In this mode, you may have to wait for a few minutes before the appliance starts producing hot air. -
Page 14: Self-Diagnosis
Programming Shut Down 3. A few seconds after the Timer is set, the unit will memorize that setting. The 1. When the appliance is running, press the “Timer” indicator will light up and the button. The “Timer” indicator and the display will show the current mode. -
Page 15: Remote Control
Remote Control DISPLAY AREA ICONS Cooling Mode Swing Dry Mode Fan Speed Fan Mode Auto Speed Heating Mode Child Lock Smart Mode Timer On Signal Timer Off Display Digits Sleep Temperature or Hours Turbo °F or °C Follow Me Temperature BUTTON ICONS On/Off Button Turbo... -
Page 16: Inserting Or Replacing The Batteries
INSERTING OR REPLACING THE BATTERIES 1. Remove the cover on the rear of the Remote Control. NOTE: · If the Remote Control unit is replaced 2. Insert two “AAA” 1.5 V batteries or disposed of, the batteries must in the correct position (see instructions be removed and discarded in inside the battery compartment). - Page 17 VRM050518N / VRM050520N HEAT MODE* *This means only the heat pump model has “Heat” mode. If the appliance is a cooling only model, when you choose “Heat” mode, “Fan” mode will turn on. To Set This Mode Correctly: 4. Water is removed from the air and collected in the tank.
-
Page 18: Smart Mode
Three speeds are available: High / Low / Auto. VRM050517N / VRM050519N If the appliance is a cooling only model, the unit operates in “Fan“ mode when the room temperature is below 73°F (23°C) and in “Cool“ mode when the room temperature is above 73°F (23°C). -
Page 19: Sleep Function
SLEEP FUNCTION This function is useful at night (e.g. during bedtime), as it gradually reduces the unit’s operation. To Set This Function Correctly: 1. Select “Cool” or “Heat” mode as described above. 2. Press the button until the symbol appears. The light on the display will go dim and after 1 minute, the light will completely turn off. - Page 20 SWITCH THE UNIT OF TEMPERATURE While the appliance is running, press button to change the unit of temperature. For Example: Before the change, in “Cool” mode, the display on the screen will be similar to Fig. 9. Fig. 9 Fig. 10 After the change, in “Cool”...
-
Page 21: Child Lock Function
CHILD LOCK FUNCTION This function is used to prevent children from pressing the Remote Control carelessly or accidentally. In the event that they do, no changes on the Air Conditioner’s operation will take place when the “Child Lock” function is on. 1. -
Page 22: Tips For Correct Use
Tips For Correct Use To get the best from your appliance, follow these recommendations: · Close the windows and doors in the room where the Air Conditioner will be used ( Fig. 15). When installing the appliance semi-permanently, you should leave the Close Doors door slightly open (as little as 0.4"... -
Page 23: Water Drainage Method
Water Drainage Method When there is excess water condensation inside the unit, the appliance stops running and shows symbol (“Full Tank” as mentioned in the “Self-Diagnosis” section of this manual [p. 14]). This indicates that the water condensation needs to be drained through the following procedures: MANUAL DRAINING ( FIG. - Page 24 MIDDLE DRAINAGE When the unit is in “Dry” mode, follow the drainage instructions below: 1. Unplug the unit from the power source. 2. Remove the drain plug ( Fig. 22). While doing this operation, some residual water may spill so please have a pan ready to collect the water. 3.
-
Page 25: Cleaning
Cleaning Before cleaning or maintenance, turn the appliance off by pressing the button on the Control Panel, or on the Remote Control. Wait for a few minutes then unplug from the main socket. CLEANING THE CABINET You should clean the appliance with a slightly damp cloth, then dry with a dry cloth. ·... -
Page 26: Troubleshooting
Troubleshooting PROBLEM CAUSE SOLUTION ∙ There is no current ∙ Wait ∙ It is not plugged into the ∙ Plug into the main socket The appliance ∙ Wait 30 minutes. If the main socket does not turn ON ∙ The internal safety device problem persists, contact has tripped Customer Serivce... -
Page 27: Warranty Information
Vremi® offers a 12-month warranty on all of our products purchased new and unused from Vremi® LLC or an authorized reseller, with an original proof of purchase and where a defect has arisen, wholly or substantially, as a result of faulty manufacturing, parts or workmanship during the Warranty Period. - Page 28 Questions? vremi.com/chat support@vremi.com 646-490-9904 28 Drop Us A Line Portable Air Conditioner...
Need help?
Do you have a question about the VRM050517N and is the answer not in the manual?
Questions and answers

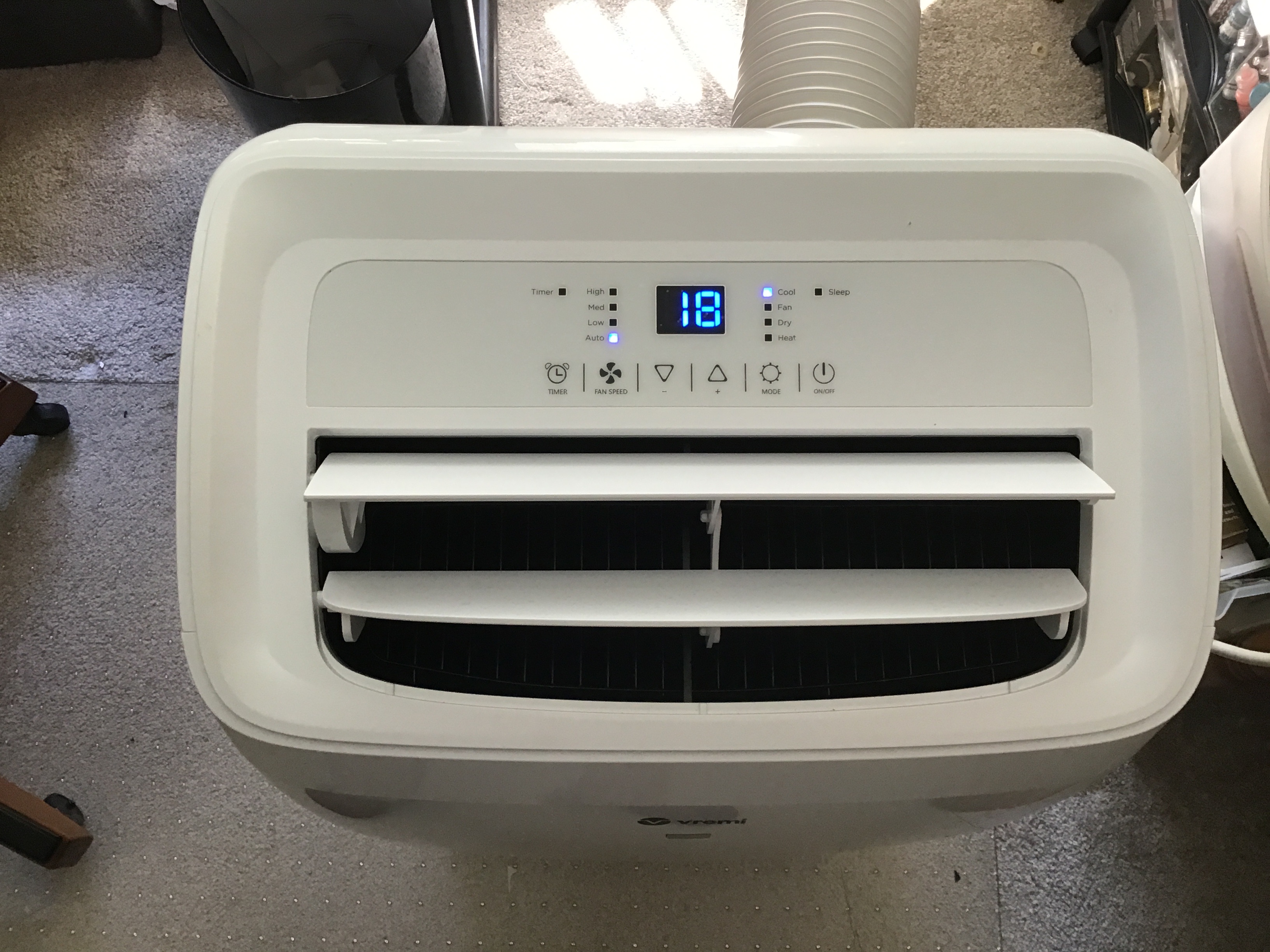

My unit is set on cool, auto, and 18. There’s no cool air coming out.
