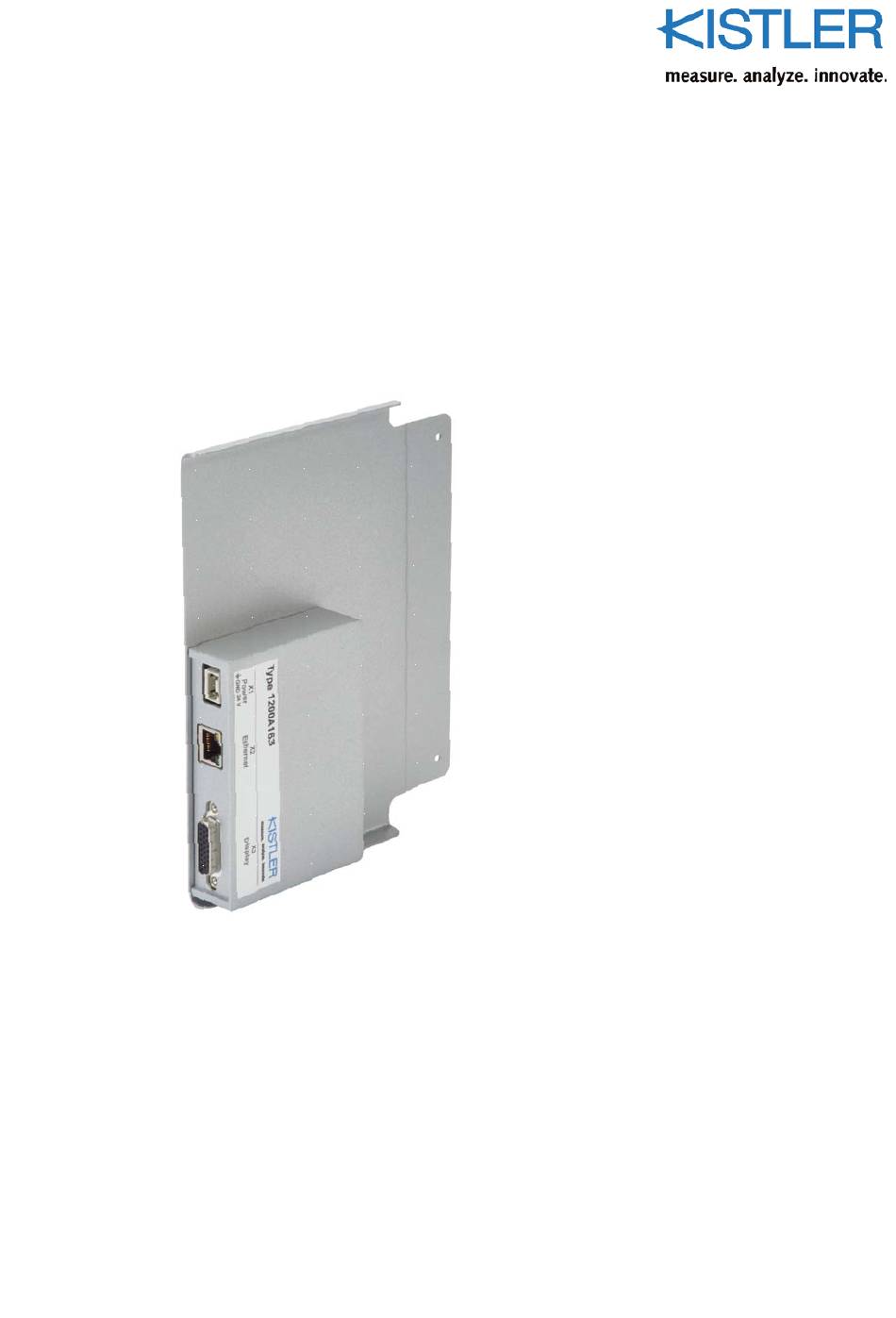

- Page 1 Instruction Manual Active Cable Extension between maXYmos MEM and DIM DIM Cable Extender Type 1200A163 DIM_002-745e-04.16...
- Page 3 The specifications in this manual can change at any time without prior notification. Kistler reserves the right to improve and to change the product for the purpose of technical progress without the obligation to inform persons and organizations as the result of such changes.
-
Page 4: Table Of Contents
DIM Cable Extender, Type 1200A163 Index Introduction ........................... 3 Important Notes ..........................4 For Your Safety ........................4 Unpacking ..........................5 Transport and Storage ......................5 Intended Operation ......................5 ... -
Page 5: Introduction
To the extent permitted by law Kistler does not accept any liability if this instruction manual is not followed or products other than those listed under Accessories are used. -
Page 6: Important Notes
2. Important Notes You must heed the following notes; these are provided for your personal safety when working with DIM Cable Extender Typ 1200A163 nd ensure long, trouble free operation. 2.1 For Your Safety The device has been constructed and tested in compliance with EN publication 61010-1 (safety regulations for electronic measuring instruments);... -
Page 7: Unpacking
2.2 Unpacking Check all instrument packaging for damage in transit. Notify the shipping company and the responsible Kistler Sales Company or representative of any such damage. Please check the shipment before beginning with the setup of the instrument system. If any part is missing, please contact the responsible Kistler Sales Company or representative. -
Page 8: Electromagnetic Compatibility (Emc)
Do not discard old electronic instruments in municipal trash. For disposal at end of life, please return this product to an authorized local electronic waste disposal service or contact the nearest Kistler Instrument sales office for return instructions. consisting wood,... -
Page 9: Basic Information About The Device
3.1 Device Model / Ordering Key The complete type designation of the DIM Cable Extender is reflected in the ordering key as follows: Ordering key: DIM Cable Extender Type 1200A163 3.2 Included Accessories The DIM Cable Extender is supplied including: Operating voltage connector 55145411 with junction box 3.3 Optional Accessories... -
Page 10: System Description
DIM Cable Extender, Type 1200A163 3.4 System Description The DIM Cable Extender Type 1200A163 is composed of a compact housing with an integrated mounting plate that can be inserted and screwed in place at the back panel of the maXYmos DIM Type 5877AZ000 display. This connection establishes direct contact between the display connector and the DIM Cable Extender. -
Page 11: Operation
Operation 4. Operation 4.1 Installation and Wiring The DIM Cable Extender Type 1200A163 is inserted into the rear panel of the maXYmos DIM Type 5877AZ000 display and fixed in place with two screws. The network cable necessary to connect the measurement... -
Page 12: Display Operation
DIM Cable Extender, Type 1200A163 5. Display Operation 5.1 Home Icon After plugging in the DIM Cable Extender at the display Home icon and establishing the operating voltage, you will see the Home icon of the DIM Cable Extender in the top left corner. -
Page 13: Display Setup Window
Display Operation 5.3 Display Setup Window A tap on the ‘Setup’ button opens the ‘Display setup’ window of the DIM Cable Extender (the ‘Display setup’ tab at the top is in the foreground). This window shows the network settings of the DIM Cable Extenders in the ‘Network Settings’... -
Page 14: Bookmarks Window
DIM Cable Extender, Type 1200A163 5.4 Bookmarks Window The ‘Connections’ window lists the measurement modules that can be selected by their IP address. Use the ‘Bookmarks’ window area to add or remove additional measurement modules. You open the ‘Bookmarks’ window by tapping on the corresponding tab in the top portion of the screen (when in ‘Display Setup’... -
Page 15: Description Of Connections
Description of Connections 6. Description of Connections 6.1 Operating Voltage Input X1 Pin Assignment Function Operating voltage 24 VDC 3-pin plug connector WAGO 734-163 Shielding (housing) 6.2 Ethernet Connection X2 Pin Assignment Function Ethernet 10/100 RX RX RJ-45 TX ... -
Page 16: Display Connection X3
DIM Cable Extender, Type 1200A163 6.3 Display Connection X3 Pin assignment Function Display connection LVDS_TX2+ HD-DSUB 26 LVDS_TX2– LVDS_CLK+ LVDS_CLK– BLEN N.C. N.C. N.C. +24 V_OUT LVDS_TX1+ LVDS_TX1– LVDS_TX3+ LVDS_TX3– PWREN N.C. N.C. N.C. N.C. LVDS_TX0+ LVDS_TX0– USB_HOST_D1+ USB_HOST_D1– 5 VA Page 14 DIM_002-745e-04.16... -
Page 17: General Technical Data
General Technical Data 7. General Technical Data Voltage supply 18 ... 30 Operating temperature range °C 0 ... 45 Power consumption: DIM Cable Extender only ≤4 Total ≤24 (inserted in maXYmos DIM) Dimensions including mounting 197x163x26.5 plate Protection class (connector and cable running downwards) DIM_002-745e-04.16 Page 15... -
Page 18: Index Directory
DIM Cable Extender, Type 1200A163 8. Index Directory Included Accessories ........7 Installation and Wiring ........9 B Intended Operation ......... 5 Basic Information ..........7 Introduction ............. 3 D O Description of Connections ......13 Operating Voltage Input X1 ......13 Device Model/Ordering Key ......
