Summary of Contents for Ferndale Safety EKS-MAC-KIT

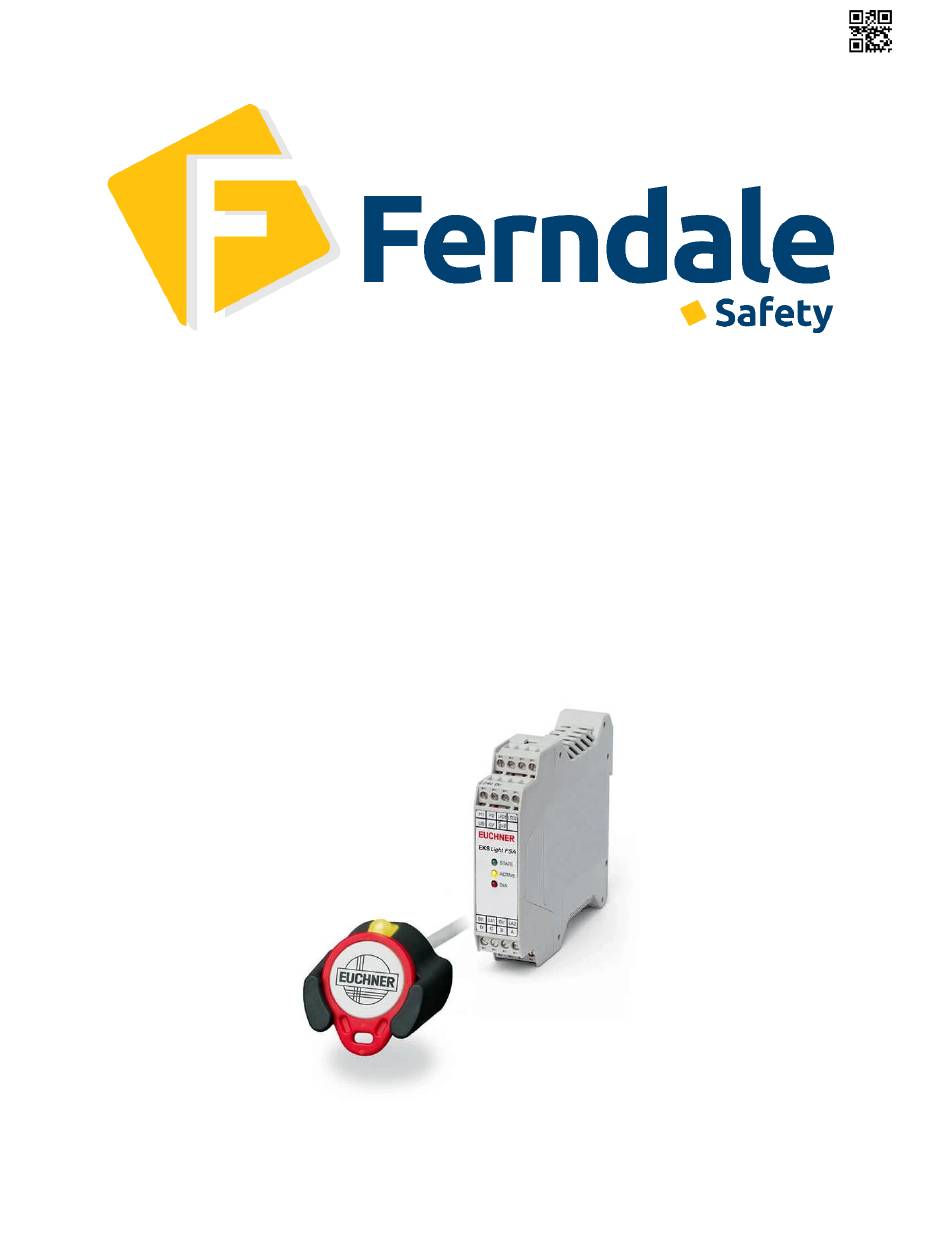

- Page 1 MAN-EKS Toll-Free: 855-326-1243 https://www.ferndalesafety.com MACHINE ACCESS CONTROL ELECTRONIC KEY SYSTEM MODEL EKS-MAC-KIT Quick Installation Guide...
-
Page 2: Other Components
Thank you for purchasing the EKS machine access control electronic system. We have made this installation guide to help you set up and use this Product. This guide assumes that you are familiar with industrial electronics and control wiring. If you need any extra help, please call us at 855-326-1243. FOR MORE DETAILED DOCUMENTATION, PLEASE VISIT: https://www.euchner.de/en-us/ Unboxing &... - Page 3 The Interface Adapter The interface adapter is the primary controller of the EKS system. The following screw terminals are located on the interface adapter. Connect to reader unit (Antenna) Connect to reader unit (Antenna) LED1 Connect to reader unit (LED 1) LED2 Connect to reader unit (LED 2) Connect to reader unit (Shield)
- Page 4 (S1.2 to S2.10) in the ON position, totaling three. S2.5 White **The key fobs are pre-programmed by Ferndale Safety based on their color. Please get in touch with us if you wish to S2.4 program the keys yourself or require a custom configuration.
- Page 5 The Reader Unit You can install the reader unit on a panel, button station, or flat sheet metal surface. It mounts into a standard 22.5mm or 7/8" hole. The included 2-meter cable plugs directly into the interface adapter. Use the following chart to match the reader unit wire color with the terminal on the interface adapter. The wire color Terminal on the Description...
- Page 6 The Mini Relay *Note: The relay you receive may vary from the image displayed. The included mini relay pairs your machine to the interface adapter. Install the mini relay between your machine's control circuit and the interface adapter. Mount this mini relay onto a standard DIN rail. The relay includes one single pole, double throw (SPDT) contact.
- Page 7 Electrical Schematic and Connections You need to provide a 24VDC power supply. Refer to the schematic provided to set up the included mini relay. Important: Do not connect contactors or high-powered devices to the interface adapter's output terminals. The maximum load current for terminals A, B, C, D, and Str is 50mA. For advanced features and connections, please refer to the Euchner manuals.
- Page 8 Appendix 1 LED Indicators LED and flashing sequences in regular operation and error events LED Color LED State Status Description Green Solid Ready for key The EKS system is ready. Yellow Solid Access approved A valid key is in the reader, and access is approved. Green/Yellow Flashing No Access...
- Page 9 Appendix 2 Technical Specifications Page 9 of 10...
- Page 10 WARRANTY Ferndale Safety's Commitment: Ferndale Safety ("FERNDALE") guarantees that its products are free from material and workmanship defects for one year from the date of purchase. Custom-made products carry a three-month (90 days) warranty from the date of purchase. Exclusions:...
