Summary of Contents for Chainway P80

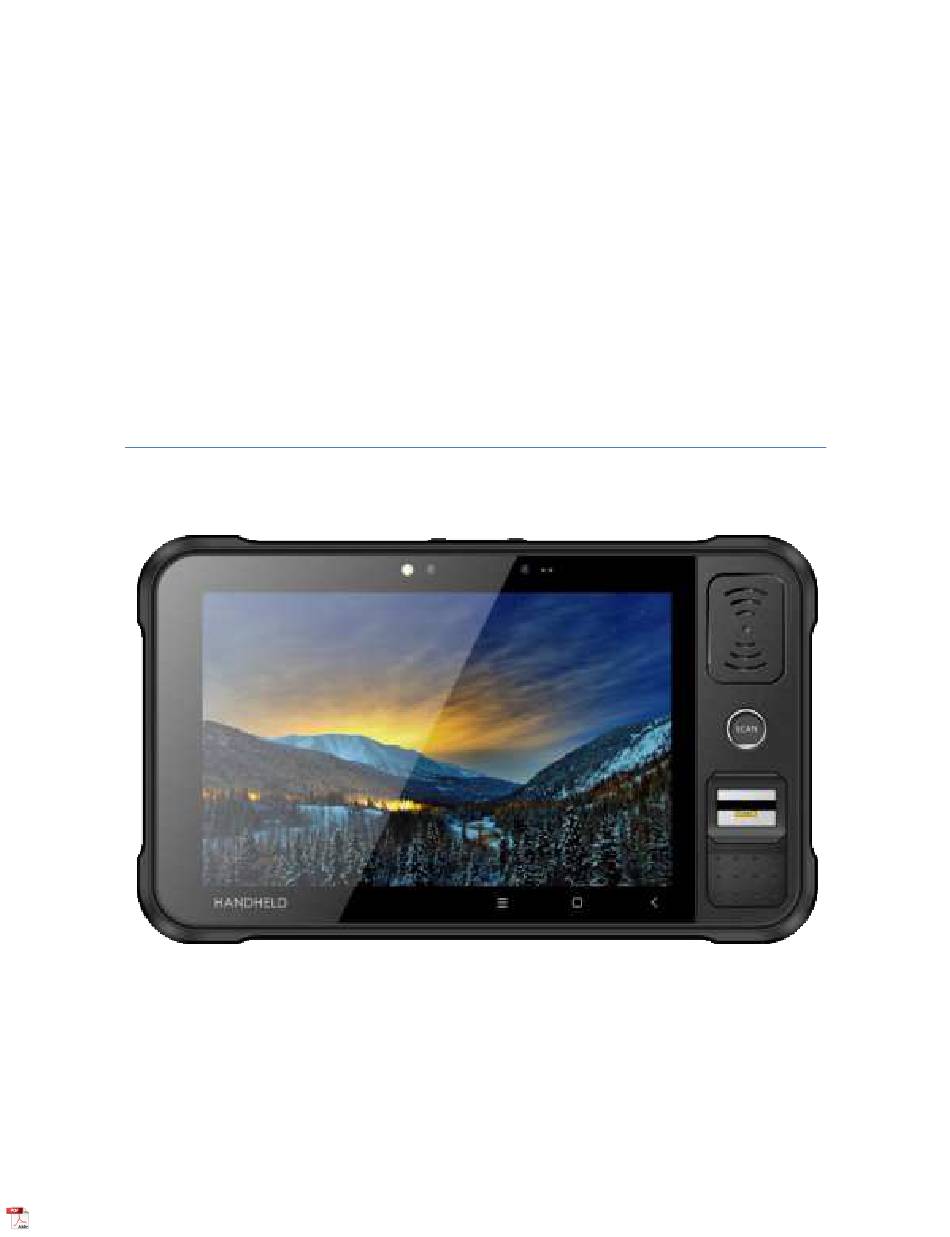

- Page 1 Industrial Tablet P80 User Manual Comes with the Google™ app and Google Chrome™ Android is a trademark of Google LLC.
-
Page 2: Table Of Contents
Catalog Chapter 1 Product Intro ................ 4 1.1 Intro ....................4 1.2 Precaution before using battery ..........5 1.3 Charger ..................6 1.4 Notes ..................7 Chapter 2 Installation instructions ............8 2.1 Appearance ................8 2.2 Install Micro SD and SIM cards ..........10 2.3 Battery charge ................. -
Page 4: Chapter 1 Product Intro
Chapter 1 Product Intro 1.1 Intro Chainway P80 with Android 13 is a newly upgraded rugged tablet that has abundant functions. With its powerful Octa-core CPU, 8-inch high definition screen, 8700mAh battery and comprehensive data capture options like UHF RFID, barcode scanning, fingerprint recognition, NFC, etc., you can find this easy-to-deploy device a valuable helper... -
Page 5: Precaution Before Using Battery
1.2 Precaution before using battery Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly. -
Page 6: Charger
1.3 Charger The charger type is PWR series, output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter. -
Page 7: Notes
1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher. The connection to so called power USB is prohibited. -
Page 8: Chapter 2 Installation Instructions
Chapter 2 Installation instructions Appearance... - Page 9 Function Guide Power Button SCAN Button Volume Setup Fingerprint SIM/TF Card Slot TYPE-C Port...
-
Page 10: Install Micro Sd And Sim Cards
Install Micro SD and SIM cards The cards sockets are showing as follows:... -
Page 11: Battery Charge
Battery charge By using USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device. -
Page 12: Chapter 3 Call Function
Chapter 3 Call function 3.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts. -
Page 13: Chapter 4 Barcode Reader-Writer
Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed. - Page 14 1D barcode: 2D code:...
- Page 15 Max. radiant power: 0.6mW Wave length: 655nM IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard.
-
Page 16: Chapter 5 Other Functions
Chapter 5 Other functions 6.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address. -
Page 17: Bluetooth
6.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents. -
Page 18: Gps
6.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information. -
Page 19: Volume Setup
6.4 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements. How to capture screenshot: Press and hold power button and Volume – at same time. -
Page 20: Network
6.5 Network 1. Click “Network” in App Center. 2. Click "Start" to check the IP address and PING information. -
Page 21: Fingerprint Module
6.6 Fingerprint Module 1. Click “Fingerprint(morpho)” in Appcenter. 2. Click “acquisition” after module has initiated successfully and click “CleanAll”. 3. Select “Security Level” to 0 and click “set” and “get”. 4. Click “Enroll” and put your finger on captor and follow the tips to start capture fingerprint. -
Page 23: Rfid
6.7 RFID Click App Center, open “UHF” to read and write, kill and lock UHF tag. -
Page 24: Chapter 7 Device Characteristic
Chapter 7 Device characteristic Physical characteristics Size 250.8mm x 152mm x 15mm/ 9.87 x 5.98 x 0.59in Weight 680 g / 23.99 oz. ( for standard version ) Display 8'' IPS LTPS 1920x1200 Touch panel Corning Gorilla Glass 3, multi-touch panel gloves and wet hands supported Battery Main battery: Li-ion, rechargeable, 8700mAh... - Page 25 CDMA EVDO:BC0 WCDMA: B2/B5 TDD-LTE: B40/B41 FDD-LTE: B2/B4/B5/B7/B12/B13/B17 WLAN Support 802.11 a/b/g/n/ac,2.4G/5G dual-band, IPV4,IPV6; WPAN Bluetooth 5.0 Data collection Barcode Zebra SE4710 (standard) scanning Zebra SE4850 (optional) RFID NFC 13.56Mhz Developing Environment Chainway software develop kit Language Java Develop Eclipse/Android Studio...
- Page 26 Appendix FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment.
- Page 27 FCC SAR statements: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types MC62 ( FCC ID: 2AC6AP80P ) has also been tested against this SAR limit. This device was tested for typical body operations with the back of the device kept 0mm from the body.
