Summary of Contents for EARLDOM AT01

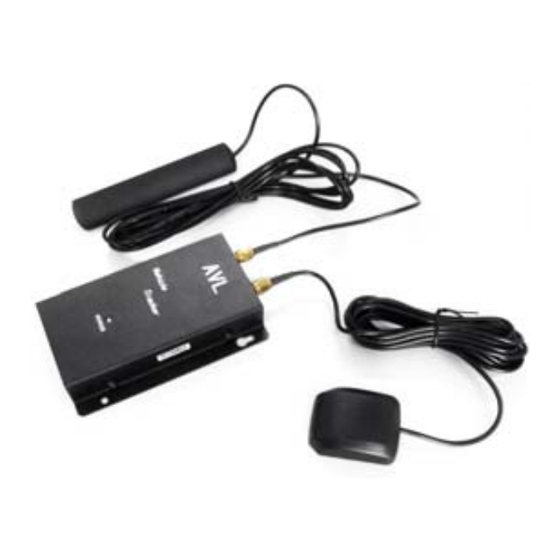

- Page 1 Vehicle Tracker USER MANUAL AT01...
-
Page 2: Table Of Contents
5.1.2 Set Interval for Automatic Timed Reports 5.1.3 Stop Automatic Timed Report 5.2 GPRS Settings 5.2.1 Set ID for AT01 by SMS 5.2.2 Set APN by SMS 5.2.3 Set IP Address and Port by SMS 5.2.4 Set Time Interval for Sending GPRS Package 5.2.5 Enable GPRS Function... -
Page 3: Product Overview
1 Product Overview AT01 provides an easy way to track your vehicle and provides peace of mind by showing you with your mobile phone or PC the location of your vehicle via SMS or GPRS. AT01 has the following features:... -
Page 4: Getting Started
Power is off or it has other problem 4.3 Connecting and Installation Read this manual before using your AT01 and check if all parts are included in the packaging box. Ensure that your AT01 has a working SIM installed. - Check that the SIM has not run out of credit (test the SIM in a phone to make sure it can send and... - Page 5 - Insert the SIM card by sliding it into the card slot with the chip module facing to the connectors on PCB. - Put back the front cover and screw it up. Connect the GPS Antenna to the unit. Connect the GSM Antenna to the unit. - GPS antenna is used to receive satellite signals in the sky.
-
Page 6: Sms Command
The default password is 000000. 5.1 Basic SMS Commands 5.1.1 Position Report Description: To know the position of your AT01, send an SMS or make a telephone call directly to AT01 and it will report its location by SMS. Command: W<password>,<000>... -
Page 7: Set Interval For Automatic Timed Reports
AT01 will then reply an SMS (‘Set SIM OK/120’) to confirm this setting. 5.2.2 Set APN by SMS Command: W<password>,011,APN,APN Name,APN Password Note: If no APN name and password required, input APN only. Example: W000000,011,CMNET AT01 will reply an SMS (like ‘Set APN OK /CMNET’) to confirm this setting. - 7 -... -
Page 8: Set Ip Address And Port By Sms
5.2.3 Set IP Address and Port by SMS Command: W<password>,012,IP,PORT Example: W000000,012,202.116.11.12,8000 AT01 will then reply an SMS (‘Set IP ok /202.116.11.12#8000’) to confirm this setting. 5.2.4 Set Time Interval for Sending GPRS Packet Command: W<password>,014,time interval(in unit of 10 seconds) - Page 9 When you receive: Latitude = 22 32 40.05N Longitude = 114 04 57.74E Type as the following picture shows: (Note: you should input the latitude and longitude: 22 32 40.05 114 04 57.74) Now you can find the location of your tracker: Or you can start the Internet Explorer and connect to http://maps.google.com for displaying the location.
-
Page 10: Troubleshooting
Cancel sleeping mode Wrong password in your SMS Insert the correct password The SIM in AT01 has run out of credit Replace or top up the SIM card No SIM card Insert working SIM card. Check in phone that the SIM can send SMS messages. -
Page 11: Command List
SMS to the SOS preset number. Set Geo-fence alarm W******,006,XX XX ( preset distance to original place ) =00, close When the AT01 moves out of =01, 30m preset scope, it will send one =02, 50m Geo-fence SMS to the SOS =03, 100m preset number. - Page 12 $GPRMC,072414.000,V,3114.3763,N, 12131.3255,E,0.00,0.00,050805,*00 C=0, AT01 does NOT automatically hang up when one call incoming. C=1, AT01 hangs up after 4~5 rings of an incoming call D=0, AT01 does NOT send one SMS to SOS preset number when AT01 is power on D=1, AT01 sends one SMS to SOS preset number when AT01 is power on.
- Page 13 Set ID for AT01 by SMS W******,010,ID Tracker ID must be less than 14 digits. Set APN by SMS W******,011,APN,APN Name, name password Password required, just insert APN only; APN defaulted as ‘CMNET’; APN + APN name + password not over 39 characters.
- Page 14 and max 32 characters version serial W******,600 To get version and serial number of number current firmware Get IMEI W******,601 To get IMEI - 14 -...
