Summary of Contents for Knauer AZURA Bio Compact

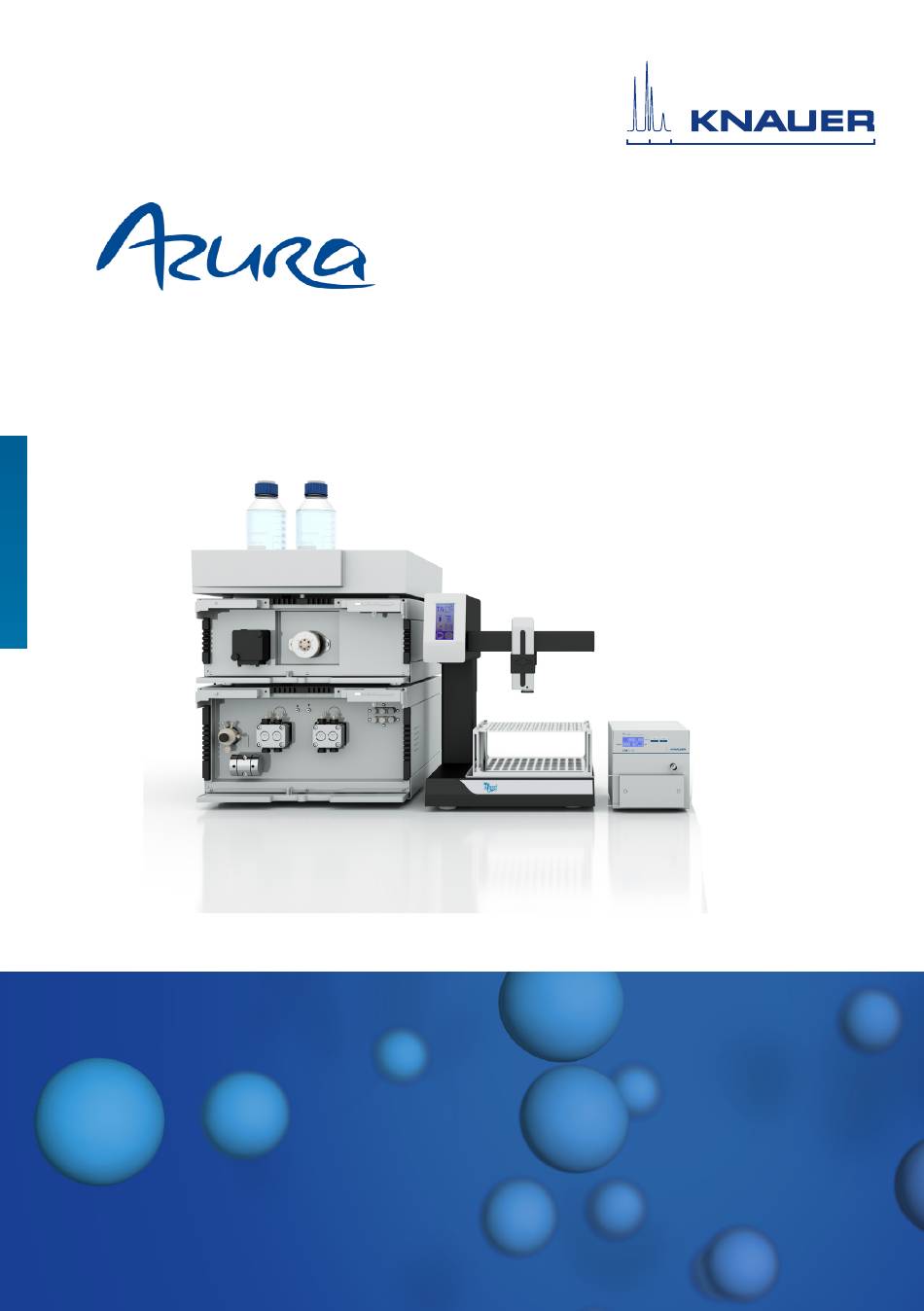

- Page 1 Pre-installation guide for Bio Purification Systems Document no. V6802-FPLC...
- Page 2 For latest version of the manual, check our website: www.knauer.net/en/Support/User-manuals Copyright: This document contains confidential information and may not be reproduced without written consent of KNAUER Wissenschaftliche Geräte GmbH. © KNAUER Wissenschaftliche Geräte GmbH 2019 All rights reserved. AZURA® is a registered trademark of...
-
Page 3: Table Of Contents
5.3 Power connection ............7 6. Minimum computer requirements ..........8 6.1 Minimum computer requirements for PurityChrom® ... 8 7. Uninstalling software, KNAUER drivers and extensions ..... 9 7.1 Settings for sleep function ......... 9 8. Technical data ................. 10 9. -
Page 4: Overview
A minimum of two people need to be present at the time of installation. The AZURA® Bio purification sys tem will be set up, installed and com- missioned by KNAUER or a company authorized and contracted by KNAUER. Note: KNAUER recommends inviting future users to be pre- sent while setting up and commissioning the system so that they can become familiar with it. -
Page 5: Amount Of Sockets
3.1 Amount of sockets System Sockets AZURA® Bio Compact* AZURA® Bio Lab* AZURA® Bio Pilot* * for basic configuration including PC, monitor and switch Additional device Sockets Additional detectors/detectors not included in ASM 2.1L Additional ASM 2.1L pH electrode None Air sensor** External pressure control** ** if both air sensor and external pressure control are included in the system only... -
Page 6: Requirements Of The Azura® Bio Purification System
Requirements of the AZURA® Bio Purification System 3.3.1 Space requirements ƒ At least 5 cm additionally on the side panels if another device is set up on one side. ƒ At least 10 cm additionally on the side panels if further devices are set up on both sides. -
Page 7: Azura® Bio Purification System
4. AZURA® Bio Purification System Note: The installation of doors (front covers) during operation is not intended for bio purification systems. 4.1 System layout examples 4.1.1 AZURA® Compact system A basic AZURA® Compact system typically consists of the following devices: ƒ... -
Page 8: Azura® Lab System
4.1.2 AZURA® Lab system A basic AZURA® Lab system typically consists of the following devices: ƒ Solvent tray ƒ Gradient pump ƒ Assistant including a single wavelength detector, injection valve and optional an isocratic sample pump ƒ Fraction collector ƒ Conductivity monitor Fig. -
Page 9: Azura® Pilot System
4.1.3 AZURA® Pilot System A basic AZURA® Pilot system typically consists of the following devices: ƒ Solvent tray ƒ Gradient pump consisting of two AZURA® P2.1L ƒ Assistant including a single wavelength detector, injection valve and an isocratic sample pump ƒ... -
Page 10: Power Supply
5. Power supply 5.1 Universal AC/DC switching power adapter The modules are equipped with an universal AC/DC switched-mode power adapter rated for 100–240 V AC. Power cable Power cables are part of the delivery. They are available for the following destinations: EU, USA, Switzerland, UK Power connection Prerequisites for power connection: ƒ... -
Page 11: Minimum Computer Requirements
6. Minimum computer requirements 6.1 Minimum computer requirements for PurityChrom® Requirements are fulfilled by the chromatography workstation offered with the instrument by KNAUER. Windows 10, 32/64 bit Windows 8, 32/64 bit Operating system Windows 7, 32/64 bit Windows Vista (SP2), 32/64 bit... -
Page 12: Uninstalling Software, Knauer Drivers And Extensions
7. Uninstalling software, KNAUER drivers and extensions To uninstall chromatography software and device drivers, use the Windows Control Panel (CONTROL PANEL > UNINSTALL A PROGRAM). 7.1 Settings for sleep function When you are working with the chromatography software, disable the sleep function. -
Page 13: Technical Data
8. Technical data Note: For technical data about external devices, please refer to the website of the producer. Power Dimensions Device Weight in kg con sumption (W×H×D) in mm in W Chromatography Approx. PC:180 workstation Approx. 8 Monitor: 27.3 560 x 560 x 530 (PC + 24“... -
Page 14: Checklist
Ambient conditions at installation site The installation site complies with the requirements with respect to equipment, temperature, humidity, vibration and high fre quency emissions. Computer and operating system The computer complies with the requirements or is delivered by KNAUER. AZURA® Pre-installation guide, V6802-FPLC... -
Page 15: Index
10. Index Index AC/DC 7 Air humidity 2 Ambient conditions 2 Computer requirements 8 Dimensions 10 Drivers 9 FPLC Systems 4 Installation site 1 Power supply 7 Shipping box 1 Sleep 9 Software 9 Technical data 10 Temperature 1 Weight 10 AZURA®...
