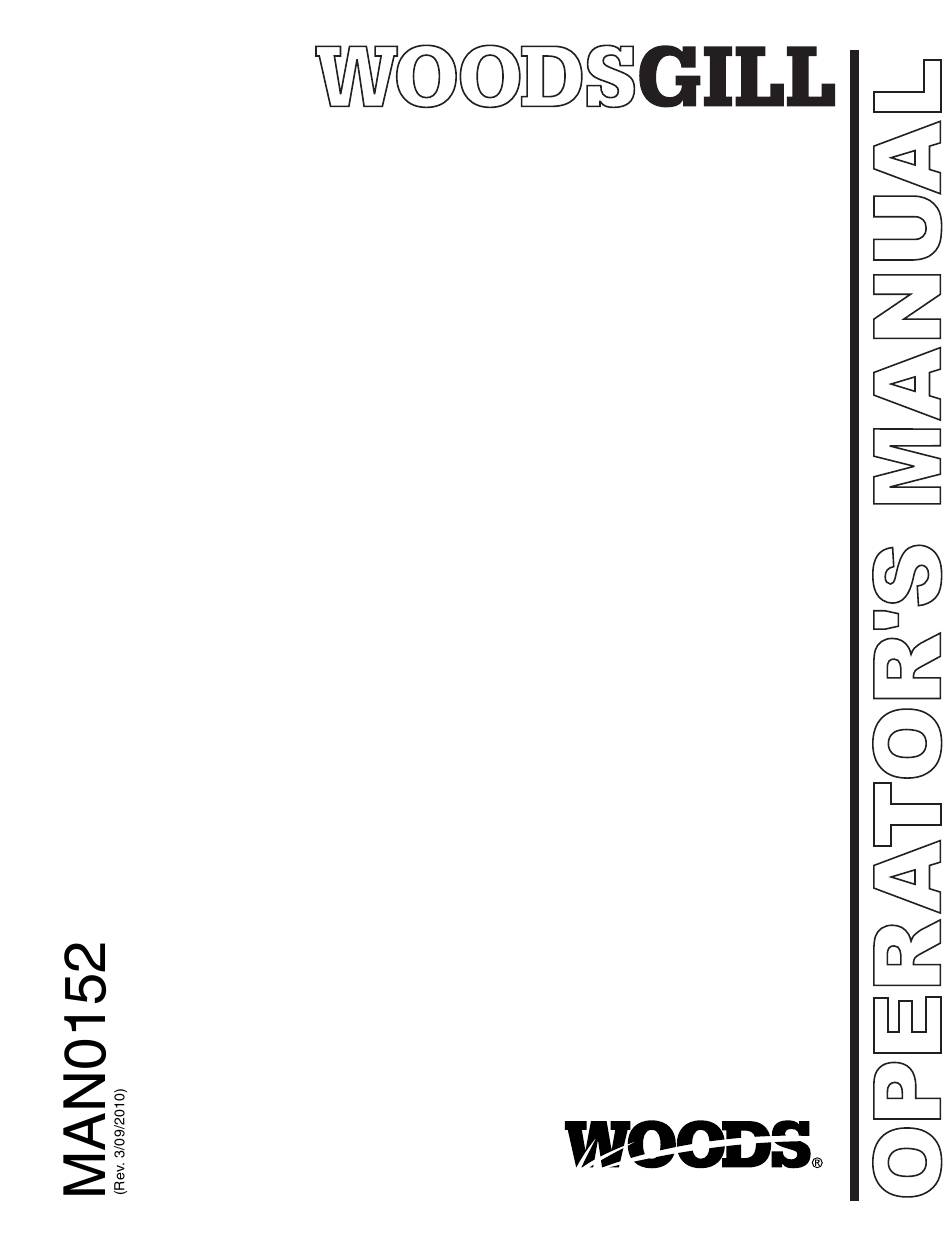

- Page 1 CORE AERATOR PL48 PL60 PL72 Tested. Proven. Unbeatable.
- Page 2 TO THE OWNER: Read this manual before operating your Woods equipment. The information presented will prepare you to do a better and safer job. Keep this manual handy for ready reference. Require all operators to read this manual carefully and become acquainted with all adjustment and operating procedures before attempting to operate.
-
Page 3: Specifications
SPECIFICATIONS Core Aerator PL48 PL60 PL72 Working Width 48" 60" 72" Overall Width 54.5" 66.5" 78.5" Number of Reels Number of Spoons Hitch Cat.I Cat.I Cat.I Tractor HP Requirement 20 - 65 HP 3 - 65 HP 30 - 65 HP Maximum Additional weight 1000 lbs. -
Page 4: Safety Rules
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! fastened. Falling off power unit can result in death Safety is a primary concern in the design and from being run over or crushed. Keep foldable manufacture of our products. Unfortunately, our ROPS system in “locked up”... -
Page 5: Maintenance
SAFETY RULES ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Watch for hidden hazards on the terrain during STORAGE operation. Block equipment securely for storage. Stop power unit and equipment immediately Keep children and bystanders away from stor- upon striking an obstruction. Turn off engine, age area. -
Page 6: Safety And Instructional Decals
SAFETY & INSTRUCTIONAL DECALS ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! Replace Immediately If Damaged! CD5938A 1 - PN 1003751 2 - PN 55122 WARNING WARNING TO AVOID SERIOUS INJURY OR DEATH: Read Operator's Manual before operating, servicing or repairing equipment. Follow all safety rules and instructions. - Page 7 Replacement safety decals can be ordered free from your Woods dealer. To locate your nearest dealer, check the Dealer Locator at www.woodsonline.com, or in the United States and Canada call 1-800-319-6637.
-
Page 8: Pre-Operation Check List
OPERATION The operator is responsible for the safe operation of PRE-OPERATION CHECK LIST this aerator. The operator must be properly trained. (OWNER'S RESPONSIBILITY) Operators should be familiar with the equipment, the ___ Review and follow all safety rules and safety tractor, and all safety practices before starting opera- decal instructions on page 4 through page 7. - Page 9 Tractor Stability 4. Adjust the lower lift arm anti-sway device to prevent the aerator from excessive side to side ARNING movement. NOTE: An optional Quick Hitch mounting kit is avail- able. See page 16 for optional Quick Hitch parts list. A minimum 20% of tractor and equipment weight must be on the tractor front wheels when attachments are in transport position.
-
Page 10: Lubrication Information
OWNER SERVICE The information in this section is written for operators who possess basic mechanical skills. If you need help, your dealer has trained service technicians available. For your protection, read and follow the safety informa- tion in this manual. ARNING NEVER GO UNDERNEATH EQUIPMENT. - Page 11 1. Remove weights from top of aerator frame if previously installed. 2. Remove water kit from shipping pallet, remove parts from inside both tanks, unstrap tanks from trays and remove bracket from trays. 3. Place two brackets (3) on top of right side of aerator frame and two clamp bars (4) below frame.
- Page 12 Replace any safety decals that are missing or not ● Sand down scratches and the edges of areas of readable. missing paint and coat with Woods spray paint of matching color (purchase from your Woods dealer). Periodically or Before Extended Storage ●...
-
Page 13: Pre-Delivery Check List
Assembly of this equipment is the responsibility of the ___ Show customer how to make adjustments. Woods dealer. It should be delivered to the owner com- ___ Point out the safety decals. Explain their mean- pletely assembled, lubricated, and adjusted for normal ing and the need to keep them in place and in operating conditions. - Page 14 CORE AERATOR 21 - COMPLETE SAFETY DECAL SET 22 - COMPLETE DECAL SET 14 Parts MAN0152 (Rev. 11/17/2006)
- Page 15 CORE AERATOR PARTS LIST PART DESCRIPTION PART DESCRIPTION 1002018 Sleeve, .81 x 1.12 x 2 54893 1.25 SAE Flat washer (PL48) 2371 * 3/4 NC Lock nut 54893 12 1.25 SAE Flat washer (PL60 & 72) 31207 * 3/4 NC 4 HHCS GR5 Spoon plate (PL48) 2522 * 3/4 Lock washer...
- Page 16 OPTIONAL QUICK HITCH KIT PART DESCRIPTION ………… Frame 1001702 Quick Hitch sleeve 1011306 WATER WEIGHT KIT (OPTIONAL) PART DESCRIPTION 1011317 Tank, 26 gal 1011303 Water tank tray 1011304 Water tank bracket 1011305 Clamp Bar 19887 * 3/8 NC x 1 HHCS GR8 565 * 16 3/8 Flat washer B0618 16 3/8 NC Stover lock nut...
-
Page 17: Bolt Torque Chart
BOLT TORQUE CHART Always tighten hardware to these values unless a different torque value or tightening procedure is listed for a specific application. Fasteners must always be replaced with the same grade as specified in the manual parts list. Always use the proper tool for tightening hardware: SAE for SAE hardware and Metric for metric hardware. Make sure fastener threads are clean and you start thread engagement properly. -
Page 18: Bolt Size Chart
BOLT SIZE CHART NOTE: Chart shows bolt thread sizes and corresponding head (wrench) sizes for standard SAE and metric bolts. SAE Bolt Thread Sizes 5/16 Metric Bolt Thread Sizes 10MM 12MM 14MM 16MM 18MM ABBREVIATIONS AG ............Agriculture NC ............ National Coarse ATF ...... -
Page 19: Warranty
DSO1260, DS1440, TS1680 Under no circumstances will this Warranty apply in the event that the product, in the good faith opinion of WOODS, has been subjected to improper operation, improper maintenance, misuse, or an accident. This Warranty does not apply in the event that the product has been materially modified or repaired by someone other than WOODS, a WOODS authorized dealer or distributor, and/or a WOODS authorized service center. - Page 20 ©2001 Woods Equipment Company. All rights reserved. WOODS, the Woods logo, and "Tested. Proven. Unbeatable." are trademarks of Woods Equipment Company. All other trademarks, trade names, or service marks not owned by Woods Equipment Company that appear in this manual are the property of their respective companies or mark holders.
