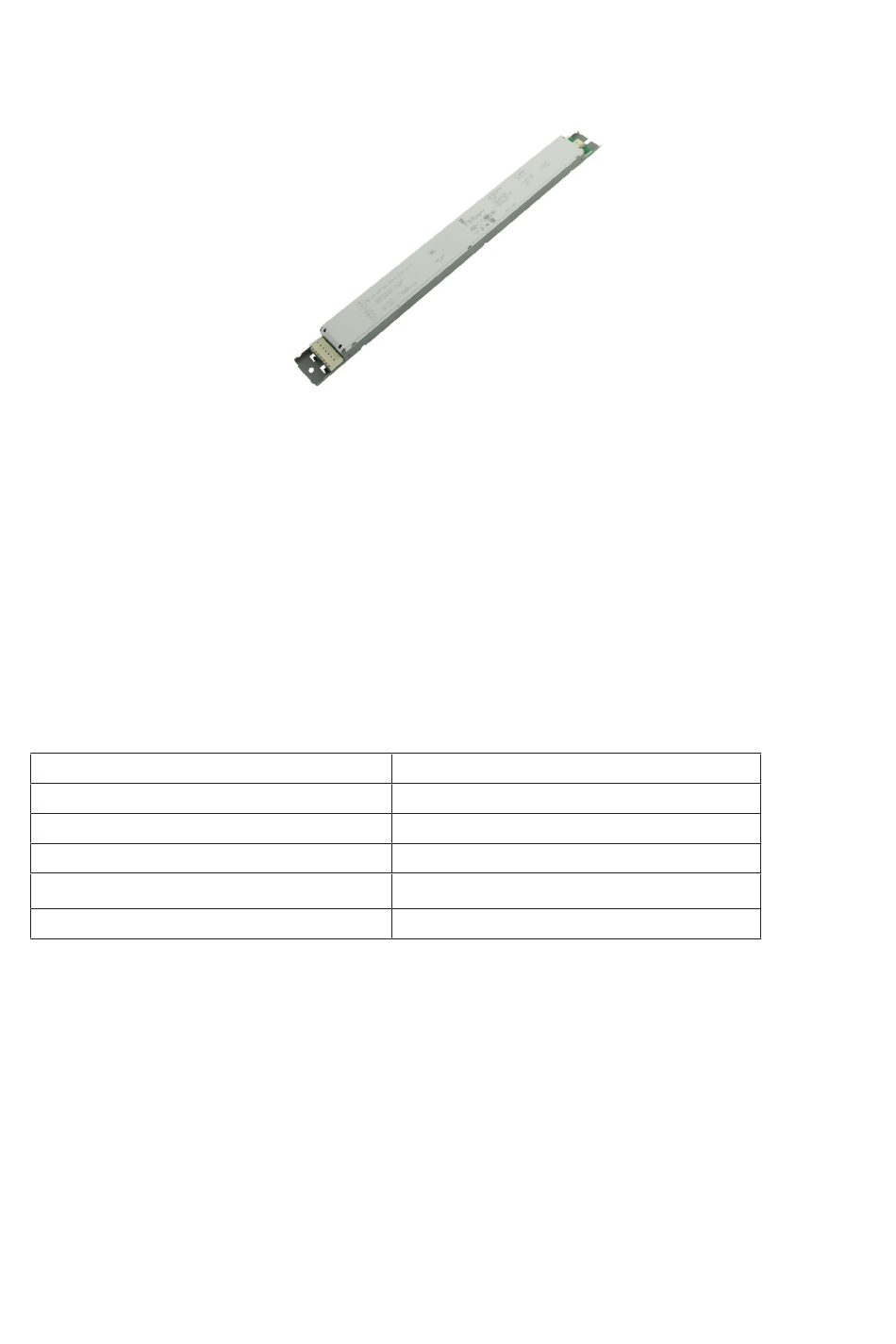

TD - Power Supply LP DALI & Switch Dim PRE (CC) - IP20
User Manual - 75W / 900 -1.800mA
1. Product Description
The TD-Power Supply LP DALI & Switch Dim PRE is a dimmable constant current LED driver for
ceiling installation. Power supply and dimmer are in one housing. It can be controlled by means
of a DALI signal as well as with commerciallly available push-buttons (push, touch or switch dim
function). The output current is adjustable from 900 - 1.800mA.
Suitable for emergency escape lighting systems acc. to EN50172
2. Specifications
Input Voltage
max. Output Power
Inrush Current
max. wire cross-section
Dimensions (L x W x H)
weight
3. Description
1. Dimmable constant current LED-driver
2. Dimming range 1-100%
3. Dimmig and switching on and off of the LEDs by means of DALI signal or commercail
available buttons (push, touch or switch dim function)
4. The dimmer has 1 output channel and can be connected by means of resistors
900mA - 1.800mA output currenct can be adjusted.
5. Suitable for emergency lighting acc. to EN 50172
6. Ideal for using linear and area lighting in office applications
7. „Low Profile" metal casing (360x30x21mm) with white cover
Item no.: NT-875-901
198-264VAC, 176-280VDC
900mA - 1.800mA (max. 75W)
34A / 193µs | 230V
max. 1,5mm²
360 x 30 x 21mm
244g
Advertisement
Table of Contents
Related Manuals for AUTLED NT-875-901
Summary of Contents for AUTLED NT-875-901
- Page 1 TD - Power Supply LP DALI & Switch Dim PRE (CC) - IP20 User Manual - 75W / 900 -1.800mA Item no.: NT-875-901 1. Product Description The TD-Power Supply LP DALI & Switch Dim PRE is a dimmable constant current LED driver for ceiling installation.
-
Page 2: Installation And Wiring
4. Dimensions Dimensions 6. Installation and wiring Wiring type and cross section Solid wire with a cross section of 0.5 – 1.5 mm². Strip 8 – 9 mm of insulation from the cables to ensure perfect operation of terminals. LED module/LED-driver/supply Loose wiring Loosen wire through twisting and pulling or using a 1 mm diameter release tool... - Page 3 Wiring guidlines - The cables should be run separately from the mains connections and mains cables to ensure good EMC conditions. - The LED wiring should be kept as short as possible to ensure good EMC. The max. secondary cable length is 2 m (4 m circuit), this applies for LED output as well as for I-select 2.
-
Page 4: Electrical Values
7. Electrical values Operating window Efficiency vs load Power factor vs load... - Page 5 THD vs load Specific technical data 1) Valid at 100 % dimming level. 2) Depending on the selected output current. 3) Depending on the DALI traffic at the interface. 4) The table only lists a number of possible operating points but does not cover each single point.
- Page 6 Maximal loading of automatic circuit breakers Calculation uses typical values from ABB series S200 as a reference. Actual values may differ due to used circuit breaker types and installation environment. Harmonic distortion in the mains supply (at 230V / 50Hz and full load) Dimming Dimming range 1 % bis 100 % Digital control with:...
-
Page 7: Interface / Communications
8. Interface / communications Control Input (DA/N, DA/L) Digital DALI signal or switchDIM can be wired on the same terminals (DA/N and DA/L). The control input is non-polar for digital control signals (DALI, DSI). The control signal is not SELV. Control cable has to be installed in accordance to the requirements of low voltage installations. - Page 8 9. Functiones Adjustable Current The output current of the LED Driver can be adjusted in a certain range. For adjustment there are three options available. Option 1: DALI Adjustment is done by masterCONFIGURATOR (see masterCONFIGURATOR documentation). Option 2: I-select 2 By inserting a suitable resistor into the I-select 2 interface, the current value can be adjusted.
- Page 9 Short-circuit behaviour In case of a short-circuit at the LED output the LED output is switched off. After restart of the LED Driver the output will be activated again. The restart can either be done via mains reset or via interface (DALI, DSI, switchDIM, ready2mains).
- Page 10 switchDIM and corridorFUNCTION are very simple tools for controlling gears with conventional pushbuttons or motion sensors. To ensure correct operation a sinusoidal mains voltage with a frequency of 50 Hz or 60 Hz is required at the control input. Special attention must be paid to achieving clear zero crossings. Serious mains faults may impair the operation of switchDIM and corridorFUNCTION.
- Page 11 The voltage-dependent input current of Driver incl. LED module is depending on the used load. The voltage-dependent no-load current of Driver (without or defect LED module) is for: AC: < 32.7 mA DC: < 2.8 mA Software / programming With appropriate software and an interface different functions can be activated and various parameters can be configured in the LED Driver.
-
Page 12: Wiring Diagram
SIGNAL DA | L NT-875-901 Der Ausgangsstrom kann mittels Einsteckwiderständen, Programmiergerät oder DALI eingestellt werden. Wird kein Widerstand oder Drahtbrücke zwischen den I-SELECT Anschlüssen gesetzt, so gilt der am Gerät niedrigste Ausgangsstrom. Wird eine Drahtbrücke am I-SELECT Anschluss gesetzt, so gilt der am Gerät höchste Ausgangsstrom. Für Einstellwerte dazwischen werden Einsteckwiderstände benötigt.
