Installation of the iGAGING® Router Table Digital
installation with screws (Hex M3).
Step 1: Attach the bracket to the back of the DRO unit
using the sharp point screws in the fastener bag.
Parts required for installation
Installation Instruction
Step 2:
Remove the lift from the router
table and crank the lift mechanism to raise
the router as high in the lift as possible.
Place two strips of VHB tape on the back of
the read unit, then use the VHB tape to
attach the read unit as high as possible to a
flat area on the lift. Be sure that the
surfaces to which the VHB tape attaches
are clean. The L-bracket on the end of the
beam should be slightly below the
underside of the insert plate. For
permanent and long lasting usage, please
use the drill and tap provided for bracket
#35-700-R4
( Battery or USB to AC Power Supply)
Advertisement
Summary of Contents for iGaging 35-700-R4

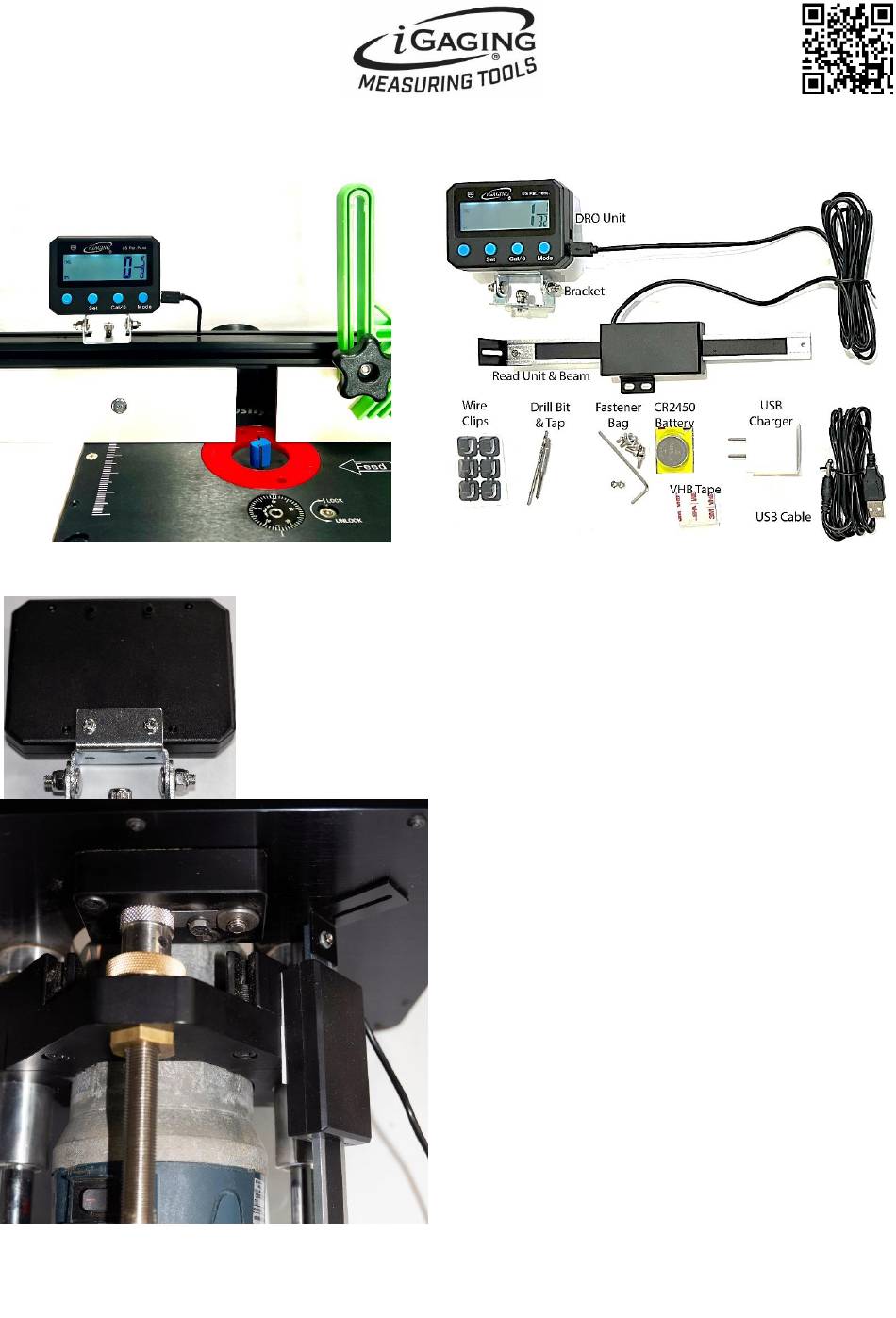

- Page 1 #35-700-R4 Installation of the iGAGING® Router Table Digital Parts required for installation ( Battery or USB to AC Power Supply) Installation Instruction Step 1: Attach the bracket to the back of the DRO unit using the sharp point screws in the fastener bag.
- Page 2 Step 3: Crank the lift mechanism to lower the router about halfway down the lift. Place one strip of VHB tape on the underside of the L-bracket, then firmly press the L-bracket and VHB tape to the underside of the insert plate. Alternatively, instead of VHB tape, you can use the included drill bit, tap, and extra screws in the fastener bag to attach the read unit to the lift and...
- Page 3 As an alternative to battery power, you can use the USB cable with the AC adopter (both provided) into an electrical outlet to power the DRO. www.iGAGING.com iGAGING – San Clemente – California Copyright© 2023 iGAGING...
