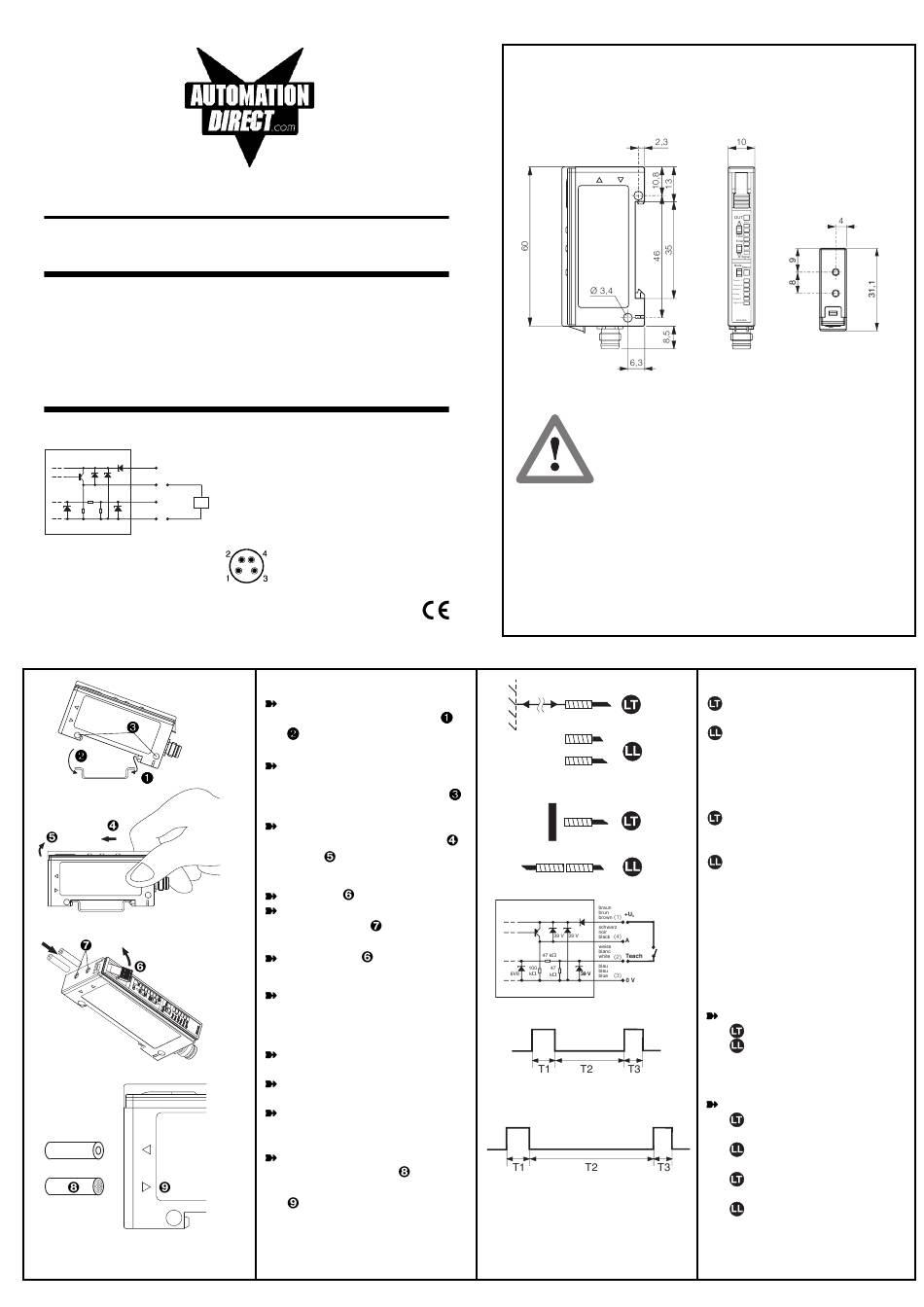

Automation Direct DFT-AP-1F Manual

Amplifier for synthetic optical fibers
PNP type - light/dark-ON output
Part number
Sensing range (on mat white paper)
with CF-DB1-20
braun
brun
(1)
brown
+U
Last
B
schwarz
charge
noir
(4) load
39 V 39 V
black
A
weiss
blanc
W
47 k (2)
white
Teach
R
blau
100 47
bleu
W
W
6V8 k k 39 V 39 V (3)
blue
0 V
Pin assignment (device) :
COVADC119
DFT-AP-1F
200 mm
Wiring
U 10 ... 30 VDC
B
200 mA max.
I
A
Housing PBTP
Device mounting
Mounting of the device is most
easily effected by snapping
onto a top-hat rail (according
to DIN / EN 50022).
Alternatively, fixing can be
effected using M3 screws
through the fixing holes
provided.
To remove the device from the rail,
push towards the optical fiber
and lift .
Fixing the optical fibers
Lift catch .
Insert the optical fibers through
the two holes provided into
the device.
Lower catch .
Important:
When inserting the optical fibers,
the resistance of the device's in-
ternal O-ring seal must be over-
come.
The optical fibers must be fed
right to the stop without fail.
The optical fibers must not be
crushed.
The sequence (emitter
receiver) is usually immaterial,
however:
With coaxial optical fibers, the
optical fiber bundle
connected on the receiver side
. The emitter and receiver
openings are marked with arrows
on the housing.
Dimensions:
/
,
/
must be
These proximity switches must not be used
in applications where the safety of people is
dependent on their functioning. Terms of
delivery and rights to change design reserved.
Max. distance / sensitivity
Remove target and background.
Execute Teach 1.
Place emitter and receiver so that
no light is transmitted. Execute
Teach 1.
Min. distance / sensitivity
Place fiber-optic head about 5 mm
from white paper. Execute Teach
1.
Place emitter and receiver in
direct contact so that a maximum
of light is transmitted. Execute
Teach 1.
Remote teach launching
Launch by H signals or by closing
a contact at the "Teach" input.
Teach 1
: Remove target.
: Position target.
Send pulses T1 and T3.
Timing: T1, T3 = 0.5 ... 2 sec
T2 = 1.5 ... 2 sec
Teach 2
: Position target and back-
ground.
: Remove target.
Send pulse T1, then
: Remove target, leave back-
ground in position.
: Position target.
Send pulse T3.
Timing: T1, T3 = 0.5 ... 2 sec
T2 ≥ ≥ ≥ ≥ ≥ 3 sec
