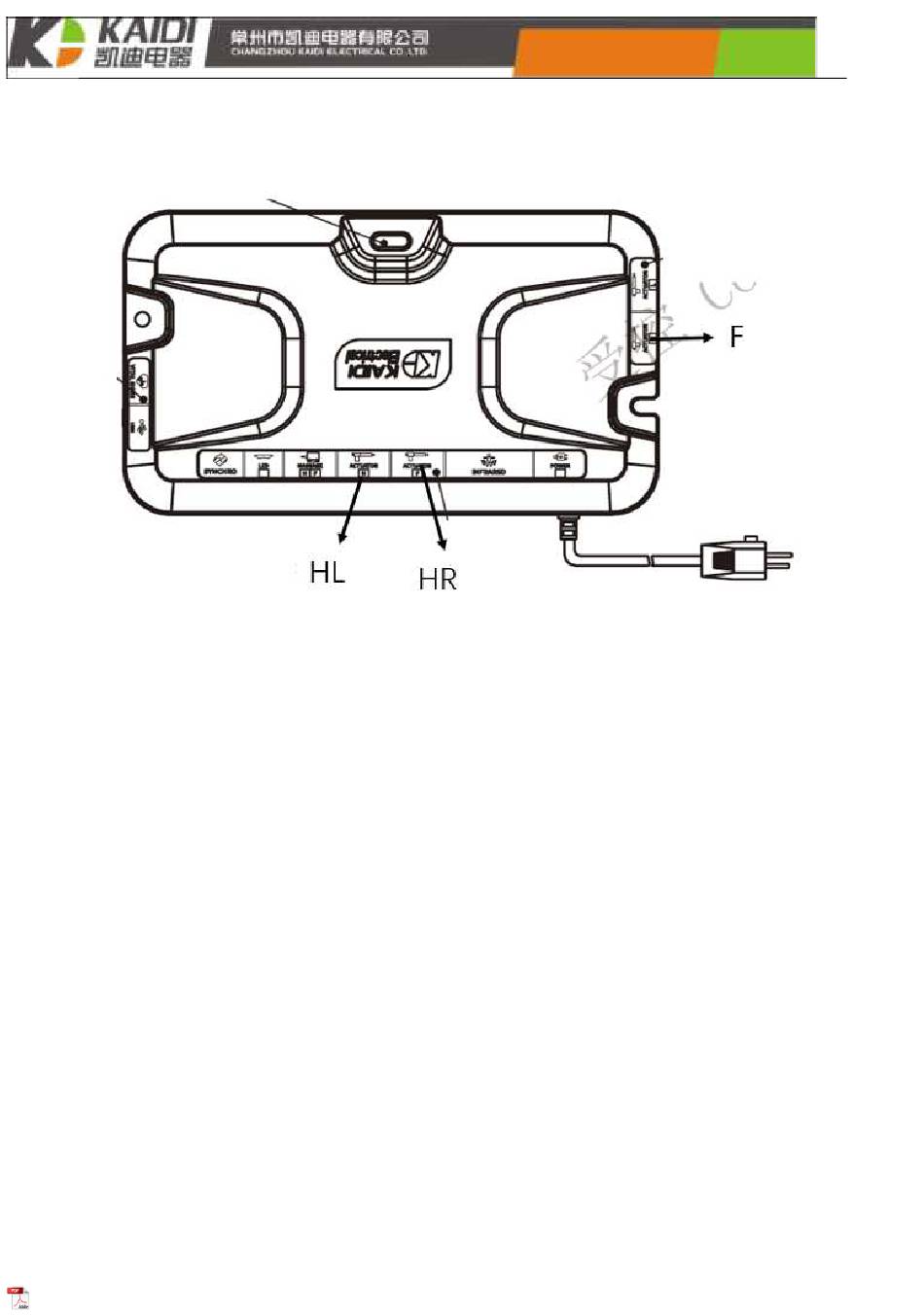

- Page 1 KDDYM002A+ KDHM003A+ Function specification 1. System connection diagram 1 ...
- Page 2 2. Manual key function description Hand controller 1 2 ...
- Page 3 Hand controller 2 3 ...
- Page 4 Hand controller 1 function： Number Name function comment Head push rod (HL) Press K1, push rod out, lift release stop; Press push retract, release stop; Leg push rod (F) Press K3, push rod out, lift release stop; Press push retract, release stop;...
- Page 5 the memory position. FLAT Long press K6, 1S after the leg and back push rod back, release and stop; flashlight Press K7, the flashlight in front of the manual controller will light up, release and turn off; 5 ...
- Page 6 Hand controller 2 function： 序 名称 功能 备注 号 Head push rod (HR) Press K1, push rod out, lift release stop; Press push retract, release stop; Leg push rod (F) Press K3, push rod out, lift release stop; Press push retract, release stop;...
- Page 7 2 do not interfere with the memory position. FLAT Long press K6, 1S after the leg and back push rod back, release and stop; flashlight Press K7, the flashlight in front of the manual controller will light up, release and turn off; ...
- Page 8 3.Pairing/unpairing methods function definition operating mode comment button Pairing method: Long press the pairing button of the control box for 3 seconds, and the control box will enter the pairing state Pairing duration: The pairing key blinks for 15 seconds Method 1 Pairing action: During the manual control press the head rise button and leg rise button, keep 3S Successful pairing performance: the control box buzzes once, The manual is and the pairing key stops blinking; paired with pair the control Pairing method: 5 seconds after the power off the control box box, power it on again, and the control box enters the pairing state; Pairing duration: The pairing button starts blinking for 15S Method 2 Pairing action: Press the head rise button and leg rise button by the hand controller for 3S during this period Successful pairing performance: the control box buzzes once, and the pairing key stops blinking; Unpairing method: Long press the pairing button of the control box for 3 seconds, and the control box will enter the ...
- Page 9 Control box Recovery method: Press and hold the pairing button of the restore control box for 3 seconds to enter the pairing state factory Recovery duration: The pair key starts blinking for 15 seconds Settings Method 1 Recovery action: During the manual control press the head up (including button and leg down button, hold for 3S preset Successful recovery performance: the control box buzzes positions) once, and the pairing key stops blinking; factory Recovery method: After the power supply of the control box data reset is disconnected for 5 seconds, power on the control box again, and the control box enters the pairing state Recovery time: The pairing button starts blinking for 15S Method 2 Recovery action: During the manual control press the head up button and leg down button, hold for 3S Successful recovery performance: the control box buzzes once, and the pairing key stops blinking; comment： 1. Manual controller 1 and manual controller 2 have the same method of pairing, unpairing and restoring factory Settings;...
- Page 10 is true for manual 2; 4. matters need attention 1、Before use, please be sure to correctly connect according to the system connection diagram, and then switch on the main power supply; 2、Children, the elderly and the disabled, please use under supervision; 3、Do not insert or remove any cable when the power is on. This may cause operation failure. In this case, disconnect the main power supply and reconnect it in about 30 seconds.
